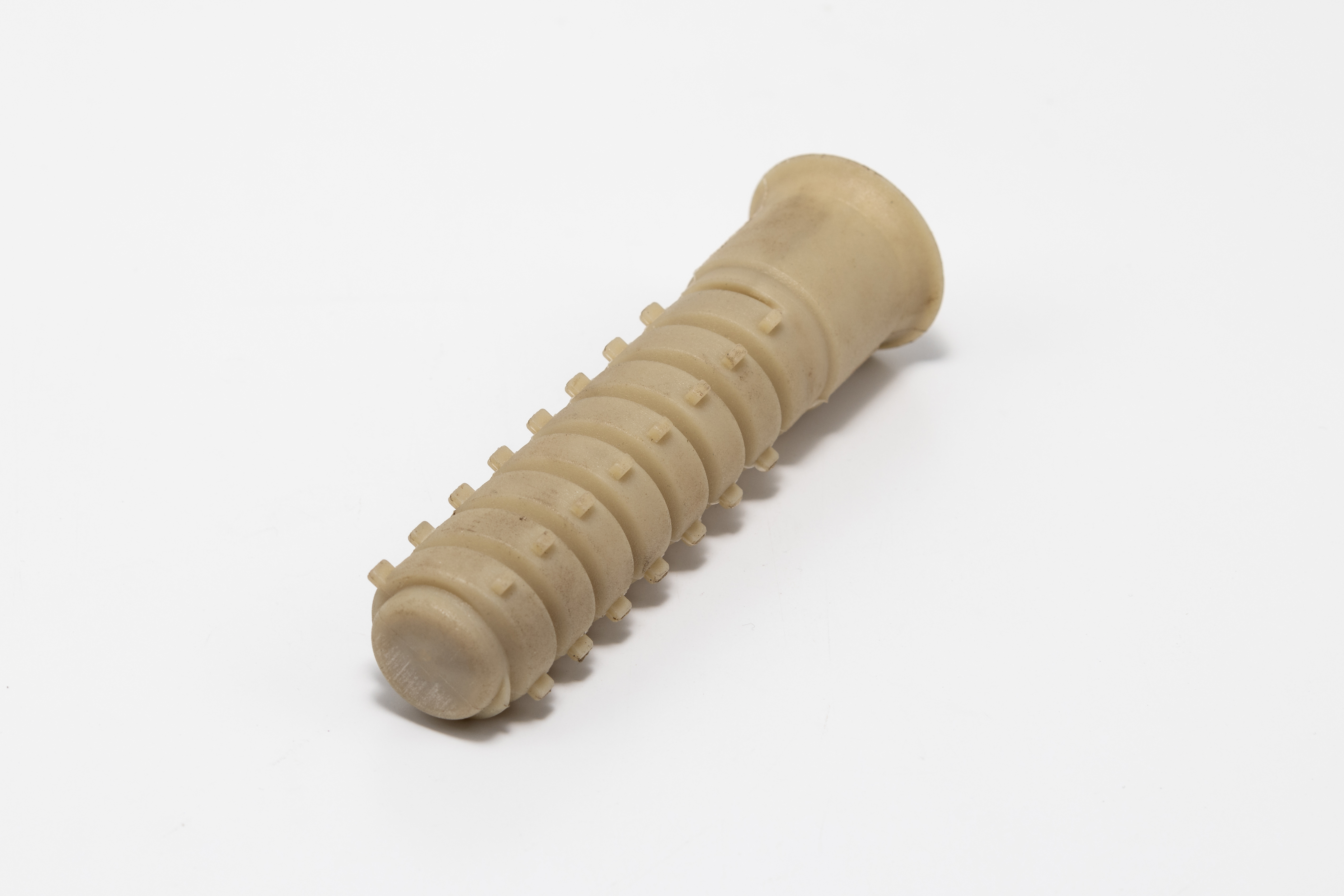

Rail Plastic Dowel PA6 PA66 Nylon
Rail Plastic Dowel PA6 PA66 Nylon - Concrete Sleeper Threaded Insert for Railway Fastening System
Product Overview
Our Rail Plastic Dowel PA6 PA66 Nylon, also widely known as railway threaded plastic insert, concrete sleeper plastic sleeve, and rail fastening nylon dowel, is a core embedded component specially designed for railway concrete sleeper fastening systems. Engineered for pre-embedding in prestressed concrete sleepers, this precision-molded nylon dowel features integral internal threaded structures, perfectly matching railway screw spikes and rail bolts to form a stable, durable, and high-safety railway track fixing system.
As an indispensable foundational part of modern rail fastening infrastructure, it effectively connects rail fasteners, elastic clips, and concrete sleepers, bearing track dynamic load, vibration impact, and environmental erosion, ensuring the long-term stable operation of railway tracks. Available in pure PA6, pure PA66, and PA66+30% glass fiber reinforced specifications, our dowels fully adapt to light-duty, medium-duty, and heavy-haul railway line requirements, covering ordinary speed railways, high-speed railways, urban subways, light rails, and industrial railway sidings worldwide.
Core Product Definition & Working Principle
The rail plastic nylon dowel is a rigid engineering plastic embedded part pre-cast inside concrete sleepers during sleeper production. Different from ordinary plastic fasteners, this product is customized with standard internal threads that precisely cooperate with rail screw spikes. After the concrete sleeper molding is completed, the dowel is firmly fixed inside the concrete base without loosening or falling off.
During track installation and maintenance, construction workers can directly screw rail screw spikes into the internal threads of the nylon dowel. With the excellent friction locking force and tensile resistance of nylon materials, the dowel transmits and disperses the vertical pressure, lateral thrust, and longitudinal traction generated by train operation between the rail and concrete sleeper. It solves the common problems of metal embedded parts such as easy rust, electric conduction, thread slipping, and concrete cracking, becoming the optimal matching accessory for SKL, Vossloh, and other mainstream railway fastening systems.
PA6 & PA66 Nylon Material Advantages & Performance Differentiation
The performance of railway plastic dowels depends entirely on raw material quality, and we strictly adopt high-purity PA6 and PA66 nylon engineering plastics, with optional glass fiber reinforcement modification, to meet diverse railway engineering standards worldwide. Both materials belong to high-performance polyamide materials, featuring high toughness, wear resistance, aging resistance, and insulation, but have targeted performance differences for different railway working conditions.
| Material Type |
Key Characteristics |
Recommended Applications |
| PA6 Nylon |
Excellent fluidity, strong moldability, good toughness, outstanding low-temperature resistance and impact resistance |
Conventional railway lines, urban light rails, and subway projects in temperate and frigid regions |
| PA66 Nylon |
Higher heat resistance (melting point 260°C-300°C), tensile strength (150MPa+), compressive strength, and chemical corrosion resistance |
Heavy-haul railways, high-speed railways, and port industrial railway lines |
| PA66 + 30% Glass Fiber |
Tensile strength over 170MPa, significantly improved hardness and extrusion resistance |
High-demand applications with large traffic volume and heavy load |
All our nylon dowels abandon recycled materials and impure raw materials, ensuring uniform material density, smooth thread surface, no burrs, and stable overall performance. The modified glass fiber reinforced formula further enhances the product's compression resistance, anti-deformation ability, and long-term fatigue resistance, avoiding thread deformation, sliding wire, and hole expansion after long-term load operation.
Key Structural & Functional Features
- Precision Standard Thread Design: Internal thread adopts international railway standard tooth type with precise tooth pitch and depth, ensuring perfect fit with standard rail screw spikes.
- Anti-Loosening & Anti-Shedding Embedded Structure: Special anti-slip groove and convex point design forms strong mechanical occlusion with concrete base.
- Excellent Electrical Insulation Performance: Insulation resistance ≥1*10¹⁰Ω, effectively isolating current conduction between rail and concrete sleeper.
- Superior Environmental Adaptability: Maintains stable performance in temperature range of -40°C to +120°C, resistant to various environmental conditions.
- Vibration Damping & Noise Reduction: Good elastic toughness and buffering performance absorbs and disperses vibration energy.
- Lightweight & Easy Construction: Compared to metal embedded sleeves, offers easier transport, stacking, and installation.
- Durable & Long Service Life: High wear resistance, fatigue resistance, and anti-creep performance withstands millions of cyclic vibrations.
Product Technical Specifications & Customization
Our rail PA6/PA66 nylon dowels comply with international railway industry standards such as DIN, NF, and AREMA, and support full-size customized production according to customer drawings and samples. Conventional specifications cover all mainstream models of global railway sleeper embedded sleeves, including standard thread sizes, outer diameter, length, and groove types.
The product color can be customized according to customer requirements (black, white, gray, and other conventional colors), and the surface can be treated with anti-aging and anti-ultraviolet reinforcement to adapt to high-intensity outdoor exposure environments.
All products undergo strict factory testing, including tensile test, pull-out force test, compression deformation test, insulation resistance test, low-temperature impact test, and aging test. We support third-party authoritative testing such as SGS, and provide complete product inspection reports and qualification certificates.
Application Scenarios
This PA6/PA66 nylon rail plastic dowel is widely used in various railway concrete sleeper fastening systems, covering multiple fields of rail transit infrastructure. It is suitable for:
- High-speed railway main lines
- Ordinary speed passenger and freight railways
- Heavy-haul freight railways
- Urban subway transit and light rail
- Port and mine industrial railways
- Highway railway crossings
Product Advantages in Market & Engineering Application
Our PA6/PA66 nylon reinforced plastic dowels overcome the limitations of traditional metal embedded sleeves (rust, electric conduction, poor shock resistance) and ordinary low-quality plastic dowels (low strength, thread slipping, short service life). With high strength, high insulation, strong weather resistance, stable fastening performance, and low maintenance cost, they have become the mainstream choice for modern railway engineering.
We adopt precision injection molding production technology with strict raw material screening and full-process quality control. Each batch of products has stable performance, consistent size, and excellent interchangeability, universally adapting to global railway standard systems.
Packaging & Supply Service
We provide professional export-standard packaging using woven bags and wooden pallet integrated packaging, ensuring waterproof, moisture-proof, shockproof, and compression-resistant protection during long-distance transportation.
With sufficient inventory and stable production capacity (monthly output up to 600 tons), we support bulk wholesale, customized processing, and long-term fixed-point supply. Our one-stop services include product customization, technical consultation, quality testing, and after-sales guarantee, adhering to high-quality export standards.
