Thread Plastic Dowel Sleeve PA6 PA66 Nylon
Rail Plastic Dowel PA6 PA66 Nylon - Concrete Sleeper Threaded Insert for Railway Fastening System
Product Overview
Our Rail Plastic Dowel PA6 PA66 Nylon, also known as railway threaded plastic insert, concrete sleeper plastic sleeve, and rail fastening nylon dowel, is a core embedded component specially designed for railway concrete sleeper fastening systems. Engineered for pre-embedding in prestressed concrete sleepers, this precision-molded nylon dowel features integral internal threaded structures that perfectly match railway screw spikes and rail bolts to form a stable, durable, and high-safety railway track fixing system.
As an indispensable foundational part of modern rail fastening infrastructure, it effectively connects rail fasteners, elastic clips, and concrete sleepers, bearing track dynamic load, vibration impact, and environmental erosion to ensure long-term stable operation of railway tracks. Available in pure PA6, pure PA66, and PA66+30% glass fiber reinforced specifications, our dowels adapt to light-duty, medium-duty, and heavy-haul railway line requirements, covering ordinary speed railways, high-speed railways, urban subways, light rails, and industrial railway sidings worldwide.
Core Definition & Working Principle
The rail plastic nylon dowel is a rigid engineering plastic embedded part pre-cast inside concrete sleepers during production. Unlike ordinary plastic fasteners, this product features standard internal threads that precisely cooperate with rail screw spikes. After concrete sleeper molding, the dowel becomes firmly fixed within the concrete base without loosening or falling off.
During track installation and maintenance, construction workers directly screw rail spikes into the nylon dowel's internal threads. With nylon's excellent friction locking force and tensile resistance, the dowel transmits and disperses vertical pressure, lateral thrust, and longitudinal traction generated by train operation between the rail and concrete sleeper. This solves common problems of metal embedded parts such as rust, electrical conduction, thread slipping, and concrete cracking, making it the optimal accessory for SKL, Vossloh, and other mainstream railway fastening systems.
Material Advantages & Performance
PA6 Nylon Dowels
Excellent fluidity, strong moldability, and good toughness with outstanding low-temperature resistance and impact resistance. Maintains stable mechanical properties in extreme low-temperature environments without brittle cracking. Suitable for conventional railway lines, urban light rails, and subway projects in temperate and frigid regions. Good ductility effectively buffers instantaneous vibration impact from train passing, protecting concrete sleepers from damage and reducing track operation noise.
PA66 Nylon Dowels
Upgraded high-specification products with higher molecular density and structural stability. Higher heat resistance, tensile strength, and compressive strength with melting point up to 260°C-300°C. Excellent high-temperature dimensional stability and stronger chemical corrosion resistance. Pure PA66 has tensile strength over 150MPa, while PA66+30% glass fiber reinforced version reaches over 170MPa. Preferred material for heavy-haul railways, high-speed railways, and port industrial railway lines with large traffic volume and heavy load.
All our nylon dowels use high-purity materials without recycled or impure raw materials, ensuring uniform density, smooth thread surfaces, no burrs, and stable performance. Modified glass fiber reinforced formulas enhance compression resistance, anti-deformation ability, and long-term fatigue resistance.
Key Features
- Precision Standard Thread Design: Internal thread adopts international railway standard tooth type with precise pitch and depth, ensuring perfect fit with standard rail screw spikes. Smooth, wear-resistant thread surface provides high screw-in and pull-out resistance, preventing screw loosening from long-term vibration.

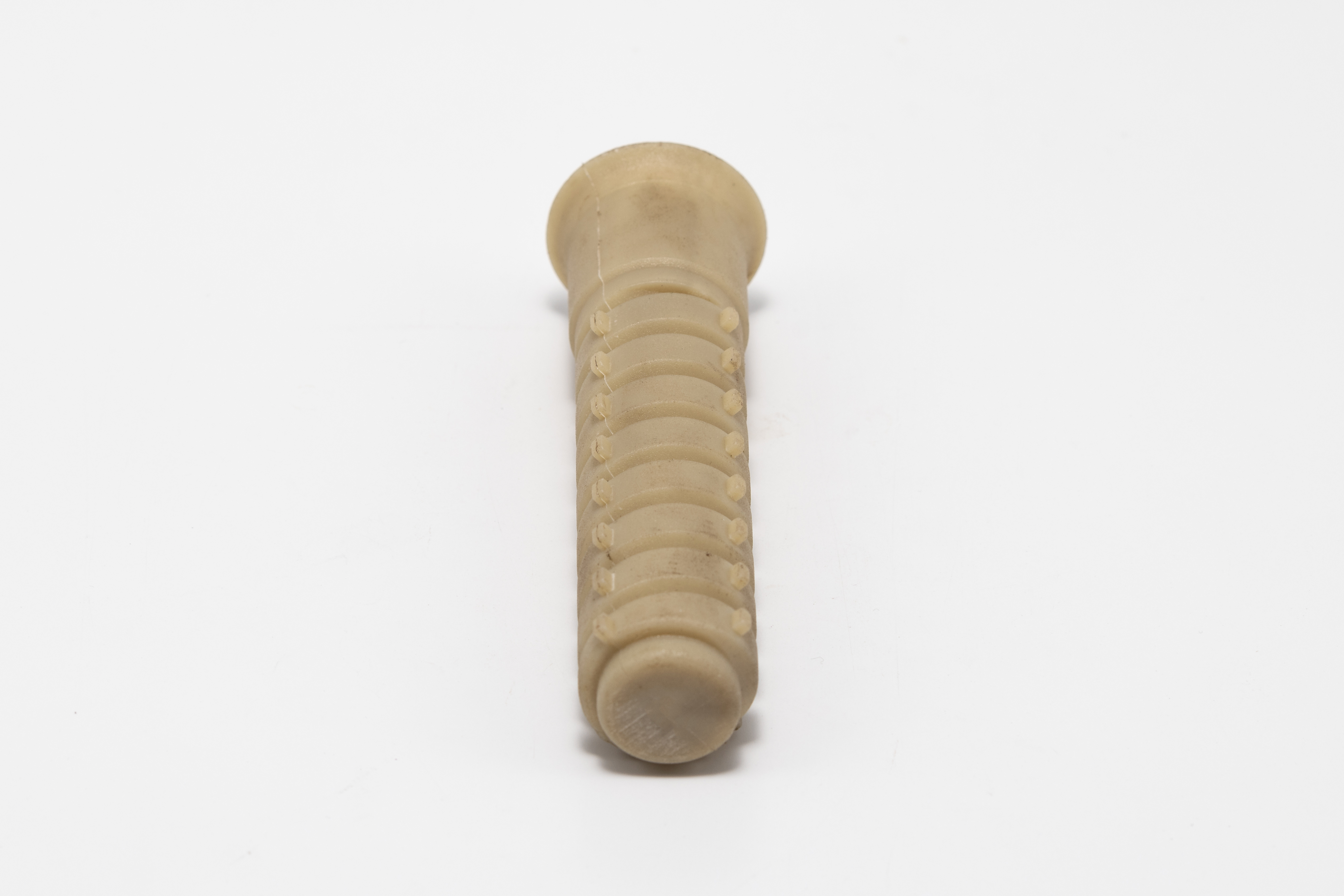

- Anti-Loosening Embedded Structure: Outer wall features special anti-slip groove and convex point design. After pre-embedding with concrete, forms strong mechanical occlusion to resist longitudinal pulling and lateral shear forces. No displacement or falling off during long-term vibration and train impact.
- Excellent Electrical Insulation: Non-metallic insulating material with insulation resistance ≥1*10¹⁰Ω. Effectively isolates current conduction between rail and concrete sleeper, preventing track stray current corrosion and protecting railway signal systems and electrical equipment.
- Superior Environmental Adaptability: Excellent weather resistance, aging resistance, and chemical corrosion resistance. Resists rainwater, snow, frost, seawater salt spray, industrial acid-base gas, and road deicing agents. Stable performance from -40°C to +120°C.
- Vibration Damping & Noise Reduction: Good elastic toughness and buffering performance absorbs and disperses vibration energy from train wheel-rail friction and impact. Reduces track vibration transmission, protects concrete sleepers and roadbed structures, extends infrastructure lifespan, and reduces operation noise.
- Lightweight & Easy Construction: Lightweight design facilitates transport, stacking, and installation. Simple pre-embedding operation improves concrete sleeper production efficiency. No rust or screw locking during maintenance enables convenient disassembly and reduces maintenance costs.
- Durable & Long Service Life: High wear resistance, fatigue resistance, and anti-creep performance withstands millions of cyclic vibrations and load impacts without failure. Service life synchronized with concrete sleepers reduces long-term operation costs.
Technical Specifications & Customization
Our rail PA6/PA66 nylon dowels comply with international railway industry standards (DIN, NF, AREMA) and support full-size customized production according to customer drawings and samples. Conventional specifications cover all mainstream models of global railway sleeper embedded sleeves, including standard thread sizes, outer diameter, length, and groove types.
Product color can be customized (black, white, gray, etc.) with optional anti-aging and anti-ultraviolet surface treatments for high-intensity outdoor exposure environments. All products undergo strict factory testing including tensile tests, pull-out force tests, compression deformation tests, insulation resistance tests, low-temperature impact tests, and aging tests.
Qualified products meet or exceed international railway engineering standards with no thread slip or dowel falling off under extreme load conditions. We support third-party authoritative testing (SGS) and provide complete product inspection reports and qualification certificates.
Application Scenarios
Widely used in various railway concrete sleeper fastening systems across multiple rail transit infrastructure fields:
- High-speed railway main lines
- Ordinary speed passenger and freight railways
- Heavy-haul freight railways
- Urban subway transit systems
- Urban light rail networks
- Port and mine industrial railways
- Highway railway crossings
Perfectly matched with elastic rail fasteners, screw spike fastening systems, and various rail clip fixing structures. Universal core accessory for global railway track construction, renovation, and maintenance projects.
Packaging & Supply Service
Professional export-standard packaging using woven bags and wooden pallet integrated packaging. Waterproof, moisture-proof, shockproof, and compression-resistant design ensures no damage or deformation during long-distance sea and land transportation.
We maintain sufficient inventory and stable production capacity with monthly output up to 600 tons. Support bulk wholesale, customized processing, and long-term fixed-point supply. One-stop services include product customization, technical consultation, quality testing, and after-sales guarantee.
Adhering to high-quality export standards to serve global railway engineering contractors, rail fastener suppliers, and railway infrastructure construction enterprises.
