Material: Ductile Iron

Color: Black

Highlight:

Ductile Iron Rail Tie Plate

Corrosion Resistant Railway Base Plate

Ductile Iron Rail Fastening Plate

Basic Infomation

Place of Origin: China

Brand Name: Sudelan

Certification: ISO9001

Payment & Shipping Terms

Payment Terms: L/C,D/A,D/P,T/T

Gallery

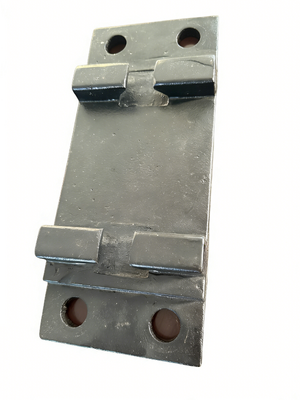

Ductile Iron Rail Tie Plate Corrosion Resistance Railway Base Plate For Rail Fastening

Product Description

Base Plate for Railway Applications

A base plate is a critical structural component that serves as the interface between the rail and sleeper (or concrete slab) in railway systems. This essential element of rail fastening systems distributes wheel loads, maintains track gauge, and provides a stable foundation for rail operations.

Primary Functions

Load Distribution: Spreads concentrated wheel loads from the rail over a larger sleeper area, preventing damage to sleeper materials
Gauge Maintenance: Provides precise mounting surfaces for rail fastening components to ensure consistent track gauge
Rail Support: Supports the rail foot and prevents tilting or rotation under operational loads
Fastening Platform: Contains holes and features for attaching rail clips, bolts, and other fastening components

Material Specifications

Cast Iron

Traditional material offering excellent strength and wear resistance for standard applications

Ductile Iron

Modern material with enhanced impact resistance and superior fatigue strength

Steel

Heavy-duty applications utilizing welded or forged construction for maximum durability

Composite Materials

Emerging fiber-reinforced polymers providing lightweight and corrosion-resistant solutions

Design Features

Rail Seat: Contoured surface that securely cradles the rail foot
Fastening Holes: Precision-drilled holes for screw spikes, bolts, or clip anchors
Shoulders: Raised edges that maintain proper rail alignment
Ribs or Stiffeners: Structural reinforcements to resist bending and deformation under load

Technical Properties

Property	Specification Range
Thickness	10-25 mm (application dependent)
Width	150-250 mm (matched to sleeper dimensions)
Length	200-300 mm (accommodates rail fastening spacing)
Surface Treatment	Galvanized or coated for superior corrosion protection

Applications

Concrete Sleeper Tracks

Most common application in modern railway infrastructure systems

Timber Sleeper Tracks

Traditional systems still widely used in various railway networks

Ballastless Track Systems

Direct fixation systems installed on concrete slabs

Turnouts and Crossings

Specialized designs for complex track geometry applications

Base plate material and design selection depends on critical factors including axle load capacity, train operating speeds, track type specifications, and environmental conditions. The primary objective is to ensure long-term stability and minimize maintenance requirements throughout the railway lifecycle.
