Black Single Coil Locking Washer For Bolt Different Diameters

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: SUYU45
Minimum Order Quantity: 10000pcs
Price: Negociable
Packaging Details: Woven bags and wooden pallets, wooden cases
Delivery Time: 15-30 days after placing formal order
Payment Terms: T/T, 30% in advance
Supply Ability: 800 Tons Per Month
Product: Lock Washer Material: 65Mn Or 70#
Color: Black Standard: A.R.E.A 1967
Application: For Bolt Diamete 3/4 7/8 Etc. OEM: Support OEM
High Light:

spring lock washer

,

flat washer

Black Single Coil Locking Washer For Bolt Different Diameters



SUYU-Lock washers secure bolted joints with tension instead of friction. It is a high quality product with documented success in many industries worldwide.

SUYU-Lock wedge lock washers have been rigorously tested and approved by independent institutes as well as certification authorities. SUYU-Lock wedge lock washers are used in numerous industries such as: energy, transportation, offshore, mining and quarrying, construction and bridge building, manufacturing and processing, ship building, forestry and agriculture, heavy vehicles, and military. Our washers are approved by several industry standards and specified by numerous international companies. Over the operational life cycle, SUYU-Lock wedge lock washers give increased operational reliability and lower maintenance costs while significantly reducing the risks of production stops, accidents and warranty claims.





Split lock washers provide greater bolt tensioning for tighter assemblies and provide protection against loosening resulting from vibration. Lock washers can be used with a standard washer to provide uniform bearing surface. These washers are intended for general use.



Specifications



Type Demension Weight (Kg/Mpcs)
Spring wsaherFe6(UIC864-3) 25 90
Spring washer AREA67 7/8 90.55
Spring washer AREA67 1 152.33
Spring washer AREA67 1-1/8 187.65
Plain pattern washer 7/8 70.46
Plain pattern washer 1 78.03
Plain pattern washer 1-1/8 85.32
Flat washer ULS6 47/23/4 41
Flat washer ULS6 50/25/4




Spring Washers

for Bolt Diameter Inches

Applied Load

Pounds

Platens Released From

Loads By Distances Inches

Minumum Reactive

Spring Pressure Pounds

 3/4 200000 0.25 2500
 7/8 200000 0.25 2500
1   200000 0.30 5000
  1/16 200000 0.30 5000
 1/8 200000 0.30 5000
 1/4 200000 0.30 5000



Dimensions

Bolt Size A B C Weight in Pounds Per 100 Pieces
Inside Diameter Max Outside Diameter Max Thickness
Min
1/4 0.260 0.487 .062 .24
5/16 0.322 0.583 0.078 .40
3/8 0.385 0.680 0.094 .60
7/16 0.450 0.776 0.109 1
1/2 0.512 0.869 0.125 1.3
5/8 0.641 1.073 0.156 2.4
3/4 0.766 1.265 0.188 4.3
7/8 0.894 1.459 0.219 6.0
1 1.024 1.656 0.250 8.8
1-1/8 1.153 1.847 0.281 12
1-1/4 1.280 2.036 0.312 16
1-3/8 1.408 2.219 0.344 21.9
1-1/2 1.534 2.419 0.375 28.2
1-3/4 1.789 2.679 0.389 30.35
2 2.039 2.936 0.422 32.50
2-1/4 2.293 3.221 0.440 39
2-1/2 2.543 3.471 0.440 45
2-3/4 2.793 3.824 0.458 50
3 3.043 4.074 0.458 56

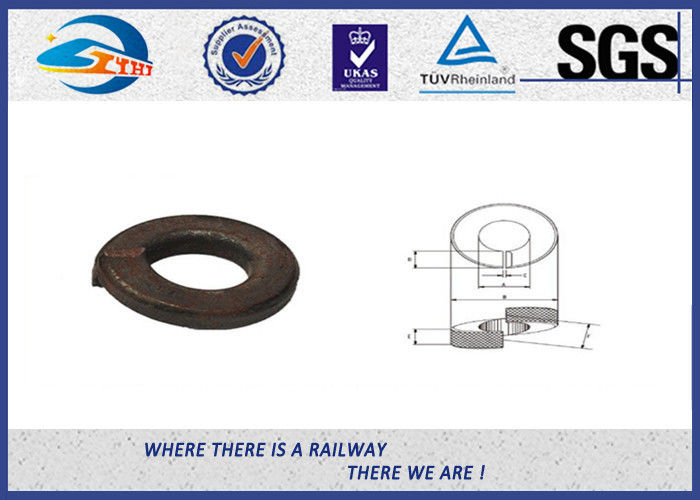

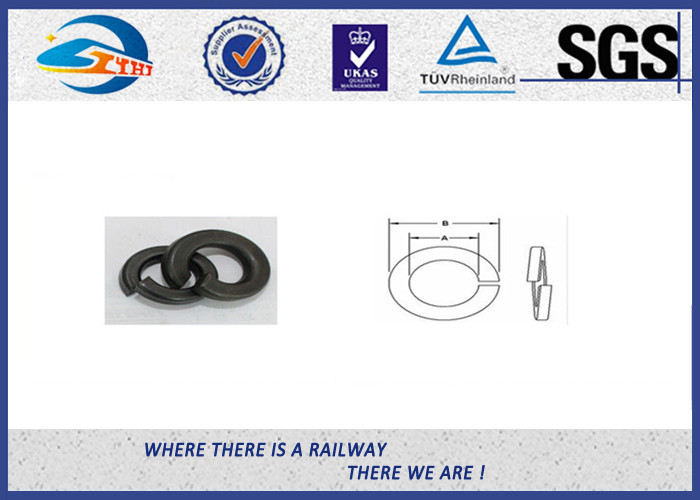

Lock Washer Photos
