| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | SUYU101 |
| Minimum Order Quantity: | 10000pcs |
| Price: | Negociable |
| Packaging Details: | Woven bags and wooden pallets, wooden cases |
| Delivery Time: | 15-30 Days after Receiving PO |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 200 Tons / Week |

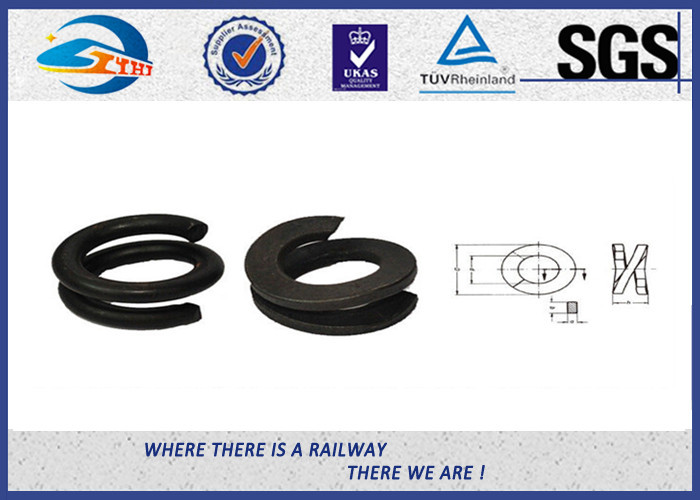

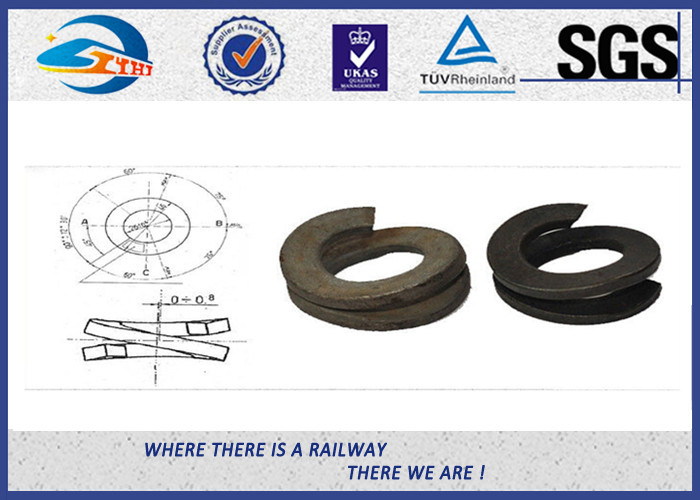

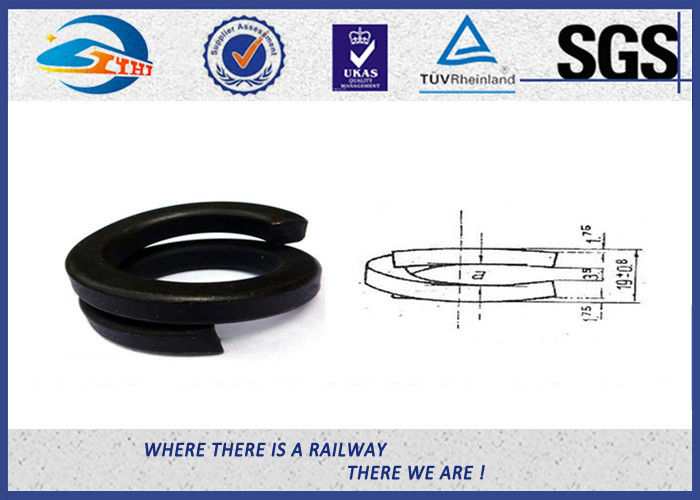

| Product: | Double Coil Spring Washer | Material: | 65Mn Or 70# |
|---|---|---|---|
| Color: | Black | Unit Weight: | From 0.09kg To 0.145kg |
| Outer Diameter: | From 39mm To 52mm | Inner Diameter: | From 21mm To 28mm |
| High Light: | spring lock washer,spring steel washers |
||
SUYU-Double Coil Spring Washers have been rigorously tested and approved by independent institutes as well as certification authorities. SUYU-Double Coil Spring Washers are used in numerous industries such as: energy, transportation, offshore, mining and quarrying, construction and bridge building, manufacturing and processing, ship building, forestry and agriculture, heavy vehicles, and military. Our washers are approved by several industry standards and specified by numerous international companies. Over the operational life cycle, our washers give increased operational reliability and lower maintenance costs while significantly reducing the risks of production stops, accidents and warranty claims.
| Item | d | D | a | b | h | KG |
| Fe6 | 25 | 45 | 6 | 10 | 19 | 0.09 |
| Fe7 | 25 | 45 | 6 | 10 | 11 | 0.05 |
| Fe8 | 21 | 39 | 5 | 9 | 16 | 0.058 |
| Fe15 | 28 | 52 | 6 | 12 | 19 | 0.126 |
| Fe19 | 26 | 46 | 6 | 10 | 25.5 | 0.145 |
