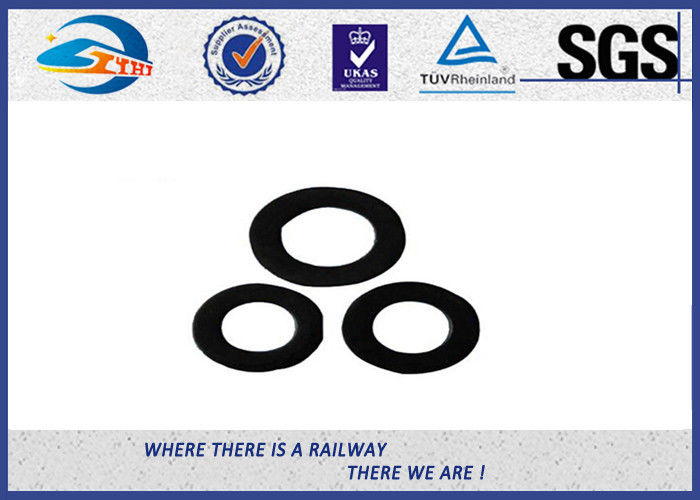

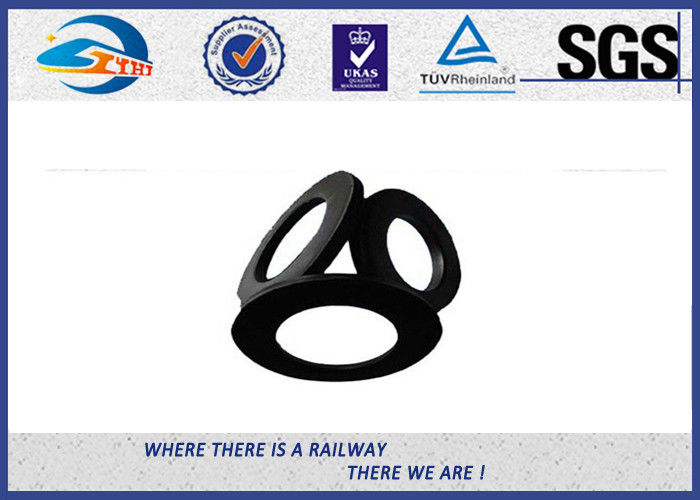

Screw and Bolts High Hardness Spring Steel Locking Washer Oxide Black

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: Locking Washer
Minimum Order Quantity: 10000pcs
Price: Negociable
Packaging Details: 25kg/woven bag, 36bags/pallet, 24pallets/container
Delivery Time: 15 to 25 days according to your order quantity
Payment Terms: T/T, 30% in advance
Supply Ability: 10MT per week
Material: 65Mn , 38Si7 Size: Φ47*Φ23*4
Surface: Oxide Black Sample: Free
Customization: Acceptable Application: Bolt, Screw Spike
High Light:

spring lock washer

,

spring steel washers

Oxide Black High Hardness Spring Steel Locking Washer For Screw and Bolts



A washer is a thin plate (typically disk-shaped) with a hole (typically in the middle) that is normally used to distribute the load of a threaded fastener, such as a screw or nut. Other uses are as a spacer, spring (belleville washer, wave washer), wear pad, preload indicating device, locking device, and to reduce vibration (rubber washer). Washers usually have an outer diameter (OD) about twice the width of their inner diameter (ID). Washers are usually metal or plastic. High quality bolted joints require hardened steel washers to prevent the loss of pre-load due to Brinelling after the torque is applied. Type Demension Weight (Kg/Mpcs) Spring wsaherFe6(UIC864-3) diam: 25 90 Spring washer AREA67 7/8 90.55 Spring washer AREA67 1 152.33 Spring washer AREA67 1-1/8 187.65 Plain pattern washer 7/8 70.46 Plain pattern washer 1 78.03 Plain pattern washer 1-1/8 85.32 Flat washer ULS6 47/23/4 41 Flat washer ULS6 50/25/4 42



DIN 6796 Heavy Duty Locking Washer

Manufactured to specification DIN 6796 these heavy duty bolting washers are perfect for bolted connections using bolts that range from grade 8.8 to 10.9.

Made from carbon steel C60 (DIN 1.0601) or similar with a self finish or mechanical zinc finish also available from stock.

Other materials and surface treatments available on request.



Type

Demension

Weight (Kg/Mpcs)

Spring wsaherFe6(UIC864-3)

diam: 25

90

Spring washer AREA67

7/8

90.55

Spring washer AREA67

1

152.33

Spring washer AREA67

1-1/8

187.65

Plain pattern washer

7/8

70.46

Plain pattern washer

1

78.03

Plain pattern washer

1-1/8

85.32

Flat washer ULS6

47/23/4

41

Flat washer ULS6

50/25/4

42
