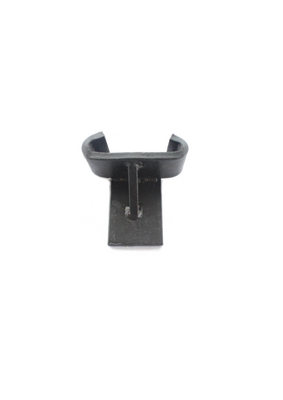

Spring Steel Rail Anchor And Rail Clip Anti Creep For Railway Systems

10000
MOQ
Spring Steel Rail Anchor And Rail Clip Anti Creep For Railway Systems
Features Gallery Product Description Chat Now
Features
Specifications
Material: Spring Steel 60Si2MnA
Hardness: HRC 40-50
Feature: Anti-Creep, Track Stability
Type: Spring / Pandrol / E-Clip
Surface: Galvanized Coated
Application: Concrete / Timber Sleepers
Highlight:

Spring Steel Rail Anchor Clip

,

Anti creep Railroad Rail Anchor

,

Anti Creep Railway Rail Anchor
Basic Infomation
Place of Origin: China
Brand Name: Sudelan
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: Wooden pallet+Woven bags
Product Description
Rail Anchor
A rail anchor (also known as a rail clip or anti-creep device) is a critical component used in railway track systems to prevent longitudinal movement (creeping) of the rail relative to the sleeper. This essential element maintains track stability and prevents rail buckling or misalignment.
Key Functions
  • Anti-creep: Prevents longitudinal movement of rails caused by train braking and acceleration forces
  • Track Stability: Maintains proper rail alignment and gauge
  • Load Distribution: Helps distribute dynamic forces from passing trains
  • Prevents Buckling: Reduces the risk of thermal expansion-induced track buckling
Types of Rail Anchors
Type Description
Spring Clips Most common type, using spring force to grip the rail base
Pandrol Clips Widely used elastic fastening system with high clamping force
KPO Clips German design with excellent anti-creep performance
Nabla Clips French design with high fatigue resistance
E-Clips Simple and cost-effective design for light rail applications
Installation & Material Specifications
Rail anchors are typically installed on both sides of the rail base, gripping the rail foot and bearing against the sleeper shoulder. They are designed to allow some elastic movement while preventing permanent creep.
Material Composition
  • Spring Steel: 60Si2MnA or similar grades with high yield strength
  • Surface Treatment: Often galvanized or coated for corrosion protection
  • Hardness: Typically HRC 40-50 for optimal spring properties
Applications
  • Concrete Sleeper Tracks: Standard application in modern railways
  • Timber Sleeper Tracks: Traditional systems with specific anchor designs
  • Ballastless Track: Used in direct fixation systems
  • Turnouts and Crossings: Specialized designs for complex track geometry
The selection of rail anchor type depends on factors like axle load, train speed, track type, and environmental conditions, with the goal of providing long-term stability and reducing maintenance requirements.
