Q235 4.6 / 4.8 Grade Railroad Track Spikes With Plain Finished

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: Customized
Minimum Order Quantity: 10000pcs
Price: Negociable
Packaging Details: 25kg woven bag with fumigation free pallet or according to customers' requirement
Delivery Time: 5-8 Working days for stocks
Payment Terms: T/T, 30% in advance
Supply Ability: 400000 Ton/Tons per Year Dog spike
Material:: Q235, Q235 Product Name: Dog Spike / Railroad Track Spike
Grade:: 4.6, 4.8 Quality Control:: Inspection
Standard:: AREMA
High Light:

rail road spikes


railway dog spikes


4.6 / 4.8 Grade Track Spikes On Railroads Railroad Track Building Materials


Dog Spike, also named Track spike or Railroad spike. It's a type of rail fastenings and is mainly used in rail construction.


Jiangsu SUYU Railway Material Co.,Ltd is a leader of supplying rail fastenings. We are specialized and well-experienced in the areas of the worldwide, especially in Europe, North and South America, Oceania and South Africa also. We support railway contractors in all over the world.



1. Raw Material Q235
2. Grade 4.6, 4.8
3. Finish Plain
4. Certificate ISO 9001-2008


Look forward to hearing from you eagerly.


Dog spike / Railroad spike / Track cut spike / Track spike / Nails for railway / Lock spike


Track spikes - a type of railroad spike



Track spikes are designed to maintain gauge between the running rails and also they are mean to secure the rail to the tie. Track spikes have various shapes serving for different functions. The materials for railroad spikes production can be carbon or stainless steel based on the requirement, and the surface of the spikes can be plain, black, hot dipped galvanized, or sherardized, etc. Among the various railroad spikes, dog spikes and the screw spikes are the most common types.


Brand SUYU
Name AREMA standard Railroad Track Spikes / Railway cut spike
Size 16x16xL 16x16xL 5/8x5/8xL 3/8x3/8xL 16x16x170 16x16x150 9/16"xL square square 16mm
5/8"x5/8"x5" 5/8"xL 10mm 19mm
    16mm Dia.22mm
Grade 4.6 4.6 A370 ASTM A65 Gr1,Gr2 4.6 4.6 ASTM A65 Gr1,Gr2 4.6 4.6
Material Q235 low carbon steel Q235 Q235 low carbon steel low carbon steel low carbon steel SS41 low carbon steel
Surface plain (oiled)
Standard refers GB/T 1346 GOST5812 AREMA AREMA Ss-EN10025 BS70R, BS60R AREA JIS E1108

AS 1085.8

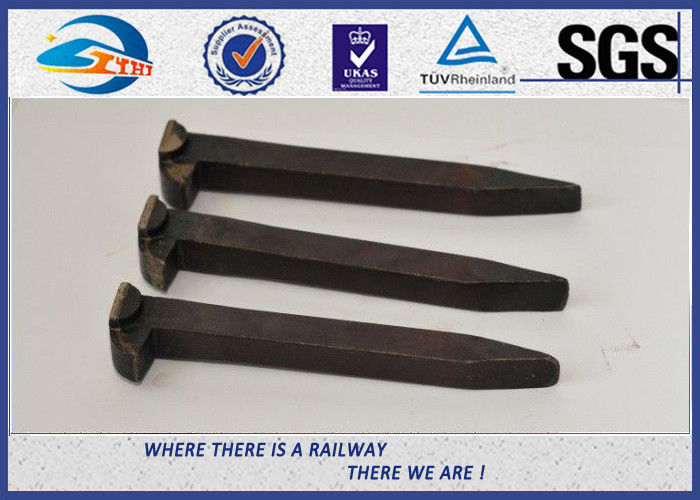

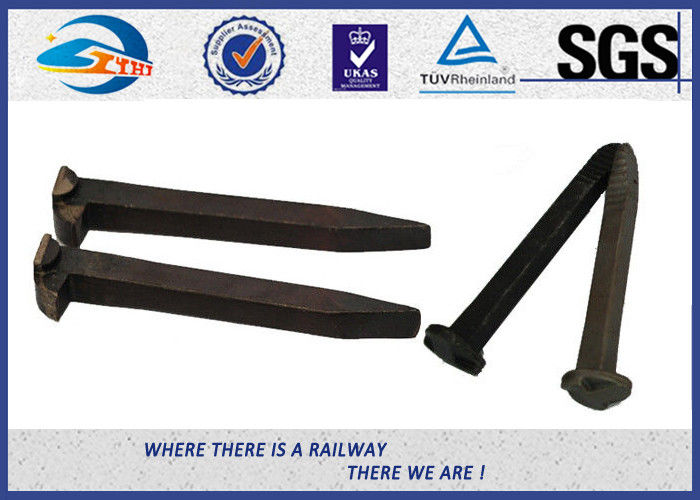

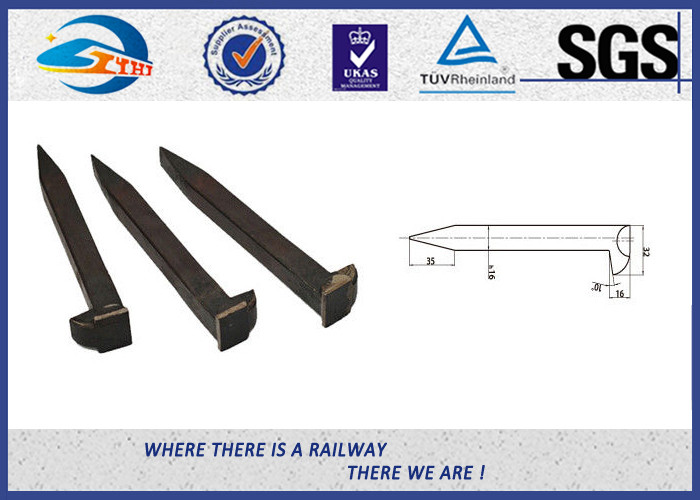

Q235 4.6 / 4.8 Grade Railroad Track Spikes With Plain Finished 0Q235 4.6 / 4.8 Grade Railroad Track Spikes With Plain Finished 1Q235 4.6 / 4.8 Grade Railroad Track Spikes With Plain Finished 2


Our main products:

Plastic and rubber pads, EVA pad, HDPE pad, dog spike, screw spike, railway bolt and nut, washer, rail clip, rail shoulder, crane rail, fish plate, base plate, crane rails and so on.


Q235 4.6 / 4.8 Grade Railroad Track Spikes With Plain Finished 3



1. Q: what information should we show if we need price?

A: 1. tree species;

2. size: length*width*thicknessl;

3. quantity;

4. we adopt oiled anti corrosion, if yours special, please mark it.


2.Q: what is anti-corrosion?

A: Using high temperature and pressure oiling corrosion technology.
Technology standards : GB9221-88


3. Q: payment terms?

A: 30% by T/T as deposit, the balance 70% before delivery.


4. Q: Validity Date?

A: 10~15 days in general. it will be showed in quotation.


5. Q: Mold fee?

A: if we have same mold, no mold fee;

if we make new mold with small quantity, client pay for it;

if we make new mold with large quantity, SuYu pay for it.



If you have any other models of rail/ rail fastener, welcome to contact me.
