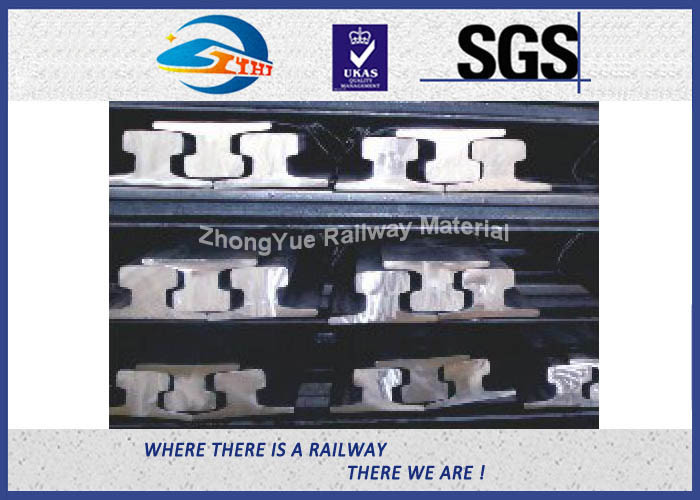

DIN 536 Standard Steel Rail A55 A65 A75 A100 A120 with 900A or 50Mn at 12m

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: DIN 536
Minimum Order Quantity: 20 tons
Price: Negociable
Packaging Details: in bundle
Delivery Time: 3 days after payment
Payment Terms: T/T, 30% in advance
Supply Ability: 5000 ton per month
Material: 900A,50MN Length: 10m-12m
Surface: Plain Weight: 74.3kg/m
Type: A55,A65,A75,A100,A120 Standard: DIN 536





DIN Standard Steel Rail



Other Name: Steel Rail, Railway Track, Crane Rail

Brand: ZhongYue

HS CODE: 73021 0000

Standard: DIN 536: A55, A65, A75, A100, A120

Material: 900A or 50Mn

Specifications

Standard: DIN536
Size Dimension(mm) Weight
(kg/m)
Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
A55 55 65 150 31 31.8 900A 10-12
A65 65 75 175 38 43.1 900A 10-12
A75 75 85 200 45 56.2 900A 10-12
A100 100 95 200 60 74.3 900A 10-12
A120 120 105 220 72 100 900A

10-12





The Process Flow Chart of Steel Rolling And Quality Control

  1. Raw material

  2. Heating

  3. High-pressure water dephosphorization

  4. Primary rolling

  5. High-pressure wind dephosphorization

  6. Precision rolling

  7. Saw cutting

  8. Pre-bending

  9. Air cooling —the test of chemical composition and mechanical properties

10. Vertical straighting

11. Ultrasonic detection

12. Drilling and milling

13. Heat treatment

14. Inspection and analysis

15. Labeling

16. Packing

17. Storage



Quality Testing Machine

  1. CS Analyzer

  2. Brienll hardenss tester

  3. Impact testing machine

  4. High magnification metallographic microscope

  5. Tensile testing machine

  6. Drop-testing machine

  7. Precise elemental analyser

  8. Digital ultrasonic flaw detector



Package:

in bundle by steel belt.  25 tons per container.



Payment terms:
By T/T, 30% in advance,and balance 70% before delivery.



Delivery Date
30 days after order.



Certification
ISO9001:2008. SGS.We also accept Third Party Test from clients.



Sale Range
  1.Rail fastening system
  2.Dog spike / Screw spike
  3.Bolts & Nuts
  4.Elastic clamp
  5.Rail anchor
  6.Rail shoulder
  7.Fish plate
  8.Tie plate
  9.Plastic / Rubber parts
10.Brake pad
11.Steel rail



Company Info.

    Established in 2013, ZhongYue has become one of the largest manufacturer of Railway fasteners in China. Our products are manufactured according to international standards such as ASTM, DIN, BS, JIS, AS, NF, ISO,GOST and GB. They are inspected frequently by BV, SGS, and ABS. We have been granted ISO9001:2008 certificate and supply products to famous companies such as VAE, Hilti,Vossloh etc. We are a qualified supplier of Canada railway, Kazakhstan railway, American railway, Zambia railway, Thailand railway, Indonesia railway, Malaysia railway, Sweden railway, New Zealand railway, South Africa railway etc.



    Sticking to our quality first policy, ZhongYue pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our railway bolt products are of high quality and up to customers' requirements.
