| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | 59R1, 59R2, 60R1, 60R2 |
| Minimum Order Quantity: | 20 tons |
| Price: | Negociable |
| Packaging Details: | In bundle |
| Delivery Time: | 7 days after order |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 1500 ton per month |
| Product Name: | Grooved Rail | Application: | Tram Rail |
|---|---|---|---|
| Material: | 55Q | Surface: | Plain |
| Standard: | BS EN 14811:2006 | Height: | 180mm |
| Bottom: | 180mm | Web: | 12mm |
| High Light: | railroad steel rail,steel rail track |
||

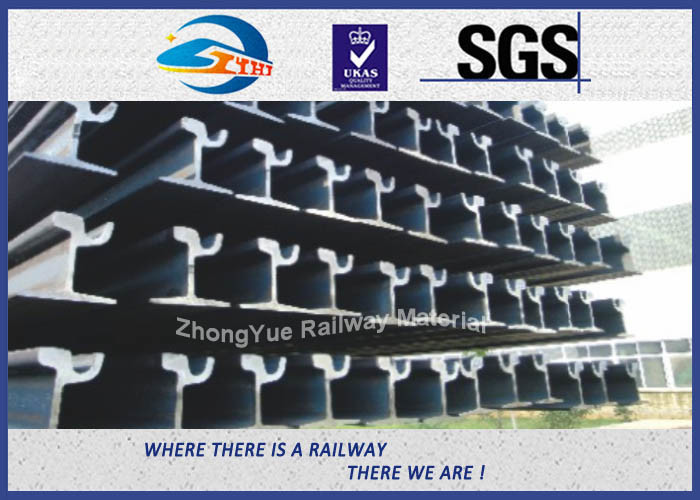

Grooved Rail According to Standard BS EN 14811:2006
Other Name: Railway Rail, Steel Rail, Railroad Track
Standard: BS EN 14811:2006
Model:
59R1, 59R2, 60R1, 60R2
| 59R1 | 59R2 | 60R1 | 60R2 |
Application:
Steel rail is used to guide the train wheels in position, by withstanding the enormous stress by the wheel when a train passes by, and transferring to the rail sleepers as well. The rail shall provide smooth and continuous rolling surface with least resistance. The heavier the rails and the rest of the track work, the heavier and higher speed for the train these railway tracks can carry. At electrified railway or automatic block sections, the track rail can also be used as the railroad track circuit.
Modern rails are made by hot rolled steel of specific cross-section (profile) which approximates to I-beam but is asymmetric about a horizontal axis---flat bottomed, so that can rest directly on the tie sleepers and bullhead rails well. A rail is composed by three parts of rail Head, Web and Foot, and overall cross-sectional dimensions are always made of rail height(A), Bottom width (B) and Head width(C). Together with the Web thickness(t), the 4 sizes are overall dimensions for rail type classifications.
Specifications
| Standard: BS EN 14811:2006 | ||||||||||
| Size | Dimension(mm) | Weight (kg/m) |
Material | Length (m) | ||||||
| HeadA (mm) |
HeadB (mm) |
ChannelA (mm) |
ChannelB (mm) |
Height (mm) |
Bottom (mm) |
Web (mm) |
||||
| 59R1 | 113 | 56 | 42 | 15 | 180 | 180 | 12 | 58.97 | U71Mn | 12 |
| 59R2 | 113 | 55.83 | 42.52 | 14.65 | 180 | 180 | 12 | 59.14 | U71Mn | 12 |
| 60R1 | 113 | 56 | 36 | 21 | 180 | 180 | 12 | 60.59 | U71Mn | 12 |
| 60R2 | 113 | 55.83 | 36.34 | 20.83 | 180 | 180 | 12 | 59.75 | U71Mn | 12 |
Packaging: in bundle, 26 tons per container
Sale Range
| 1 | Railway fastening system |
| 2 | Dog spike / Screw spike |
| 3 | Bolts & Nuts |
| 4 | Elastic clamp |
| 5 | Fish plate |
| 6 | Steel rail |
| 7 | Rail shoulder |
| 8 | Rail anchor |
| 9 | Tie plate |
| 10 | Plastic / Rubber parts |
| 11 | Brake pad |
Our Company:
Established in 2013, ZhongYue Railway Material has become one of the largest manufacturer of Railway fasteners in China. Our products are manufactured according to international standards such as ASTM, DIN, BS, JIS, AS, NF, ISO,GOST and GB. They are inspected frequently by BV, SGS, and ABS. We have been granted ISO9001:2008 certificate and supply products to famous companies like VAE, Hilti,Vossloh etc. We are a qualified supplier of Canada railway, Kazakhstan railway, American railway, Zambia railway, Thailand railway, Indonesia railway, Malaysia railway, Sweden railway, New Zealand railway, South Africa railway etc.
Sticking to the policy of quality first, ZhongYue Railway pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our railway bolt products are of high quality and up to customers' requirements.
