Place of Origin: | China |
---|---|
Brand Name: | ZhongYue |
Certification: | ISO9001:2015 |
Model Number: | GB6KG, GB9KG, GB12KG, GB15KG, GB22KG, GB30KG |
Minimum Order Quantity: | 20 tons |
Price: | Negociable |
Packaging Details: | in Bundle, in Bulk |
Delivery Time: | About 30 days after receiving advance payment. |
Payment Terms: | T/T, 30% in advance |
Supply Ability: | 3000 tons/month |
Production Name:: | American Standard Steel Rail,BS Standard Crane Rail,UIC860 Standard Railroad Rail | Material:: | 700/900A/1100 |
---|---|---|---|
Standard:: | ASTMA1,,AREMA,ASCE,BS11:1985;UIC860;UIC50/54/60 | Length:: | 6-25m,Customized Length Acceptable |
Weight:: | Depands On Sizes | Application:: | Crane Rail Construction |
Samples:: | Available Upon Request | ||
High Light: | tram rails,steel rail track |
American Standard Steel Rail,BS Standard Crane rail,UIC860 Standard railroad rail
ZHONGYUE Steel crane rail:
The steel rail is used to guide the train wheels far forwarding, by withstanding the enormous stress by the wheel when a train passes by, and transferring to the tie sleepers as well. The cranerail shall provide smooth and continuous rolling surface with least resistance. Generally speaking, the heavier the rails and the rest of the track work, the heavier and higher speed for the train these railroad tracks can carry. At electrified railway or automatic block sections, the railroad rail can also be used as the railroad track circuit.
Due to high quality and competitive prices, our steel crane rails have been exported to over 50 countries, including America, Brazil, Canada, Germany, Britain, Spain, Belgium, Poland, India, Thailand, Malaysia, and Sudan, etc.
In order to ensure better quality, the steel rails have to undergo various tests, such as chemical composition test, tensile strength test, hardness test and drop weight test.
American Standard Steel Rail,BS Standard Crane rail,UIC860 Standard railroad rail
Application:
1. Used under traveling wheel of various cranes such as overhead crane, gantry crane, portal crane, launching crane, flat car, girder carrier, etc.
2. Used in the field of train travel
3. railway construction, shipbuilding, bridge construction
1. American Standard Steel Rail
Standard ASTMA1, AREMA: ASCE25, ASCE30, ASCE40, ASCE60, ASCE75, ASCE85, 90RA, 115RE, 136RE, 175LBS
Specifications
Standard: ASTMA1, AREMA | |||||||
Size | Dimension(mm) | Weight (kg/m) |
Material | Length (m) | |||
Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
ASCE 25 | 38.1 | 69.85 | 69.85 | 7.54 | 12.4 | 700 | 6-12 |
ASCE 30 | 42.86 | 79.38 | 79.38 | 8.33 | 14.88 | 700 | 6-12 |
ASCE 40 | 47.62 | 88.9 | 88.9 | 9.92 | 19.84 | 700 | 6-12 |
ASCE 60 | 60.32 | 107.95 | 107.95 | 12.3 | 29.76 | 700 | 6-12 |
ASCE 75 | 62.71 | 122.24 | 122.24 | 13.49 | 37.2 | 900A/1100 | 12-25 |
ASCE 85 | 65.09 | 131.76 | 131.76 | 14.29 | 42.17 | 900A/1100 | 12-25 |
90RA | 65.09 | 142.88 | 130.18 | 14.29 | 44.65 | 900A/1100 | 12-25 |
115RE | 69.06 | 168.28 | 139.7 | 15.88 | 56.9 | 900A/1100 | 12-25 |
136RE | 74.61 | 185.74 | 152.4 | 17.46 | 67.41 | 900A/1100 | 12-25 |
175LBs | 109.86 | 152.4 | 152.4 | 38.1 | 86.8 | 900A/1100 | 12-25 |
2. BS Standard Steel Rail
Standard BS11: 1985: 50O, 60A, 75A, 75R, 80A, 80R, 90A, 100A, 113A
Specifications
Standard: BS11: 1985 | |||||||
Size | Dimension(mm) | Weight (kg/m) |
Material | Length (m) | |||
Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
50 O | 52.39 | 100.01 | 100.01 | 10.32 | 24.833 | 700 | 6-18 |
60 A | 57.15 | 114.3 | 109.54 | 11.11 | 30.618 | 900A | 6-18 |
75 A | 61.91 | 128.59 | 114.3 | 12.7 | 37.455 | 900A | 8-25 |
75 R | 61.91 | 128.59 | 122.24 | 13.1 | 37.041 | 900A | 8-25 |
80 A | 63.5 | 133.35 | 117.47 | 13.1 | 39.761 | 900A | 8-25 |
80 R | 63.5 | 133.35 | 127 | 13.49 | 39.674 | 900A | 8-25 |
90 A | 66.67 | 142.88 | 127 | 13.89 | 45.099 | 900A | 8-25 |
100 A | 69.85 | 152.4 | 133.35 | 15.08 | 50.182 | 900A | 8-25 |
113 A | 69.85 | 158.75 | 139.7 | 20 | 56.398 | 900A | 8-25 |
3. UIC860 Standard Steel Rail
Standard UIC860: UIC50, UIC54, UIC60
Specifications
Standard: UIC860 | |||||||
Size | Dimension(mm) | Weight (kg/m) |
Material | Length (m) | |||
Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
UIC50 | 70 | 152 | 125 | 15 | 50.46 | 900A/1100 | 12-25 |
UIC54 | 70 | 159 | 140 | 16 | 54.43 | 900A/1100 | 12-25 |
UIC60 | 74.3 | 172 | 150 | 16.5 | 60.21 | 900A/1100 | 12-25 |
Note:Infomation listed above is for reference only, please contact us for safe.

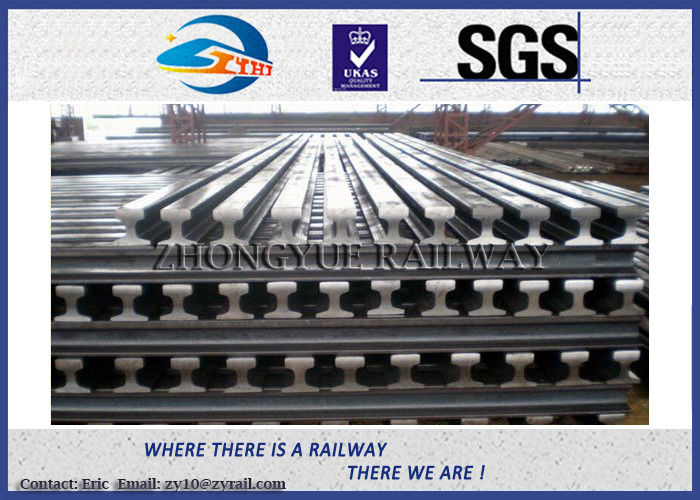

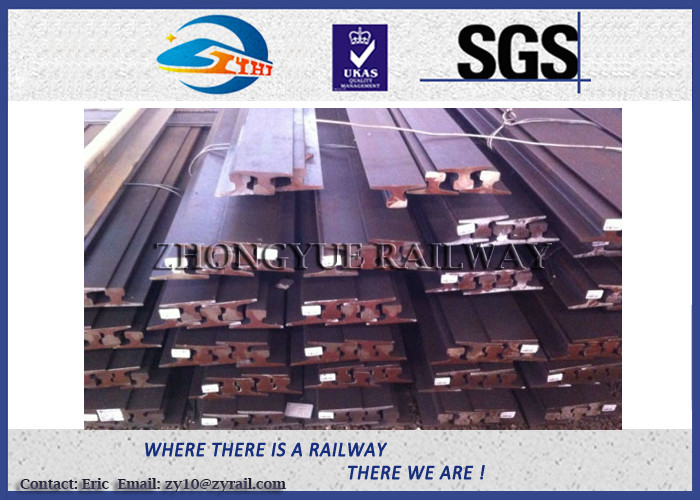

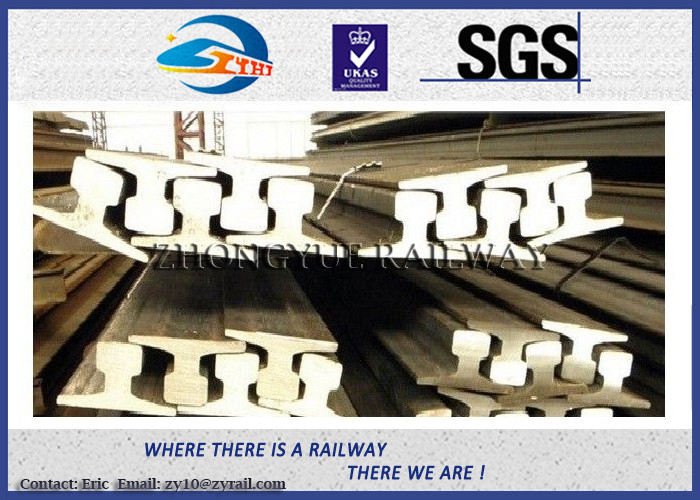

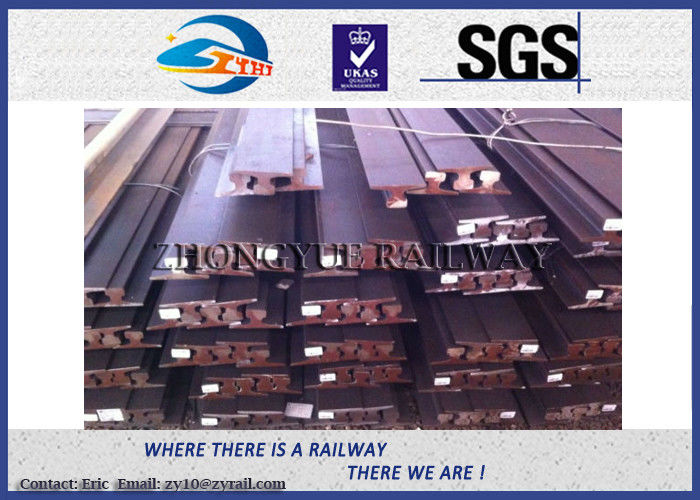

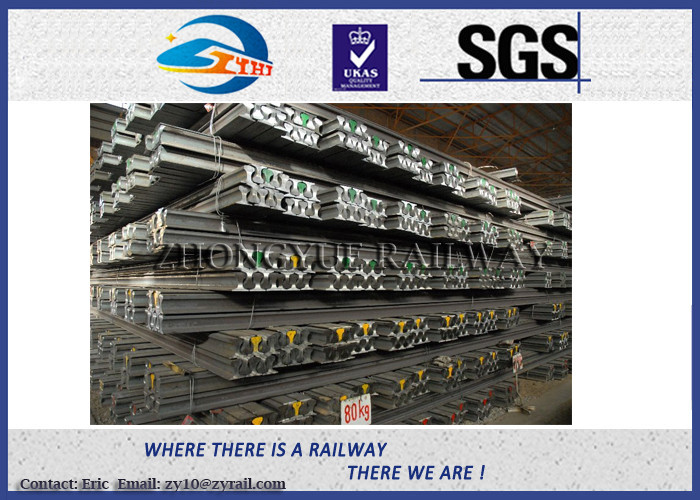

Photo of American Standard Steel Rail,BS Standard Crane rail,UIC860 Standard railroad rail

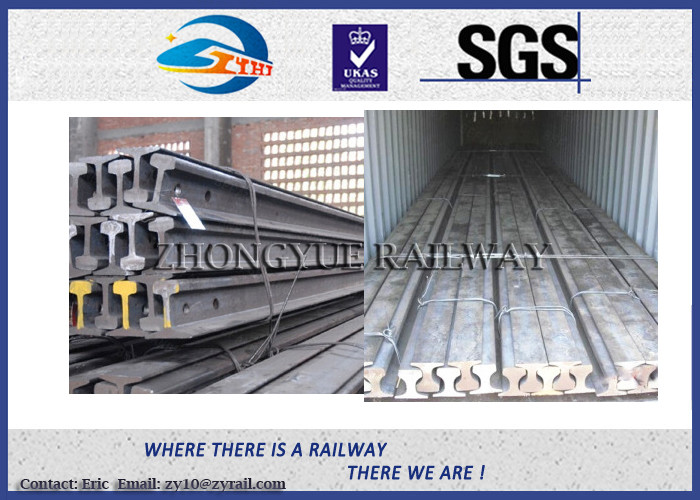

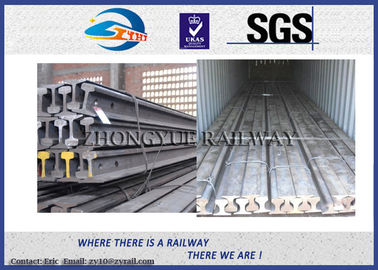

Pakaging of the light stell crane rail:
Light rail,Crane rail of GB11264-89 standard/YB222-63 standard steel rail
American Standard Steel Rail,BS Standard Crane rail,UIC860 Standard railroad rail
ZHONGYUE'S PRODUCTS RANGES:
For more details of the crane rail light rail OR any demands on the Light rail,
pls kindly contact us.
