| Product Name: | Rail Insulator | Material: | PA66 |
|---|---|---|---|
| Color: | White, Black, Blue, Red Etc | Sample: | Available |
| Customize: | Available | ||
| High Light: | rubber track pads,railway parts |
||
PA66 Rail Nylon Insulator Plastic and Rubber Part for Railway Fastening System
Rail insulator is installed between rail and tie plate, for adjusting rail gauge and electrically insulating railroad rails, clips
and bolts from the interior of a concrete tie or sleeper. Its function is the same as a rail pad, but it is thicker than rail pad.
For the high speed or high load train, it is a necessary fastener part.
Properties of insulators
The insulators apply to rails such as 60kg (UIC) rail, 52kg rail, 136RE Rail, 90R, 75R, 50R, 60R etc. It’s material:Nylon-6 or
Nylon-66 with glass filler content 20% to 35% depending on specification. These material are UV stabilized and available
in natural color or as per requirement.
The properties of Suyu rail insulators
| Technical Parameter | Unit | Technical Requirement | Value |
| Density | g/cm | 1.3-1.45 | 1.45 |
| Tensile Strength | Mpa | ≥170 | 178 |
| Elongation | % | ≤4.4 | 4.0 |
| Bending Strength | Mpa | ≥250 | 290 |
| Impact Strength (No gap) | KJ/m2 | ≥80 | 85 |
| Melting Point | ℃ | 250 - 270 | 270 |
| Insulation Resistance | Ω | ≥1×108 | 5×108 |
| Glass Fiber Content | % | 30-35 | 35 |
| Hardness | HRR | ≥110 | 118 |

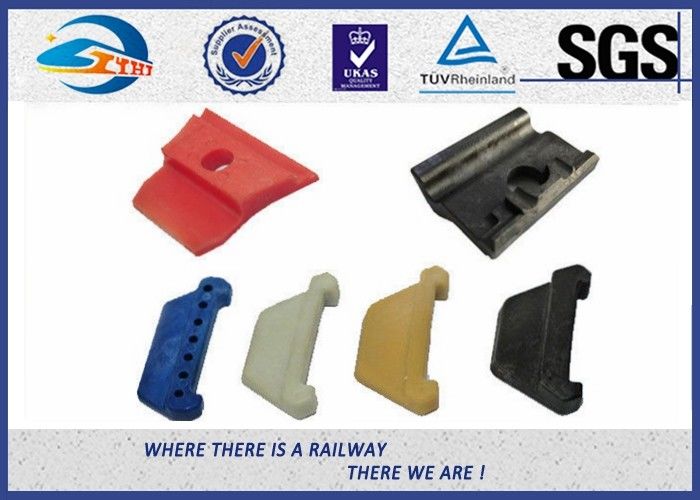

We supply E-type rail insulators and guide plates for SKL rail fastening systems and Nabla fastening systems. The material of rail insulator is usually Reinforced Nylon 66 (PA66), with the color white, dark brown or black. Materials and colors can also be customized according to the customers’ requirements.

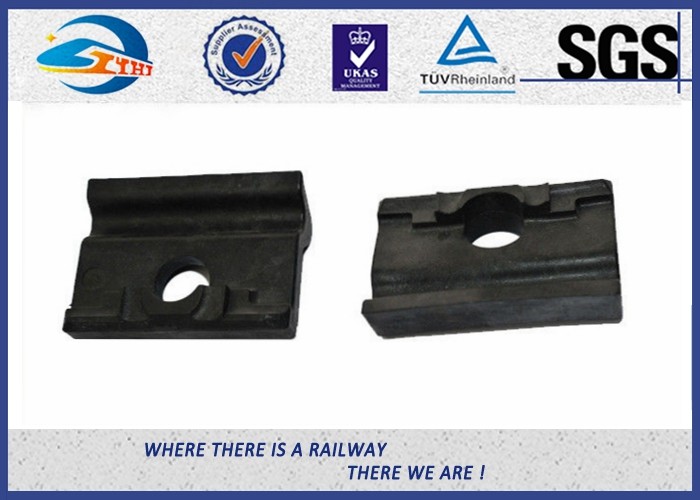

E-type rail insulators are used in E-clip fastening systems, together with E-clips, rail shoulders and rail pads, whose function is to cushion the passing train’s stress onto the rail and make the rail back to position afterwards, similarly used as a rail pad under the rail track.
SKL rail insulators are also called guide plates, used in SKL fastening systems, combined with SKL tension clips, screw spikes, plastic dowels, flat washers and rail pads.

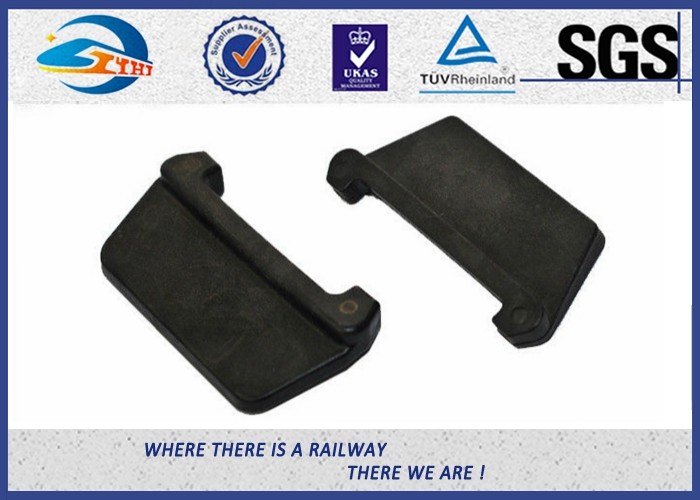

Angle guide plate is used under tension clamp / SKL / to keep the rail in lateral position and the lateral forces
are passed on to the concrete body by the means of Angle Guide plate. Advantageous as pre assemble at
sleeper factory required. These are made of engineered polymers known as Poly Amide / Nylon 66 with glass
reinforcement for durability and strength. Also providing high electric insulation.Track Adjustment of +/10mm
can be made through Angle guide plate WFP, therefore different angle guide plate can be used for different
rail profile with same sleeper and same gauge.
| 1. | Wfp 14k 17 |
| 2. | Wfp 14k 14.5 |
| 3. | Wfp 14k 12 |
| 4. | Wfp 14k 9.5 |
| 5. | Wfp 14k 7 |
Nabla rail insulators are used in Nabla clip rail fastening systems, working together with other fastener parts including Nabla clips, screw spikes and spring washers.
Please contact me for more information.
