Custom Rail Crane Clip / SKL Rail Clip With Oxide Black GB/T1222

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: OEM
Minimum Order Quantity: 10000pcs
Price: Negociable
Packaging Details: according to clients' requirement
Delivery Time: 30 working days after received your payment
Payment Terms: T/T, 30% in advance
Supply Ability: 500,000set per month
Product Name: Fast Clip Application: Railway Fastening System
Similarity: E Type, Nabla Type, SKL Type, KP Type, Etc. Sample: Available
Warranty: Two Years Customize: Available
High Light:

railway clips

,

railroad clips

Zhongyue railway fastening system rail crane clip elastic rail clip SKL rail clip



Brand ZhongYue
Name E clip
Type E clip (e1809, e2006,e2007,e2009,etc)
Skl clip (skl1,skl3,skl12,skl14)
Or the type by customers’ drawings
Material 60Si2MnA 60Si2CrA 55Si2Mn 38Si7
Chemical composition(%) C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03
Hardness

For e clip: 44-48HRC

For skl clip: 42-47HRC

Fatigue life

for Dia.18 is 3 millions cycles without breaking

for Dia.20 is 5 millions cycles without breaking

Surface plain (oiled), Oxide black, color painting
Standard refers DIN17221, BS970, GB/T1222

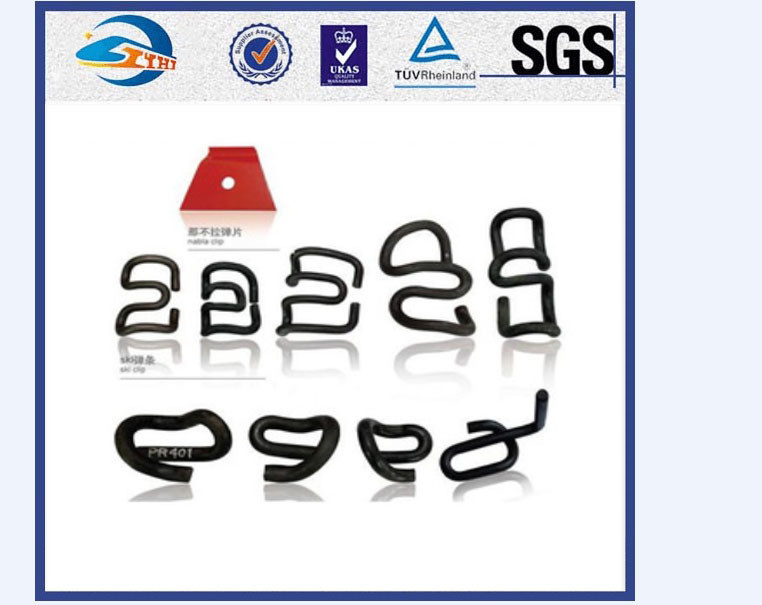

Custom Rail Crane Clip / SKL Rail Clip With Oxide Black GB/T1222 0Custom Rail Crane Clip / SKL Rail Clip With Oxide Black GB/T1222 1Custom Rail Crane Clip / SKL Rail Clip With Oxide Black GB/T1222 2Custom Rail Crane Clip / SKL Rail Clip With Oxide Black GB/T1222 3



One set of fast clip fastening system includes:



  1. Cast iron tie plate
  2. Fast clip
  3. Rail anchor
  4. Sleeve



Features:

  1. Fast clamp with 1.8 mm fatigue strength
  2. Rail tilting protection by middle bend of the tension clamp and special design of the angled guide plate
  3. Pre-assembly of all components in the sleeper factory possible
  4. Reduction of maintenance costs by permanent elastic tensioning of the rail with tension clamps (2 x 12 kN toe load)
  5. Gauge adjustment ±10 mm in 2.5 mm steps



Produce Process



Clip Production Process
1 raw material
2 shearing
3 heating to forging temperature (950-1000 degrees celsius)
4 forming
5 hardening
6 tempering below 350 degrees celsius
7 inspection
8 packing



Custom Rail Crane Clip / SKL Rail Clip With Oxide Black GB/T1222 4





Surface Treatment

  1. plain (oiled)
  2. oxide Black
  3. color painting
  4. DHG
  5. galavazing



Inspection machine

  1. Brinell Hardness Tester
  2. Rockwell Hardness Machine
  3. Automatic Impact Testing Machine
  4. Metallographic Microscope
  5. Carbon and Sulfur Analyzer
  6. Fatigue Testing Machine
  7. Metallographic Specimen Polishing Machine
  8. Metallographic Specimen Pointing Machine
  9. Automatic High-speed Analyzer

Custom Rail Crane Clip / SKL Rail Clip With Oxide Black GB/T1222 5



Package

  1. 25 kg double-layer woven bag with free fumigation wooden pallent
  2. 36bags/pallets
  3. 20pallets/20ft



Application

  1. Speed <120km/h
  2. High-way speed >120km/h

 Custom Rail Crane Clip / SKL Rail Clip With Oxide Black GB/T1222 6





Quotation necessity ( the more, the better )

  1. Drawing with full size
  2. Material and grade
  3. Surface Treatment
  4. Order quantity

Similarity



  1. E clip system
  2. SKL1 clip system
  3. SKL2 clip system
  4. SKL3 clip system
  5. SKL12 clip system
  6. SKL14 clip system
  7. SKL21 clip system
  8. Nabla clip system
  9. KP clip system

Custom Rail Crane Clip / SKL Rail Clip With Oxide Black GB/T1222 7

Packing:



Custom Rail Crane Clip / SKL Rail Clip With Oxide Black GB/T1222 8



Custom Rail Crane Clip / SKL Rail Clip With Oxide Black GB/T1222 9
