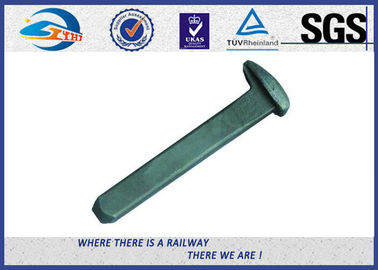

Q235 / 35# Railway Rail Sleeper Metric Screw St3.5 Track Spikes

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: OEM
Minimum Order Quantity: 10000pcs
Price: Negociable
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: about 30 work days after getting payment
Payment Terms: T/T, 30% in advance
Supply Ability: 600,000 pcs per month
Product Name: Railway Rail Sleeper Metric Screw St3.5 Track Spikes Application: Railway
Grade: 4.6, 4.8, 5.6, Material: Q235 / 35#
Surface: Zinc, HDG Standard: ISO898-1, UIC864-1, And NF F500-50
Warranty: Two Years
High Light:

rail road spikes

,

boat spikes

ZhongYue railway rail sleeper metric screw st3.5 track spikes







Introduce:

Rail track spike is mainly used for rail and wooden sleeper, is used for connecting the steel rail and sleeper or pad and a fastener sleeper.





Description:


Brand

ZhongYue

Name

Track Spikes
Size 16x16xL 16x16xL 5/8"x5/8"xL 3/8"x3/8"xL 16x16x170 16x16x150 9/16"xL square square 16mm
5/8"x5/8"x5" 5/8"xL 10mm 19mm
    16mm Dia.22mm
Grade 4.6 4.6 A370 ASTM A65 Gr1,Gr2 4.6 4.6 ASTM A65 Gr1,Gr2 4.6 4.6
Material Q235 low carbon steel Q235 Q235 Steel type
low carbon low carbon low carbon SS41 low carbon steel
Surface plain (oiled)
Standard refers GB/T 1346 GOST5812 AREMA AREMA Ss-EN10025 BS70R, BS60R AREA





Note (4.8 as a sample)

the first 4: tensile strength of material Q235 is 400MPa;

the second 0.8: the yield ratio is 0.8;

the yield strength of material Q235 is 400MPa x 0.8 =320 MPa.

MOQ: 1.0MT per model
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement





Advantage:

We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.





Order Hints:

MOQ: based on your product

Delivery time:Within 30days after order confirmed

Shipment: sea freight

Payment term: T/T 30% deposit, balance before shipment; LC





Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ DP clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert




Process

  1. Raw material
  2. Cutting
  3. Head forming
  4. Heat treatment
  5. Surface treatment
  6. Final inspection
  7. Packing
  8. Shippment.







Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine
