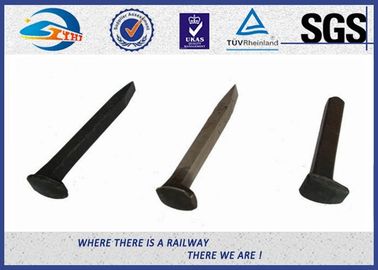

Bitumen / Dacromet Railway Screw Spikes / Dog Spikes NF F500-50

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: OEM
Minimum Order Quantity: 10000pcs
Price: Negociable
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: about 30 work days after getting payment
Payment Terms: T/T, 30% in advance
Supply Ability: 600,000 pcs per month
Product Name: Railway Screw, Railway Spikes, Dog Spikes Made In China Application: Railway
Grade: 4.6, 4.8, 5.6, Material: Q235 / 35#
Sample: Available Standard: ISO898-1, UIC864-1, And NF F500-50
Warranty: Two Years
High Light:

railway dog spikes

,

boat spikes

ZhongYue railway screw, railway spikes, dog spikes made in China





Introduce:

Railroad screws spikes provide a mechanical interlock that delivers more than twice the holding power of conventional hammered railway spikes. Screw spikes are commonly used to fasten timber railway ties/sleepers; however, they can also be used in conjunction with plastic ferrules that have been cast into concrete ties/sleepers. Various thread profiles, lengths, diameters and drive heads are available to suit specific geographic requirements and SUYU can help with product specification and selection





Description:

Grade 4.6 5 .6 8.8
Material Q235 35# 45#
Mechanical Tensile strength: ≥ 400Mpa Tensile strength: ≥ 500Mpa

Tensile strength:

≥ 800Mpa

Yield strength: ≥ 240Mpa Yield strength: ≥ 300Mpa Yield strength: ≥ 640Mpa
Elongation: ≥ 22% Elongation: ≥ 20% Elongation: ≥ 12%
Cold bending: 90 degree
without crack
Surface plain (oiled) , Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refers ISO898-1, UIC864-1, and NF F500-50







Advantage:

We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.





Order Hints:

MOQ: based on your product

Delivery time:Within 30days after order confirmed

Shipment: sea freight

Payment term: T/T 30% deposit, balance before shipment; LC





Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ DP clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert



Process

  1. Raw material
  2. Cutting
  3. Head forming
  4. Heat treatment
  5. Surface treatment
  6. Final inspection
  7. Packing
  8. Shippment.







Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine
