Q235 / 35# Sleeper Lag Screw Track Spikes Railway Fastening System

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: OEM
Minimum Order Quantity: 10000pcs
Price: Negociable
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: about 30 work days after getting payment
Payment Terms: T/T, 30% in advance
Supply Ability: 600,000 pcs per month
Product Name: Track Spike Application: Railway
Grade: 4.6, 4.8, 5.6, Material: Q235 / 35#
Surface: Zinc, HDG Standard: ISO898-1, UIC864-1, And NF F500-50
Warranty: Two Years
High Light:

rail road spikes


boat spikes

ZhongYue railway fastening system sleeper lag screw track spikes
Track spikes are used to fasten sole plates and ribbed base plates to wooden sleepers. direct fastenings of rails on concrete and wooden sleepers. Characteristically, the sleeper screw thread may only be produced in a hotforming operation. The different shapes of the head correspond to the pass form of the respective spanner used for fastening and loosening of the rail sleeper screws.

Grade4.65 .68.8
MechanicalTensile strength: ≥ 400MpaTensile strength: ≥ 500Mpa

Tensile strength:
≥ 800Mpa

Yield strength: ≥ 240MpaYield strength: ≥ 300MpaYield strength: ≥ 640Mpa
Elongation: ≥ 22%Elongation: ≥ 20%Elongation: ≥ 12%
Cold bending: 90 degree
without crack
Surfaceplain (oiled) , Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refersISO898-1, UIC864-1, and NF F500-50

Note (4.8 as a sample)
the first 4: tensile strength of material Q235 is 400MPa;
the second 0.8: the yield ratio is 0.8;
the yield strength of material Q235 is 400MPa x 0.8 =320 MPa.
MOQ: 1.0MT per model
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement


  1. Raw material
  2. Cutting
  3. Head forming
  4. Heat treatment
  5. Surface treatment
  6. Final inspection
  7. Packing
  8. Shippment.

Surface Treatment

  1. galavazing
  2. DHG
  3. plain (oiled)
  4. color paint
  5. oxide Black

Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine



We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.
Order Hints:
MOQ: based on your product
Delivery time:Within 30days after order confirmed
Shipment: sea freight
Payment term: T/T 30% deposit, balance before shipment; LC
Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ DP clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert

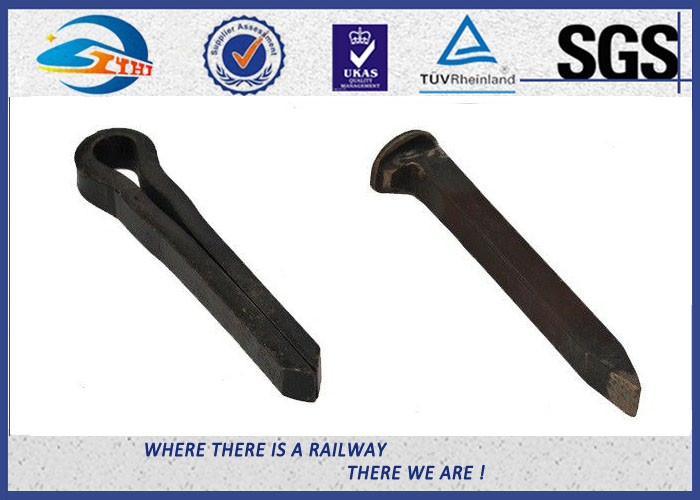

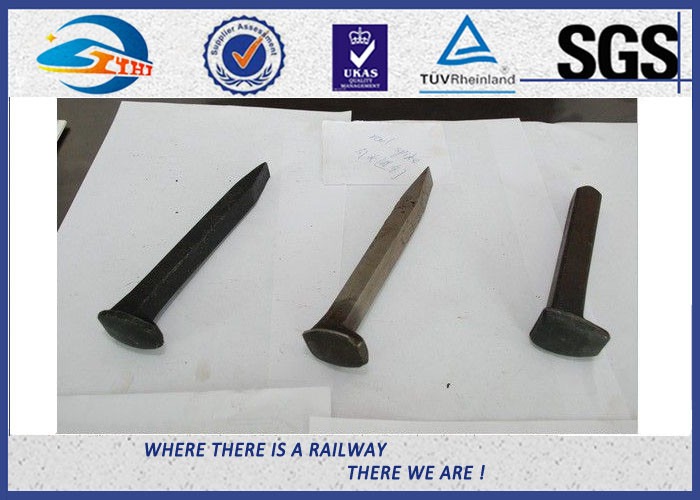

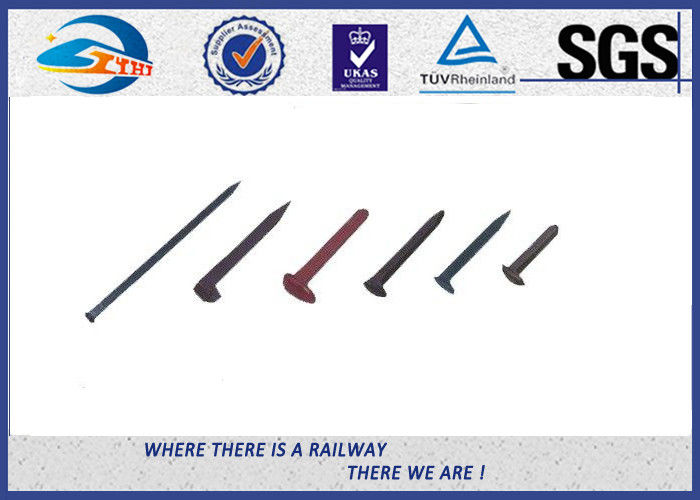

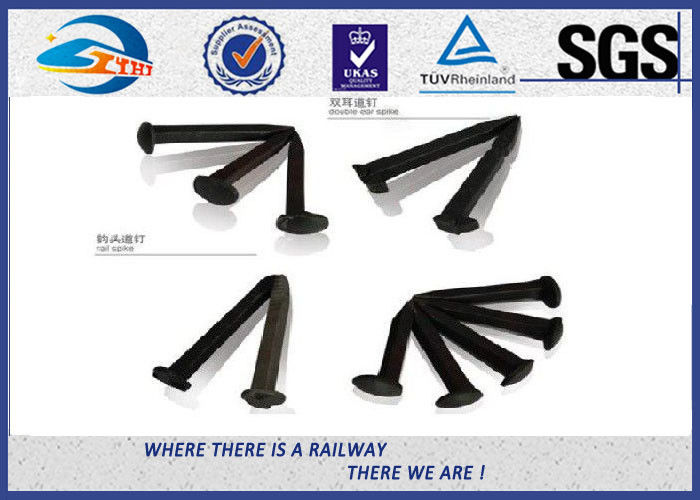

Q235 / 35# Sleeper Lag Screw Track Spikes Railway Fastening System 0
