| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | OEM |
| Minimum Order Quantity: | 10000pcs |
| Price: | Negociable |
| Packaging Details: | 25Kg plastic bags and wooden pallets or according to clients' requirement |
| Delivery Time: | about 30 work days after getting payment |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 600,000 pcs per month |
| Product Name: | Railway Fasteners Plain Oil Railway Track And Field Spikes | Certificate: | ISO9001, SGS |
|---|---|---|---|
| Grade: | 4.6, 5.6, 8.8 | Material: | Q235 / 35# |
| Surface: | Zinc, HDG | Standard: | ISO898-1, UIC864-1, And NF F500-50 |
| Warranty: | Two Years | ||
| High Light: | rail road spikes,boat spikes |
||

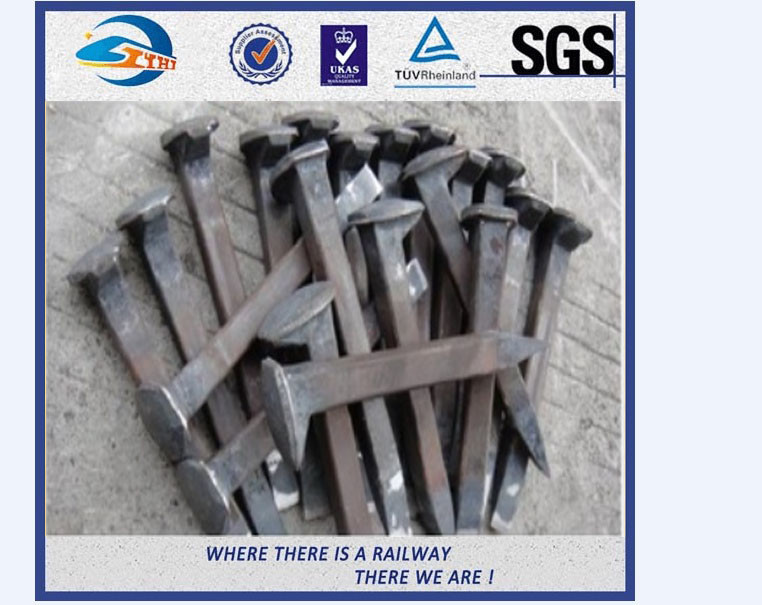

ZhongYue railway fasteners plain oil railway track and field spikes
Introduce:
Railroad screws spikes provide a mechanical interlock that delivers more than twice the holding power of conventional hammered railway spikes. Screw spikes are commonly used to fasten timber railway ties/sleepers; however, they can also be used in conjunction with plastic ferrules that have been cast into concrete ties/sleepers. Various thread profiles, lengths, diameters and drive heads are available to suit specific geographic requirements and SUYU can help with product specification and selection
Description:
| Grade | 4.6 | 5 .6 | 8.8 |
| Material | Q235 | 35# | 45# |
| Mechanical | Tensile strength: ≥ 400Mpa | Tensile strength: ≥ 500Mpa |
Tensile strength: ≥ 800Mpa |
| Yield strength: ≥ 240Mpa | Yield strength: ≥ 300Mpa | Yield strength: ≥ 640Mpa | |
| Elongation: ≥ 22% | Elongation: ≥ 20% | Elongation: ≥ 12% | |
| Cold bending: 90 degree | |||
| without crack | |||
| Surface | plain (oiled) , Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | ||
| Standard refers | ISO898-1, UIC864-1, and NF F500-50 | ||
Advantage:
We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.
Order Hints:
MOQ: based on your product
Delivery time:Within 30days after order confirmed
Shipment: sea freight
Payment term: T/T 30% deposit, balance before shipment; LC
Our product range:
1. We produce the rail sleeper screw spikes for the USA with the standard ASTMA66-87, cold bending 90 degree without cracks. Standard strength 65000PSI or high strength 100000psi is available.
Diameter: 3/4", 7/8", 15/16"
Length: 5-1/2", 6", 7", 8", 10"
Grade: 4.6, 5.6, 8.8
Material: Q235, 35#, 45#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
2. Rail sleeper screw spikes with big disk are mostly used in South America and Africa
A taper of 1mm in the core and thread diameters towards to the point of the screw over the portion shown parallel is allowed, provided the tolerance on the diameter at the upper end is not exceeded. The material for the rail sleeper screw is complying with British standard N 15-1961.
Diameter: 22mm, 23mm
Length: 115mm, 133mm, 178mm
Grade: 4.6, 5.6
Material: Q235, 35#
3. Sleeper screw 3V meets with NF F50-006, Grade 4.6 and 5.6. The mechanical properties are in accordance with NF F 50006, tension strength 700MPA (min), elongation 12% (min), and cold bending 30 degree without crack.
Grade: 4.6, 5.6
Material: Q235, 35#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
MOQ: 5000PCS
|
Type |
Dimension(mm) |
Weight (Kg) |
|
V20-135 |
M20×135 |
0.438 |
|
V23-115 |
M23×115 |
0.48 |
|
V23-135 |
M23×135 |
0.55 |
|
V23-155 |
M23×155 |
0.62 |
|
V23-215 |
M23×215 |
0.78 |
|
V26-115 |
M26×115 |
0.55 |
4. Screw spike for wooden sleeper (high tension screw spike)
Size: 15/16×6-1/2
Surface Treatment: Plain (waxed), Black painting
MOQ: 5000PCS
Packing: 38PCS in 50LB plastic keg
|
Tensile Strength |
Yield Strength |
Elongation |
Reduction of Area |
Hardness |
|
120,000psi(min) |
92,000psi(min) |
14%(min) |
35%(min) |
HRC22-HRC32 |
Full size carbon steel screw spikes shall stand being bent cold 45degree around a pin three times, the spike's diameter without crack on the outside of the bent portion.
Material: 45#, heat treatment
5. Coach screw is used for the mining industry in South Africa
Diameter: 18mm
Length: 65mm and 75mm
Material: Q195 and Q235
Surface Treatment: Zinc
Grade: 4.6
6. DHS35 rail sleeper screw spike, supports the use of the SKL14 rail fastening system
Diameter: 24mm
Length: 158mm and 161mm
Grade: 4.6, 5.6, 8.8
Material: Q235, 35#, 45#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
