Square Head Permagrip Timber Screw Spike Railway Sleeper Screws

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: OEM
Minimum Order Quantity: 10000pcs
Price: Negociable
Packaging Details: 25KG double-layer woven bag with fumigation-free wooden pallet
Delivery Time: 15-25 Days after placing formal order
Payment Terms: T/T, 30% in advance
Supply Ability: 1500 Tons / Month
Product: Railroad Screws Material: Carbon Steel Q235 Or 35#
Color: Black, White Or Yellow Grade: 4.6, 5.6, 8.8, 10.9
Appliaction: In Rail Sleeper To Fasten Rails Another Name: Railway Sleeper Screws
Warranty: Two Years
High Light:

railway sleeper fixing screws

,

black oxide screws

ZhongYue railway fasteners railway accessories rail lock spike


1. Introduce:

Railroad screws provide a mechanical interlock that delivers more than twice the holding power of conventional hammered railway spikes. Screw spikes are commonly used to fasten timber railway ties/sleepers; however, they can also be used in conjunction with plastic ferrules that have been cast into concrete ties/sleepers. Various thread profiles, lengths, diameters and drive heads are available to suit specific geographic requirements and SUYU can help with product specification and selection

2. Specification

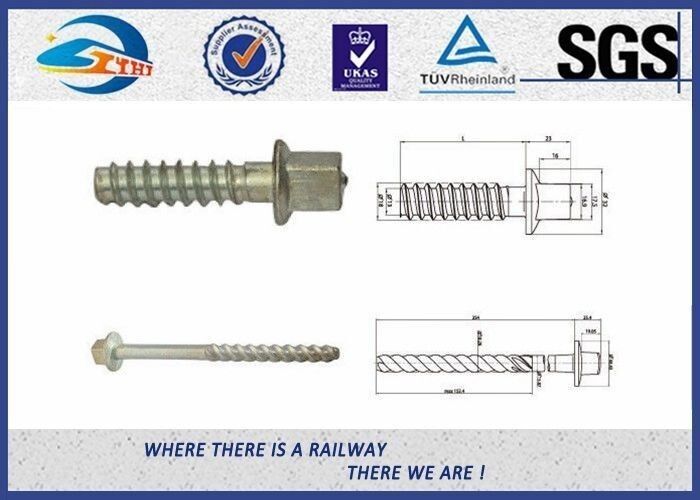

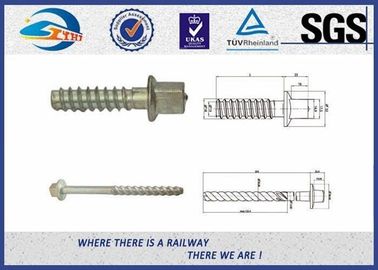

Square Head Permagrip Timber Screw Spike 2 2/3 Pitch Quad Lead Thread

Diameter Length Head Diameter Head Height Head Button Height Head Washer Height Head Overall Height Head Width Head Length Thread Length Nominal
11/16" 6-3/4" 2" 23/32" 1/8" 1/4" 31/32" 7/8" 7/8" 4-5/8"

Square Head w/ Bevel Permagrip Timber Spike 2 2/3 Pitch Quad Lead Thread

Diameter Length Head Diameter Head Height Head Button Height Head Washer Height Head Overall Height Head Width Head Length Thread Length Nominal
11/16" 6-3/4" 2" 1-1/8" 1/8" 13/32" 1-1/8" 7/8" 7/8" 5-3/8"

Rectangle Head w/ Bevel Permagrip Timber Screw Spike 2 2/3 Pitch Quad Lead Thread

Diameter Length Head Diameter Head Height Head Button Height Head Washer Height Head Overall Height Head Width Head Length Thread Length Nominal
11/16" 6-3/4" 2" 23/32" 1/8" 13/32" 1-1/4" 27/32" 1-1/8" 4-5/8"

3. Technical Details

Brand ZHONGYUE
Type Ss5.-150 V20-135
  Ss8-140 V23-115
  Ss8-150 V23-135
  Ss8-160 V23-155
  Ss23-160 V23-215
  Ss25.-165 V26-115
  Ss35.-161
  Or the type by customers’ drawings
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr

Mechanical
properties

Tensile strength:
≥400Mpa

Tensile strength:
≥500Mpa

Tensile strength:
≥800Mpa

Tensile strength:
≥1000Mpa



Yield strength:
≥240Mpa

Yield strength:
≥300Mpa

Yield strength:
≥640Mpa

Yield strength:
≥900Mpa

  Elongation:≥22% Elongation:≥20% Elongation:≥12% Elongation:≥9%


Cold bending:
90 degree without crack

Cold bending:
90 degree without crack

Cold bending:
90 degree without crack

Cold bending:
90 degree without
crack

Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing

Standard
refers

ISO898-1, UIC864-1, and NF F500-50



4. Advantage:

We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.



5. Order Hints:

MOQ: based on your product

Delivery time:Within 30days after order confirmed

Shipment: sea freight

Payment term: T/T 30% deposit, balance before shipment; LC



6. Photos for Reference

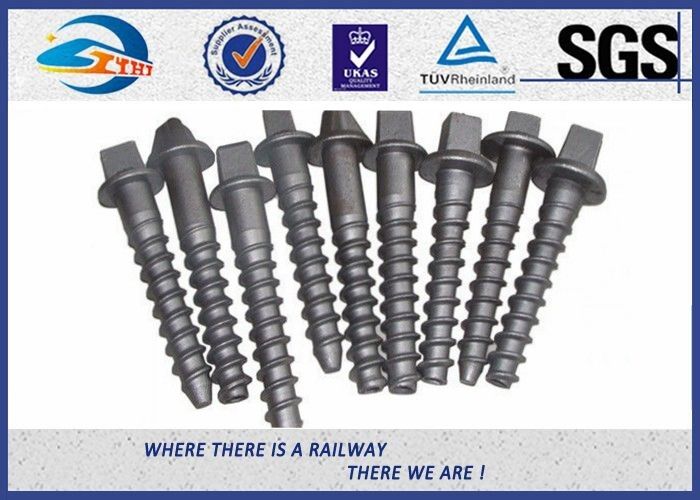

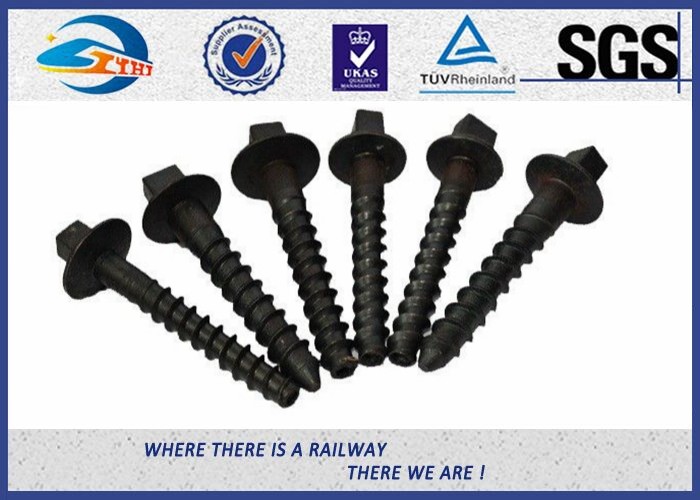

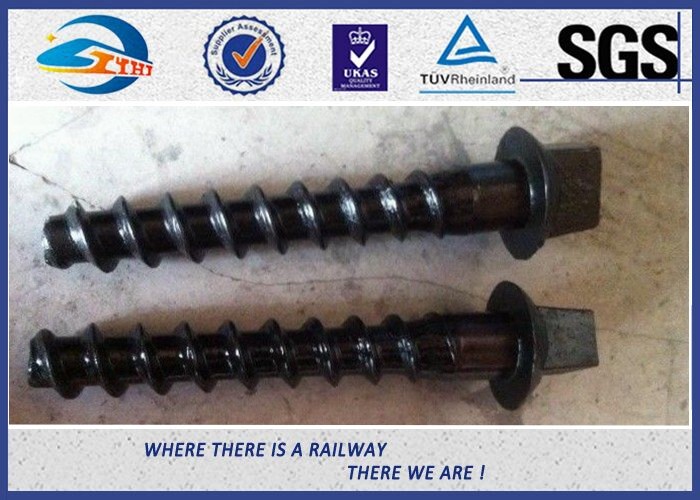

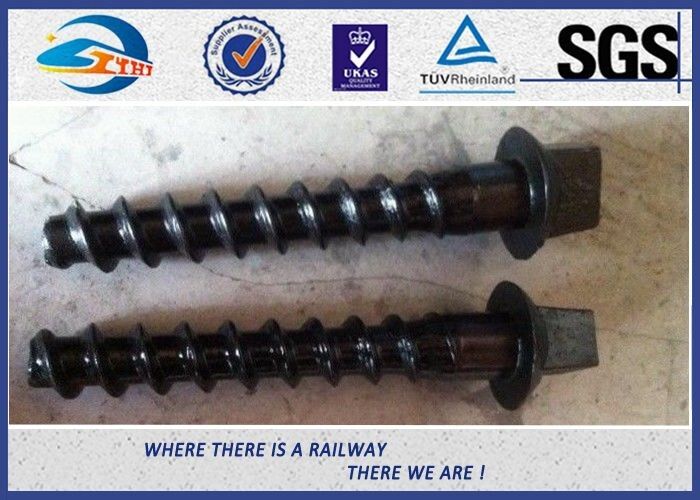

Square Head Permagrip Timber Screw Spike Railway Sleeper Screws 0

7. Package:
Square Head Permagrip Timber Screw Spike Railway Sleeper Screws 1
