Carbon Steel Q235 Railway Spike Hot Dog Machine Railroad Screw 5.6 Grade

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: OEM
Minimum Order Quantity: 10000pcs
Price: Negociable
Packaging Details: 25KG double-layer woven bag with fumigation-free wooden pallet
Delivery Time: 15-25 Days after placing formal order
Payment Terms: T/T, 30% in advance
Supply Ability: 1500 Tons / Month
Product: Carbon Steel Q235 Railway Spike Hot Dog Machine Railroad Screw 5.6 Grade Material: Carbon Steel Q235 Or 35#
Color: Black, White Or Yellow Grade: 4.6, 4.8, 5.6, 8.8, 10.9, 12.9, Etc
Appliaction: In Rail Sleeper To Fasten Rails Sample: Available
Warranty: Two Years
High Light:

stainless steel coach screws

,

black oxide screws

ZhongYue Carbon Steel Q235 Railway Spike Hot Dog Machine Railroad Screw 5.6 Grade



1. Introduce:

A rail screw spike, also called sleeper screw, rail screw or lag bolt, is a medium or large metal screw used to fasten a rail base plate or rail. Such spikes are always fastened into holes bored into the tie sleeper, sometimes together with imbedded plastic dowels, popularly used for rails with wooden sleepers, especially in America and Canada.





2. Technical Details

Product Tensile Strength Yield Strength Elongation Reduction of Area Hardness
High Tensile Screw 120,000psi(min) 92,000psi(min) 14%(min) 35%(min) HRC22-HRC32





3. Standard:

AREMA, DIN571, Europe standard or other standard required by clients.

4. Specification:

Diameter from 12mm to 27mm, without lenth limited.

5. Grade:

ASTM A307, ASTM A325, Grade 4.6, 4.8, 5.6, 5.8, 8.8

6. Surface:

Black, zinc white, zinc yellow, hot dip galvanised, zinc infiltrated.

7. Advantage:

We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.



8. Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ DP clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert

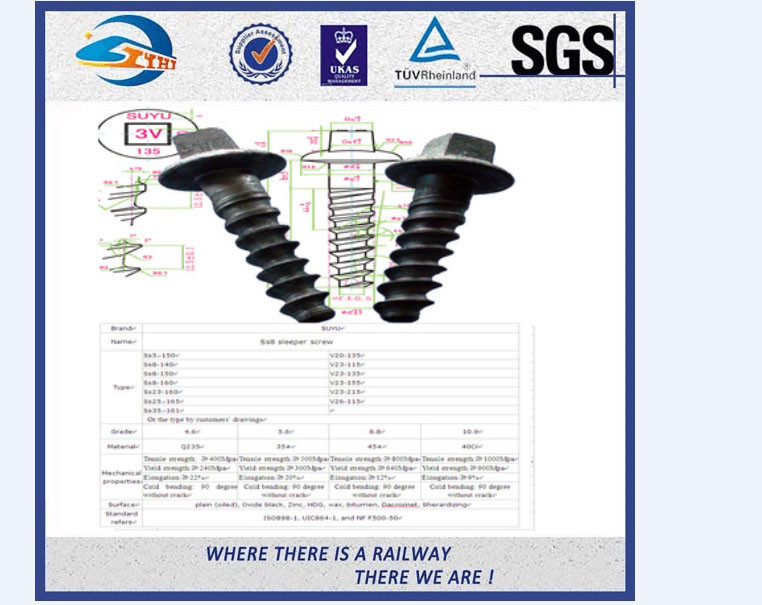

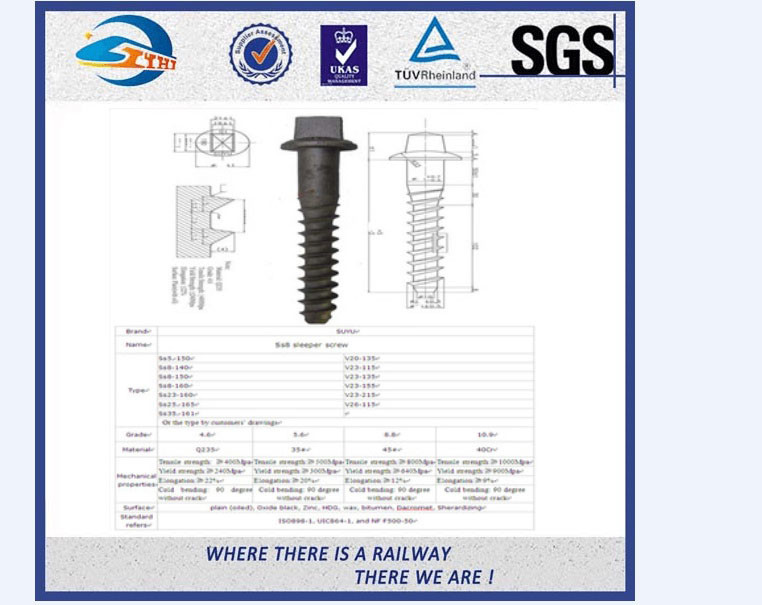

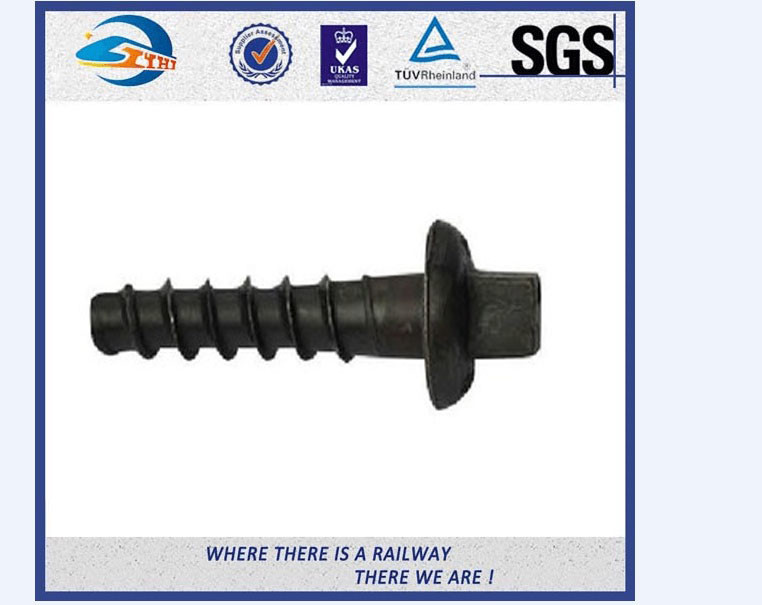

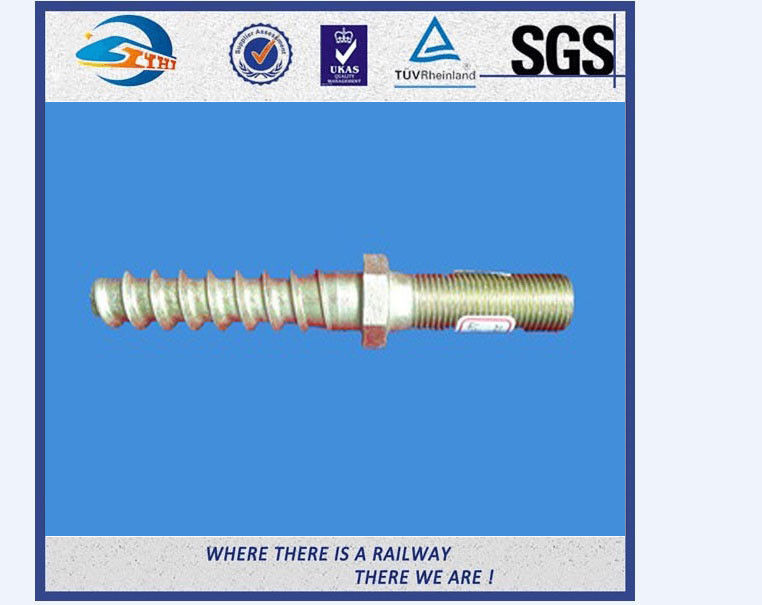

9. Photos for Reference

Carbon Steel Q235 Railway Spike Hot Dog Machine Railroad Screw 5.6 Grade 0Carbon Steel Q235 Railway Spike Hot Dog Machine Railroad Screw 5.6 Grade 1
