Black ISO Railway Sleeper Screws High Tension Screw Spike 15/16×6-1/2

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: Custom-made
Minimum Order Quantity: 10000pcs
Price: Negociable
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 15-30 work days after getting payment
Payment Terms: T/T, 30% in advance
Supply Ability: 600,000 pcs per month
Product Name: Black ISO Screws For Railway Sleepers Railroad Coach Screw Spike M24 Application: Railroad, High Speed Way Etc
Grade: 4.6, 5.6, 8.8, 10.9 Material: Q235, 35#, 45#, 40Cr
Surface: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet Standard: ISO898-1, UIC864-1, And NF F500-50
High Light:

stainless steel coach screws

,

railway sleeper fixing screws

Black ISO Screws For Railway Sleepers Railroad Coach Screw Spike M24



1. Introduce:

Railroad screws spikes provide a mechanical interlock that delivers more than twice the holding power of conventional hammered railway spikes. Screw spikes are commonly used to fasten timber railway ties/sleepers; however, they can also be used in conjunction with plastic ferrules that have been cast into concrete ties/sleepers. Various thread profiles, lengths, diameters and drive heads are available to suit specific geographic requirements and SUYU can help with product specification and selection





2. Products description



1. We produce the rail sleeper screw spikes for the USA with the standard ASTMA66-87, cold bending 90 degree without cracks. Standard strength 65000PSI or high strength 100000psi is available.
Diameter: 3/4", 7/8", 15/16"
Length: 5-1/2", 6", 7", 8", 10"
Grade: 4.6, 5.6, 8.8
Material: Q235, 35#, 45#


2. Rail sleeper screw spikes with big disk are mostly used in South America and Africa
A taper of 1mm in the core and thread diameters towards to the point of the screw over the portion shown parallel is allowed, provided the tolerance on the diameter at the upper end is not exceeded. The material for the rail sleeper screw is complying with British standard N 15-1961.
Diameter: 22mm, 23mm
Length: 115mm, 133mm, 178mm
Grade: 4.6, 5.6
Material: Q235, 35#

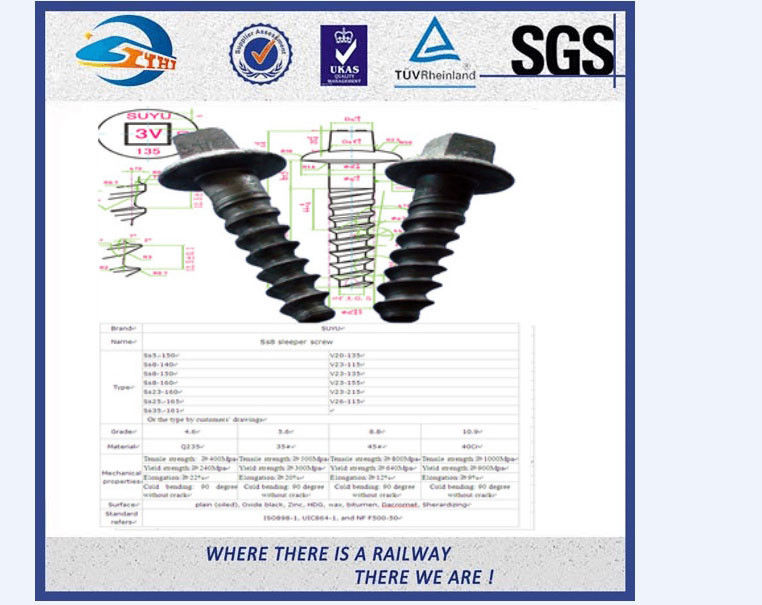

3. Sleeper screw 3V meets with NF F50-006, Grade 4.6 and 5.6. The mechanical properties are in accordance with NF F 50006, tension strength 700MPA (min), elongation 12% (min), and cold bending 30 degree without crack.
Grade: 4.6, 5.6
Material: Q235, 35#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG



Type

Dimension(mm)

Weight (Kg)

V20-135

M20×135

0.438

V23-115

M23×115

0.48

V23-135

M23×135

0.55

V23-155

M23×155

0.62

V23-215

M23×215

0.78

V26-115

M26×115

0.55


4. Screw spike for wooden sleeper (high tension screw spike)
Size: 15/16×6-1/2
Surface Treatment: Plain (waxed), Black painting



Tensile Strength

Yield Strength

Elongation

Reduction of Area

Hardness

120,000psi(min)

92,000psi(min)

14%(min)

35%(min)

HRC22-HRC32



Full size carbon steel screw spikes shall stand being bent cold 45degree around a pin three times, the spike's diameter without crack on the outside of the bent portion.
Material: 45#, heat treatment


5. Coach screw is used for the mining industry in South Africa
Diameter: 18mm
Length: 65mm and 75mm
Material: Q195 and Q235
Surface Treatment: Zinc
Grade: 4.6


6. DHS35 rail sleeper screw spike, supports the use of the SKL14 rail fastening system
Diameter: 24mm
Length: 158mm and 161mm
Grade: 4.6, 5.6, 8.8
Material: Q235, 35#, 45#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG


7. Rail sleeper screw spike with round thread, according to the standard NF-F 50014
Grade: 4.6, 5.6, 8.8
Material: Q235, 35#, 45#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG

8.Timber drive spikes can reduce installation and maintenance costs. The spikes are used for timber construction highway crossing planks and panels, bridge and trestle guard rails, motor car set-off, docks, etc. The washer head is single forged and the excellent holding power of threads provides tight installation. The spikes are easily installed, driven with a maul or pneumatic spike driver. They cannot be overdriven and are easily removed for reuse with a hand or power tool. The drive spikes are available for a wide variety of installations and maintenance of way, and meet with the standard ASTMA66-87, cold bending 90 degree without crack.

Main Size: 5/8×10 and 7/8×7
Grade: 5.6
Material: 35#
Surface Treatment: Zinc or according to clients' requirement



Tensile Strength

Yield Strength

Elongation 2"

414Mpa

207Mpa

>18%





3. Our advantage:

Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.

We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.



4. Package



1. 25kg per double layer woven bag+ free fumigation wooden pallet

36bags/pallet, 24pallets/container

2. in according with your request



5. Photo reference:

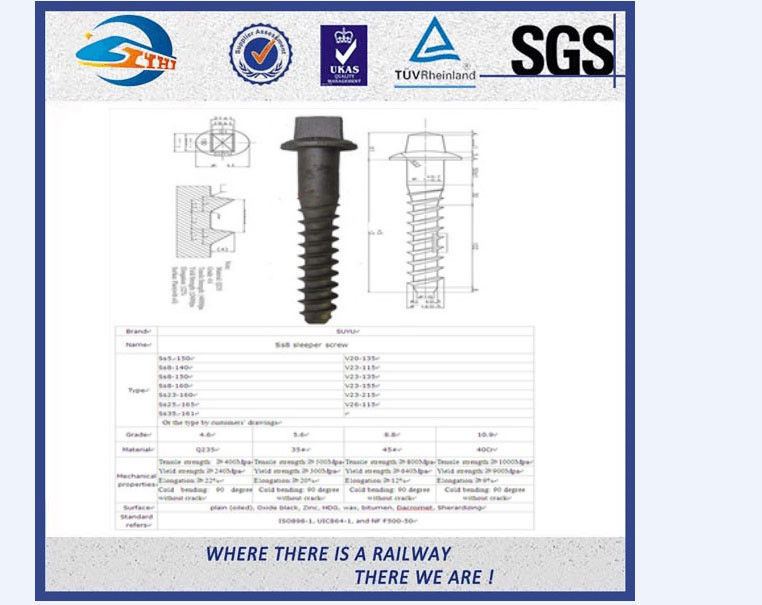

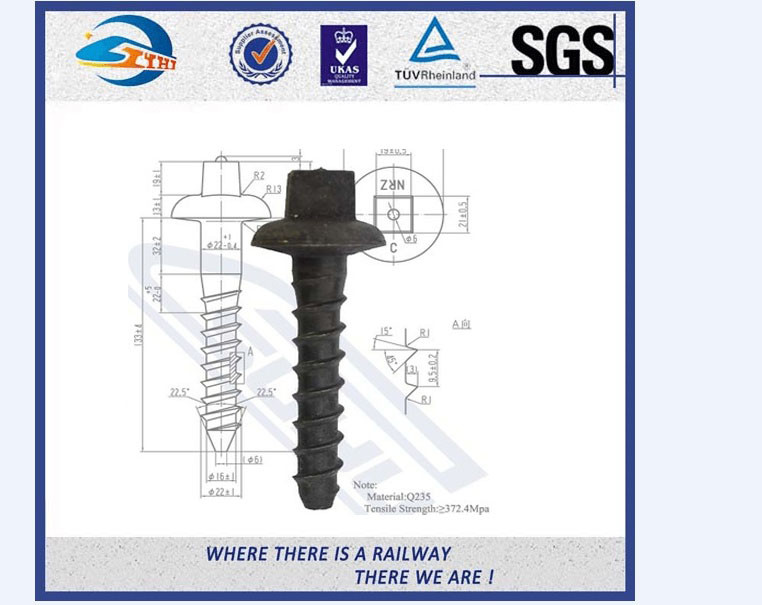

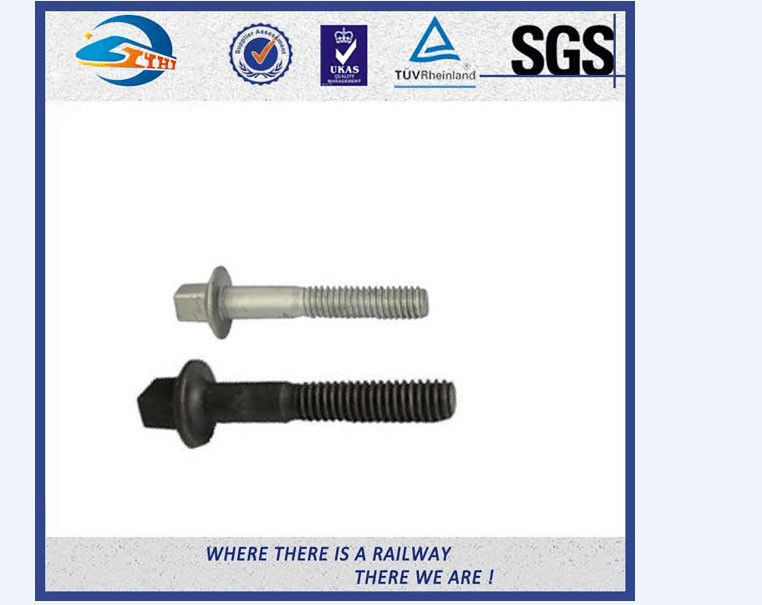

Black ISO Railway Sleeper Screws High Tension Screw Spike 15/16×6-1/2 0Black ISO Railway Sleeper Screws High Tension Screw Spike 15/16×6-1/2 1
