35# 45# 40Cr Lag Bolt Railway Sleeper Screws Track Spikes NF F500-50

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: custom-made
Minimum Order Quantity: 10000pcs
Price: Negociable
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 15-30 work days after getting payment
Payment Terms: T/T, 30% in advance
Supply Ability: 600,000 pcs per month
Product Name: Railroad Spike, Track Spikes, Screw Spikes For Railway Application: Railroad
Grade: 4.6, 5.6, 8.8, 10.9 Material: Q235, 35#, 45#, 40Cr
Surface: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet Standard: ISO898-1, UIC864-1, And NF F500-50
Warranty: Two Years
High Light:

railway sleeper fixing screws

,

black oxide screws

ZhongYue railroad spike, track spikes, screw spikes for railway







1. Introduce:A rail screw spike, also called sleeper screw, rail screw or lag bolt, is a medium or large metal screw used to fasten a rail base plate or rail. Such spikes are always fastened into holes bored into the tie sleeper, sometimes together with imbedded plastic dowels, popularly used for rails with wooden sleepers, especially in America and Canada.





2. Specification:

Material
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr
Mechanical properties Tensile strength: ≥400Mpa Tensile strength:≥500Mpa Tensile strength:≥800Mpa Tensile strength:≥1000Mpa
Yield strength:≥240Mpa Yield strength:≥300Mpa Yield strength:≥640Mpa Yield strength:≥900Mpa
Elongation:≥22% Elongation:≥20% Elongation:≥12% Elongation:≥9%
Cold bending: 90 degree without crack
Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing






3. Advantage:

We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.





4. Order Hints:

MOQ: based on your product

Delivery time:Within 30days after order confirmed

Shipment: sea freight

Payment term: T/T 30% deposit, balance before shipment; LC





5. Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ DP clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert

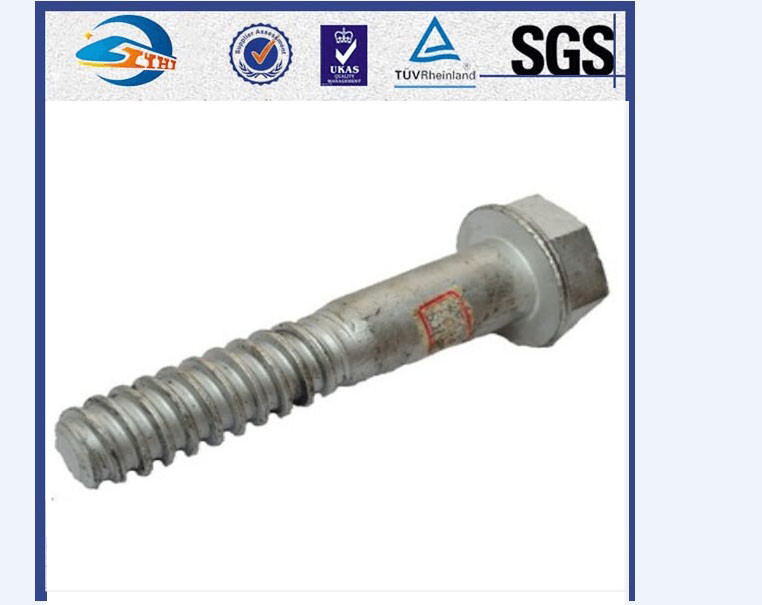

6. Photos for Reference

35# 45# 40Cr Lag Bolt Railway Sleeper Screws Track Spikes NF F500-50 0
