| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | Screw Spike |
| Minimum Order Quantity: | 10000pcs |
| Price: | Negociable |
| Packaging Details: | 25Kg plastic bags and wooden pallets or according to clients' requirement |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 500,000pcs per month |
| Product: | Screw Spike | Material: | Q235(main) |
|---|---|---|---|
| Dimensions (L X W X H) (mm): | 1.5x2x3 | Application: | Fastening Part |
| Main Surface Treatment: | Plain(oiled); Black Oxide | Certification: | ISO9001:2008 |
| High Light: | stainless steel coach screws,railway sleeper fixing screws |
||

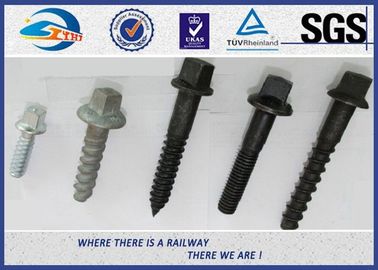

Coach Railway Sleeper Screws Square Head Black Oxide Screws
Specifications:
ZHONGYUE is engaged in manufacturing and supplying a wide range of rail sleeper screw. Designed with high precision and processed under advanced technologies, these rail sleeper screws are manufactured using high grade raw materials, satisfying all the quality standards. With reliability, robustness and effective performance, these products can be used in railway engineering.
Rail sleeper screw spikes are used to fasten sole plates and ribbed base plates to wooden sleepers. In rail construction with the concrete sleepers, the rail sleeper screw is used in combination with a plastic dowel pressed in the concrete sleeper, indirect or direct fastenings of rails on concrete and wooden sleepers.Characteristically, the sleeper screw thread may only be produced in a hot-forming operation. The different shapes of the head correspond to the pass form of the respective spanner used for fastening and loosening of the rail sleeper screws.
|
Brand |
ZHONGYUE |
|||
|
Name |
Screw Spike |
|||
|
Type |
Ss5.-150 |
V20-135 |
||
|
Ss8-140 |
V23-115 |
|||
|
Ss8-150 |
V23-135 |
|||
|
Ss8-160 |
V23-155 |
|||
|
Ss23-160 |
V23-215 |
|||
|
Ss25.-165 |
V26-115 |
|||
|
Ss35.-161 |
|
|||
|
Or the type by customers’ drawings |
||||
|
Grade |
4.6 |
5.6 |
8.8 |
10.9 |
|
Material |
Q235 |
35# |
45# |
40Cr |
|
Mechanical properties |
Tensile strength: ≥400Mpa |
Tensile strength:≥500Mpa |
Tensile strength:≥800Mpa |
Tensile strength: ≥1000Mpa |
|
Yield strength:≥240Mpa |
Yield strength:≥300Mpa |
Yield strength:≥640Mpa |
Yield strength: ≥900Mpa |
|
|
Elongation:≥22% |
Elongation:≥20% |
Elongation:≥12% |
Elongation:≥9% |
|
|
Cold bending: 90 degree without crack |
Cold bending: 90 degree without crack |
Cold bending: 90 degree without crack |
Cold bending: 90 degree without crack |
|
|
Surface |
plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing |
|||
|
Standard refers |
ISO898-1, UIC864-1, and NF F500-50 |
|||
Established in 2013, ZHONGYUE has become one of the largest manufacturer of Railway fasteners in China. Our products are manufactured according to international standards such as ASTM, DIN, BS, JIS, AS, NF, ISO, and GB. They are inspected
frequently by BV, SGS, and ABS. We have been granted ISO9001:2008 certificate and supply products to famous companies
such as VAE, Hilti,Vossloh etc. We are a qualified supplier of Canada railway, Kazakhstan railway, American railway,
Zambia railway, Thailand railway, Indonesia railway, Malaysia railway, Sweden railway, New Zealand railway, South Africa railway etc.
