| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | Rail Track Spike |
| Minimum Order Quantity: | 10000pcs |
| Price: | Negociable |
| Packaging Details: | 200LB kegs and wooden pallets or according to clients' requirement |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 500,000pcs per month |
| Product Name: | Track Spike | Material: | Q235, Low Carbon Steel |
|---|---|---|---|
| Application: | Railway | Grade: | 4.6, A370, ASTM, A65 Gr1, Gr2 |
| Surface: | Plain (oiled) Black Oxide | Standard: | GB/T 1346, GOST5812, AREMA, JIS E1108 |
| Sample: | Be Available | Dimensions: | According To Drawings |
| High Light: | rail road spikes,boat spikes |
||

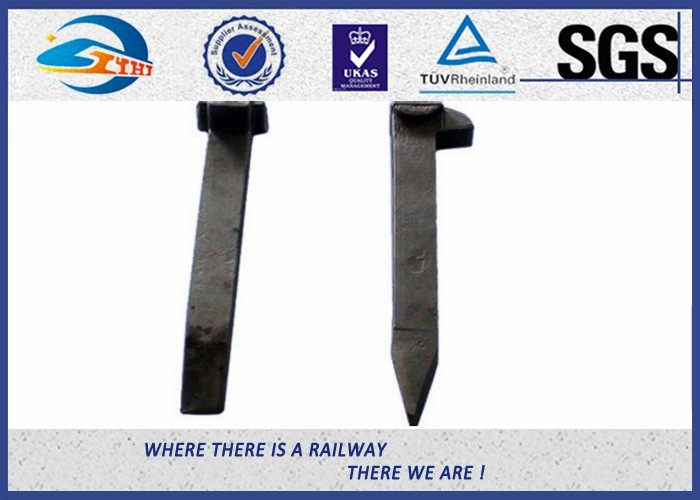

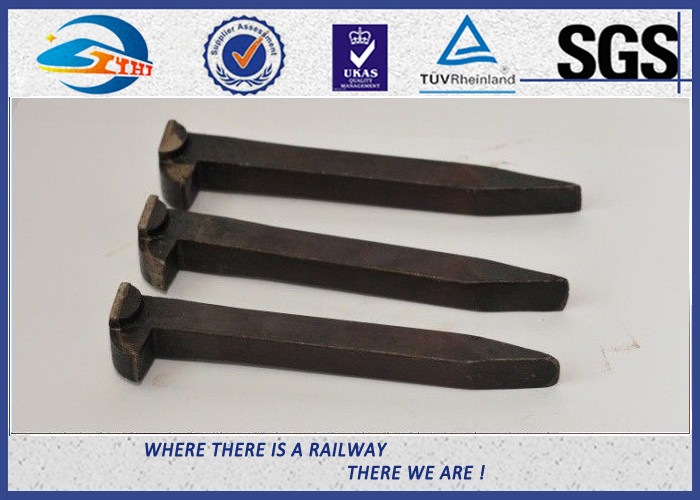

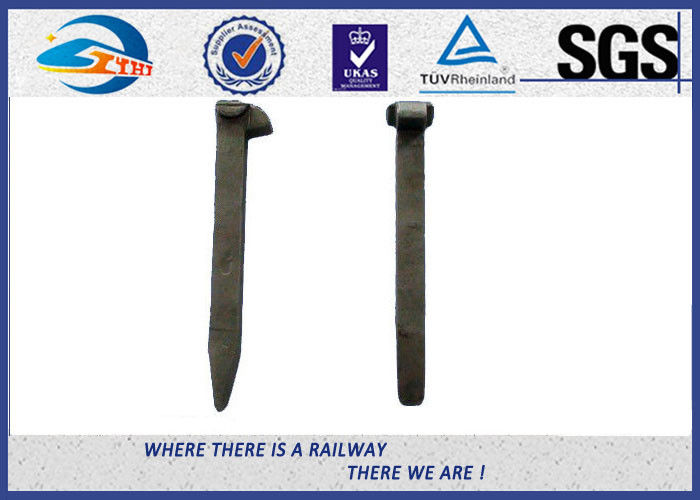

The rail spike ranges in use in many countries from coal and gold mines to sugar plantations, peat works,
garden festivals and leisure parks, as well as in some heavy rail applications.
Our rail spike or dog spikes are manufactured in accordance with a number of international standards
such as GB, AREMA or ASTM, BS, UIC material, in either carbon or stainless steel.
Dog spikes are available in varying sizes to suit most applications. Zhongyue can supply a range of popular
rail spikes, at economical prices, including the typical examples
|
Brand |
ZY |
||||||||
|
Name |
railway track spike |
||||||||
|
Size |
16x16xL |
16x16xL |
5/8”x5/8”xL |
3/8”x3/8”xL |
16x16x170 |
16x16x150 |
9/16"xL |
square |
square 16mm |
|
5/8"x5/8"x5" |
5/8"xL |
10mm |
19mm |
||||||
|
|
|
16mm |
Dia.22mm |
||||||
|
Grade |
4.6 |
4.6 |
A370 |
ASTM A65 Gr1,Gr2 |
4.6 |
4.6 |
ASTM A65 Gr1,Gr2 |
4.6 |
4.6 |
|
Material |
Q235 |
low carbon steel |
Q235 |
Q235 |
low carbon steel |
low carbon steel |
low carbon steel |
SS41 |
low carbon steel |
|
Surface |
plain (oiled) |
||||||||
|
Standard refers |
GB/T 1346 |
GOST5812 |
AREMA |
AREMA |
Ss-EN10025 |
BS70R, BS60R |
AREA |
JIS E1108 |
AS 1085.8 |
We can also produce the lock spike in many sizes according to our customers' requirement. The lock
spike is used to fix elastic fastening base plates on a wooden sleeper. We offer lock spikes made with
top quality, making them sturdy and efficient in functioning. We manufacture our lock spikes with superior
quality raw substances which ensure their durability for a long run and we are considered the most
trusted exporter.
Sticking to our quality first policy, ZY pays great attention to quality control
management. We have been granted ISO9001-2008 certificates and have received the production
license of China's Railway Ministry on railway products. We have a full set of inspection instruments to
ensure all our rail spike products are of high quality and up to customers' requirements.
As a leading manufacturer of rail fastening based in China, ZY also produces many other railway
fasteners, such as track bolt, sleeper screw, rail anchor, rail joint bar, tie plate, rail clip, elastic rail clip,
SKL tension clamp, rail shoulder, and so on.
