Place of Origin: | China |
---|---|
Brand Name: | ZhongYue |
Certification: | ISO9001:2015 |
Model Number: | 4.6 Track Spike |
Minimum Order Quantity: | 10000pcs |
Price: | Negociable |
Packaging Details: | 25Kg plastic bags and wooden pallets or according to clients' requirement |
Delivery Time: | about 30 work days after getting payment |
Payment Terms: | T/T, 30% in advance |
Supply Ability: | 600,000 pcs per month |
Product Name: | Track Spike | Application: | Railway |
---|---|---|---|
Grade: | 4.6, 5.6 | Material: | Q235 / 35# |
Surface: | Zinc, HDG | Standard: | ISO898-1, UIC864-1, And NF F500-50 |
High Light: | railway dog spikes,boat spikes |

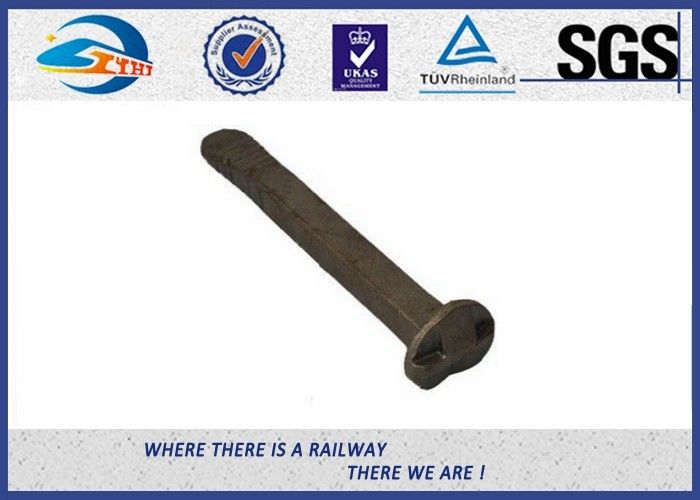

Standard Plain Railroad Track Spike Dog Screw Spikes Carbon Steel 4.6 Grade
Zhongyue can supply a range of track spikes manufactured to international standards according to BS, ASTM and DIN, among others. Zhongyue has extensive experience in the rail industry and a high level of expertise in this specialized field. Zhongyue can manufacture any quantity, big or small, and offers a range of finishes including hot dipped galvanized, black, sherardized or self color for the budget conscious.
Track spikes are used to fasten sole plates and ribbed base plates to wooden sleepers. direct fastenings of rails on concrete and wooden sleepers. Characteristically, the sleeper screw thread may only be produced in a hotforming operation. The different shapes of the head correspond to the pass form of the respective spanner used for fastening and loosening of the rail sleeper screws.
Material
Grade | 4.6 | 5 .6 |
Material | Q235 | 35# |
Mechanical | Tensile strength: ≥ 400Mpa | Tensile strength: ≥ 500Mpa |
Yield strength: ≥ 240Mpa | Yield strength: ≥ 300Mpa | |
Elongation: ≥ 22% | Elongation: ≥ 20% | |
Cold bending: 90 degree | ||
without crack | ||
Surface | plain (oiled) , Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | |
Standard refers | ISO898-1, UIC864-1, and NF F500-50 |
Note (4.8 as a sample)
the first 4: tensile strength of material Q235 is 400MPa;
the second 0.8: the yield ratio is 0.8;
the yield strength of material Q235 is 400MPa x 0.8 =320 MPa.
MOQ: 3.0Tonnes per model
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement
Process
Surface Treatment
Other Surface treatment
Inspection machine
Package
1. 25kg per double layer woven bag+ free fumigation wooden pallet
36bags/pallet,
24pallets/container
2. Keg
3. in according with your request
Application
Similarity
1. We produce the rail sleeper screw spikes for the USA with the standard ASTMA66-87, cold bending 90 degree without cracks. Standard strength 65000PSI or high strength 100000psi is available.
Diameter: 3/4", 7/8", 15/16"
Length: 5-1/2", 6", 7", 8", 10"
Grade: 4.6, 5.6, 8.8
Material: Q235, 35#, 45#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
2. Rail sleeper screw spikes with big disk are mostly used in South America and Africa
A taper of 1mm in the core and thread diameters towards to the point of the screw over the portion shown parallel is allowed, provided the tolerance on the diameter at the upper end is not exceeded. The material for the rail sleeper screw is complying with British standard N 15-1961.
Diameter: 22mm, 23mm
Length: 115mm, 133mm, 178mm
Grade: 4.6, 5.6
Material: Q235, 35#
3. Sleeper screw 3V meets with NF F50-006, Grade 4.6 and 5.6. The mechanical properties are in accordance with NF F 50006, tension strength 700MPA (min), elongation 12% (min), and cold bending 30 degree without crack.
Grade: 4.6, 5.6
Material: Q235, 35#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
MOQ: 5000PCS
Type |
Dimension(mm) |
Weight (Kg) |
V20-135 |
M20×135 |
0.438 |
V23-115 |
M23×115 |
0.48 |
V23-135 |
M23×135 |
0.55 |
V23-155 |
M23×155 |
0.62 |
V23-215 |
M23×215 |
0.78 |
V26-115 |
M26×115 |
0.55 |
4. Screw spike for wooden sleeper (high tension screw spike)
Size: 15/16×6-1/2
Surface Treatment: Plain (waxed), Black painting
MOQ: 5000PCS
Packing: 38PCS in 50LB plastic keg
Tensile Strength |
Yield Strength |
Elongation |
Reduction of Area |
Hardness |
120,000psi(min) |
92,000psi(min) |
14%(min) |
35%(min) |
HRC22-HRC32 |
Full size carbon steel screw spikes shall stand being bent cold 45degree around a pin three times, the spike's diameter without crack on the outside of the bent portion.
Material: 45#, heat treatment
5. Coach screw is used for the mining industry in South Africa
Diameter: 18mm
Length: 65mm and 75mm
Material: Q195 and Q235
Surface Treatment: Zinc
Grade: 4.6
6. DHS35 rail sleeper screw spike, supports the use of the SKL14 rail fastening system
Diameter: 24mm
Length: 158mm and 161mm
Grade: 4.6, 5.6, 8.8
Material: Q235, 35#, 45#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
If you have any other models of rail/ rail fastener, welcome to contact me.
