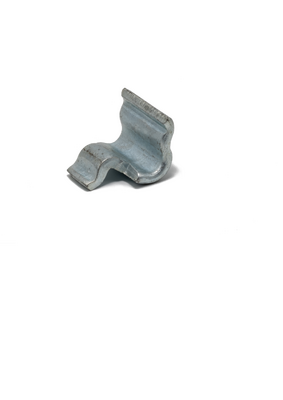

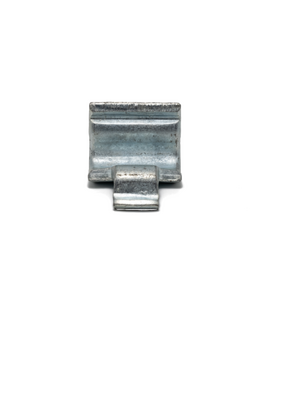

High Strength Rail Weld Shoulder For Precise Alignment And Uniform Heat Distribution

Key Functions:

• Alignment: Provides precise mating surfaces for accurate rail alignment before welding

• Heat Distribution: Ensures uniform heat distribution during the welding process

• Fusion Quality: Creates optimal conditions for complete metallurgical bonding

• Strength: Contributes to the final weld strength and fatigue resistance

Preparation Process:

The weld shoulder is typically prepared by:

• Machining: Using specialized rail end milling machines to create precise profiles

• Grinding: Manual or automated grinding to achieve the required surface finish

• Cleaning: Thorough cleaning to remove contaminants that could affect weld quality

Technical Specifications:

• Surface Finish: Typically requires Ra 3.2-6.3 μm surface roughness

• Angle: May have specific bevel angles (commonly 30-45 degrees) depending on welding method

• Gap: Maintains precise gap distance between rail ends (usually 25-30mm for thermite welding)

Importance:

Proper weld shoulder preparation is critical for:

• Preventing weld defects (inclusions, porosity, lack of fusion)

• Ensuring consistent weld quality and mechanical properties

• Meeting railway industry standards (EN 14587, AREMA standards)

• Achieving long service life and reducing maintenance requirements

The quality of the weld shoulder directly impacts the integrity of the continuous welded rail (CWR) system, which is essential for modern high-speed and heavy-haul railway operations.
