Din 536 Crane Rail A100 A120 , Crane Rail A65 Material 700 900A

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: A55, A75, A100, A120
Minimum Order Quantity: 20 tons
Price: Negociable
Packaging Details: In bundle
Delivery Time: 7 days after received your payment
Payment Terms: T/T, 30% in advance
Supply Ability: 30,000pcs per month
Product Name: Steel Rail Application: Railway
Material: 700, 900A Surface: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet
Standard: DIN536 Length: 10-12m
The Stock: In Stock Size: A55,A65,A75,A100,A120
High Light:

railroad steel rail

,

steel rail track

Din 536 Crane Rail A100 A120, Crane Rail A65,  Material 700, 900A

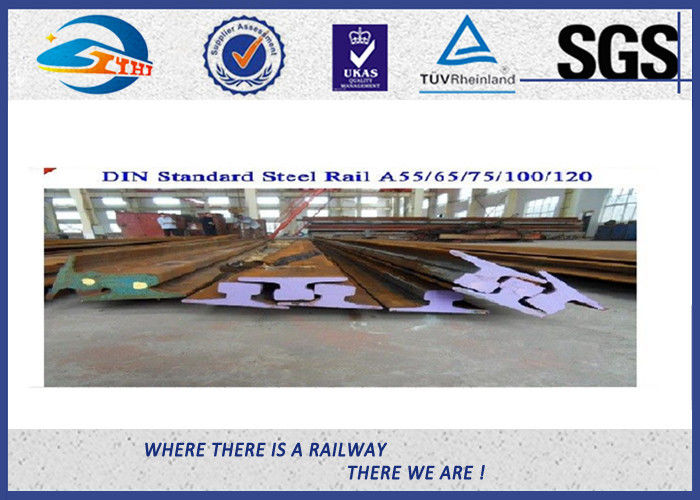

DIN Standard Steel Rail

Standard: DIN536





Specifications



Standard: DIN536

Size

Dimension(mm)

Weight
(kg/m)

Material

Length (m)

Head(mm)

Height(mm)

Bottom(mm)

Web(mm)

A55

55

65

150

31

31.8

900A

10-12

A65

65

75

175

38

43.1

900A

10-12

A75

75

85

200

45

56.2

900A

10-12

A100

100

95

200

60

74.3

900A

10-12

A120

120

105

220

72

100

900A

10-12

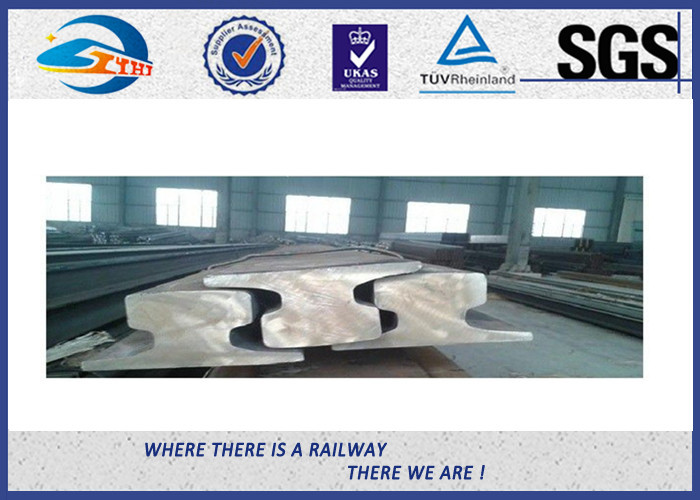

Din 536 Crane Rail A100 A120 , Crane Rail A65 Material 700 900A 0



Packing:

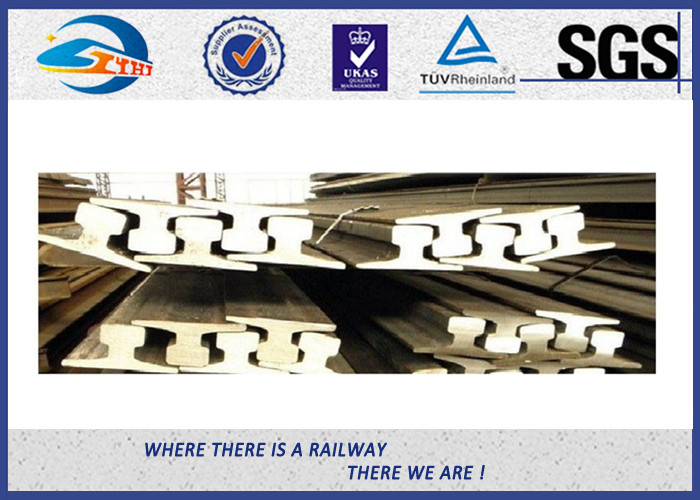

Din 536 Crane Rail A100 A120 , Crane Rail A65 Material 700 900A 1







All of the following goods can be produced or customized.





1. Rail fastening system



  Type :1) E type Rail fastening 2)KPO Rail Fastening 3) Nabla Rail Fastening 4) SKL 14 Rail Fastening 5) SKL13/12 Rail fastening



2. Screw spike/Sleeper screw, dog spike/Track spike



3. Clip bolt/ T bolt /Rail bolt/Clamp bolt /Inserted bolt/Track bolt/Fish bolt/Square bolt



4. Tie plate /Base plate /Rail plate/Rail fixing base



5 . Fish plate /Joint bar



6. Elastic clip/ Clamp plate/Rail clamp/Anchor plate



7 . Rail pad, EVA,HDPE or Rubber pad/ Plastic dowel /Guide plate



8. Brake block including composite brake block and cast iron brake shoe.



9. Rail anchor/ crane clip/ rail clip and rail shoulder



10. Steel Rail including light rail and heavy rail( Crane rail, Gooved rail).
