| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | 16x16x165 |
| Minimum Order Quantity: | 10000pcs |
| Price: | Negociable |
| Packaging Details: | 25Kg plastic bags and wooden pallets or according to clients' requirement |
| Delivery Time: | 15-30 work days after getting payment |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 600,000 pcs per month |
| Product Name: | Dog Spike | Application: | Railroad |
|---|---|---|---|
| Grade: | 4.6, 4.8, 5.6 | Material: | Q235 / 35# |
| Surface: | Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet | Standard: | ISO898-1, UIC864-1, And NF F500-50 |
| High Light: | rail road spikes,railway dog spikes |
||
AREM Q235 Carbon Steel Driving Railroad Spikes / Rail Road Spike
Technical Parameters
| Grade | 4.6 | 5 .6 | 8.8 |
| Material | Q235 | 35# | 45# |
| Mechanical | Tensile strength: ≥ 400Mpa | Tensile strength: ≥ 500Mpa |
Tensile strength: ≥ 800Mpa |
| Yield strength: ≥ 240Mpa | Yield strength: ≥ 300Mpa | Yield strength: ≥ 640Mpa | |
| Elongation: ≥ 22% | Elongation: ≥ 20% | Elongation: ≥ 12% | |
| Cold bending: 90 degree | |||
| without crack | |||
| Surface | plain (oiled) , Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | ||
| Standard refers | ISO898-1, UIC864-1, and NF F500-50 | ||
|
Brand |
Zhongyue |
||||||||
|
Name |
railway track spike |
||||||||
|
Size |
16x16xL |
16x16xL |
5/8”x5 /8”xL |
3/8”x3/8”xL |
16x16x 170 |
16x16 x150 |
9/16"xL |
square |
square 16mm |
|
5/8"x5/ 8"x5" |
5/8"xL |
10mm |
19mm |
||||||
|
|
|
16mm |
Dia. 22mm |
||||||
|
Grade |
4.6 |
4.6 |
A370 |
ASTM A65 Gr1, Gr2 |
4.6 |
4.6 |
ASTM A65 Gr1,Gr2 |
4.6 |
4.6 |
|
Material |
Q235 |
low carbon steel |
Q235 |
Q235 |
low carbon steel |
low carbon steel |
low carbon steel |
SS41 |
low carbon steel |
|
Surface |
plain (oiled) |
||||||||
|
Standard refers |
GB/T 1346 |
GOST 5812 |
AREMA |
AREMA |
Ss-EN10025 |
BS70R, BS60R |
AREA |
JIS E1108 |
AS 1085.8 |

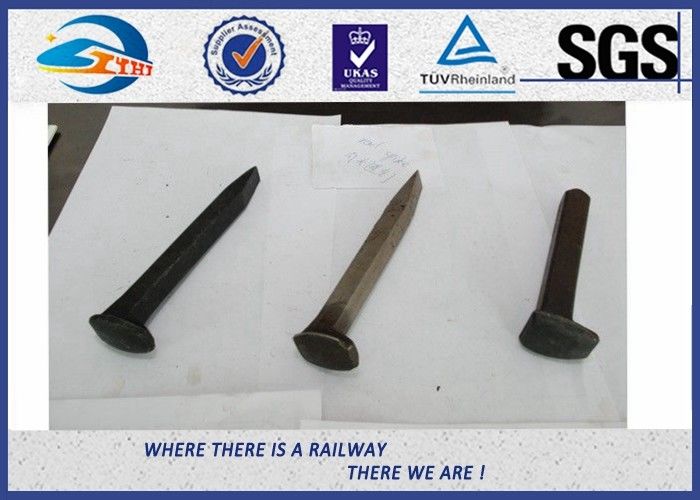

Samples Show:

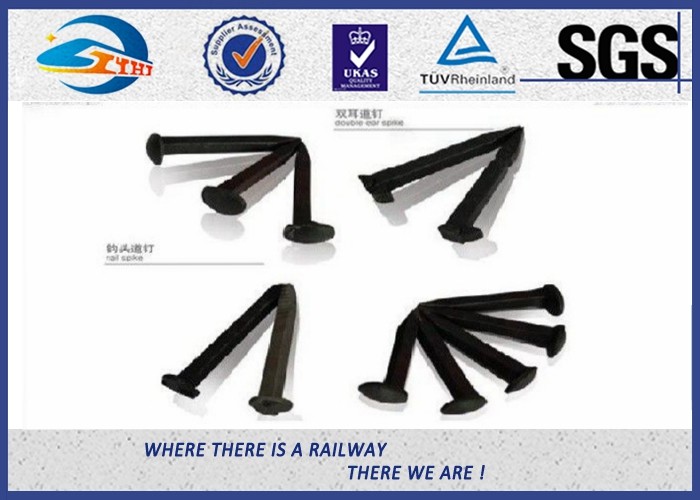

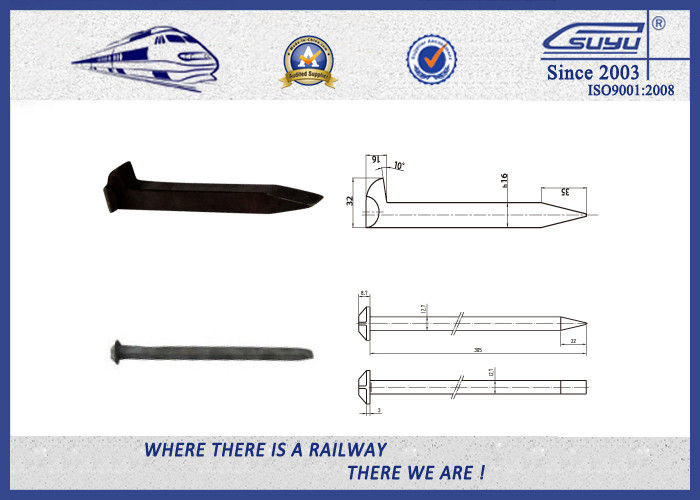

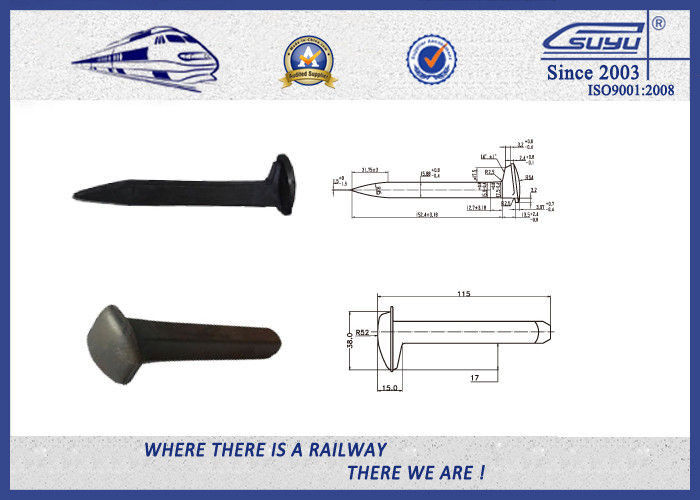

Main Types Of Spikes
Package
25kg per double layer woven bag+ free fumigation wooden pallet
