Ss series sleeper screw with washer for Railway Fastening System

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: SS35
Minimum Order Quantity: 10000pcs
Price: Negociable
Packaging Details: 25kg Cartons or woven bags onwooden pallet , 36 bags/pallets , 24 pallets/container
Delivery Time: 25-30days after receiving advance payment
Payment Terms: T/T, 30% in advance
Supply Ability: 15000pcs per week
Product Name: Railway Fastening Ss Sleeper Screw With Washer/ Screws And Fasteners Material: Q235, 35#, 45#
Grade: 4.6/5.6/5.8/6.8/8.8 Surface: Plain/black/hdg/yellow Zinc
Standard: ASTM Cold Bending::: 90 Degree Without Crack
Tensile Strength:: ≥414Mpa

Railway Fastening Ss sleeper screw with washer/ screws and fasteners





We are largest manufacturer & supplier of comprehensive range of Railway SPIKES to our valued clients as per given specifications. These are available at market leading price, Also widely appreciated for its durability, corrosion resistance, and easy maintenance.

Washer Head Timber Drive screw, Spiral spike,coach screws

One of the most popular rigid rail fixation items, are extensively used to tighten the rail track on wooden or concrete tie. Screw Spikes are used for fixing tie plates on the wooden ties in pre-bored holes and with plastic inserts pre-cast in concrete sleepers. They are extensively used on high-speed tracks with the extremely popular H.M. fastening.





Name 5.6 Grade 35# Screw Spike DIN Standard High Hardness
Type Ss5.-150 V20-135
  Ss8-140 V23-115
  Ss8-150 V23-135
  Ss8-160 V23-155
  Ss23-160 V23-215
  Ss25.-165 V26-115
  Ss35.-161
  Or the type by customers’ drawings
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr

Mechanical

properties

Tensile strength:

≥400Mpa

Tensile strength:

≥500Mpa

Tensile strength:

≥800Mpa

Tensile strength:

≥1000Mpa

  Yield strength:≥240Mpa Yield strength:≥300Mpa Yield strength:≥640Mpa Yield strength:≥900Mpa
  Elongation:≥22% Elongation:≥20% Elongation:≥12% Elongation:≥9%


Cold bending:

90 degree without crack

Cold bending:

90 degree without crack

Cold bending:

90 degree without crack

Cold bending:

90 degree without crack

Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refers ISO898-1, UIC864-1, and NF F500-50

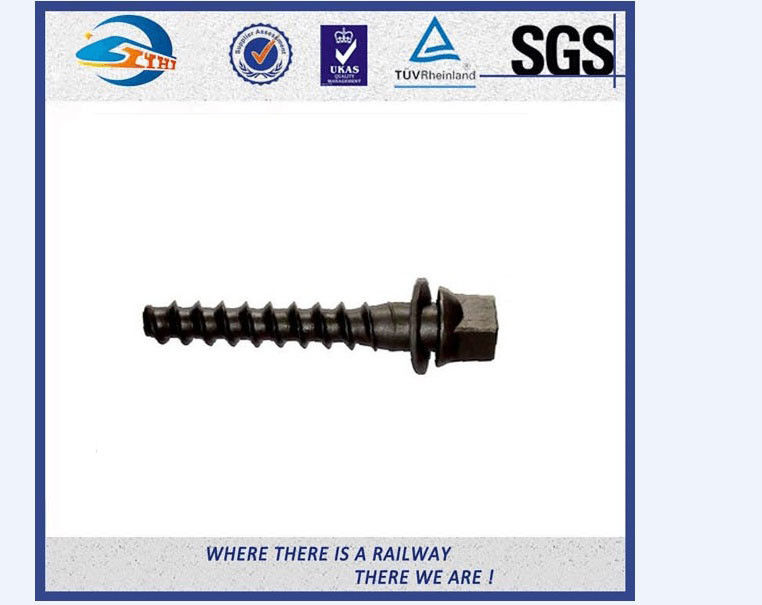

Ss series sleeper screw with washer for Railway Fastening System 0

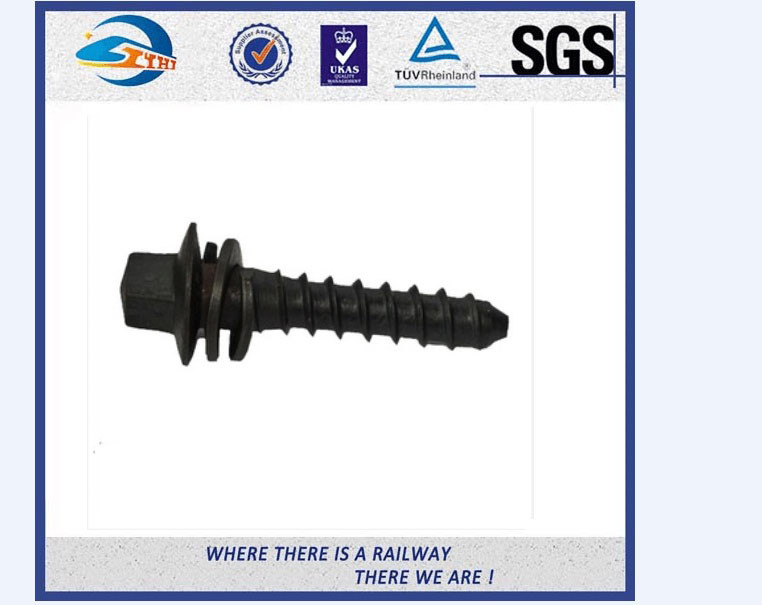

Ss series sleeper screw with washer for Railway Fastening System 1

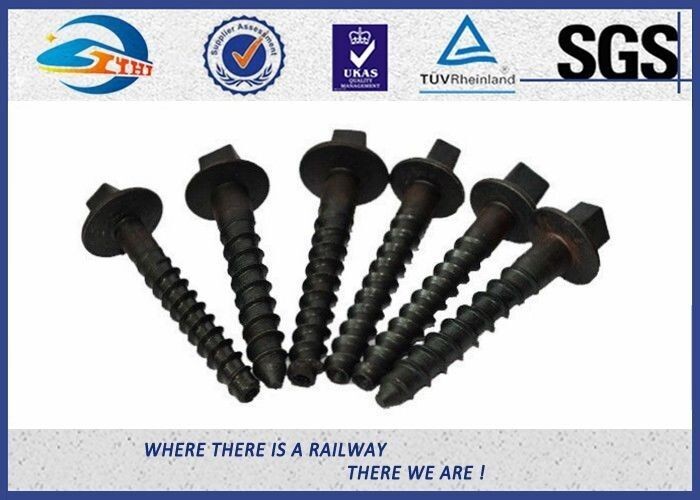

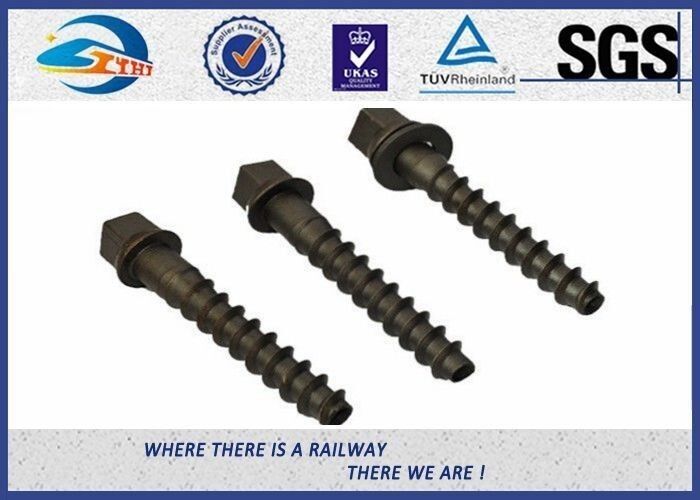

Ss series sleeper screw with washer for Railway Fastening System 2Ss series sleeper screw with washer for Railway Fastening System 3





Packaging Of Railway Fastening Ss sleeper screw with washer/ screws and fasteners

25Kg double-layer woven bags with free-fumigration wooden pallet,

36bags/pallets,

24pallets/container,

or according to customers' requirement





We own a full set of strict quality control system to produce rail clips, from raw material purchasing till the finished clip application. There’s a professional inspection team to check about each process of the production line and every two hour out of the line.



Zhongyue's products ranges:







Corrosion Resistance Elastic Rail Clips E Clips Fasteners 12mm - 20mm

ZHONGYUE is Professional Rail Clamp Supplier in China

We are leading rail clamp manufacturer , We manufactures all types of rail clamps, In obedience with customers' altered requirements and necessities, we are indulged in presenting premium quality of rail clamps to the clients. ZHONGYUE is professional rail clamp supplier in China, our rail clamps are developed by using latest technology and sturdy metal due to which these exhibit corrosion resistant finish, high performance and longer service life. and rail clamps can be well used in the acid rain area due to protection level over 9.Before shipping to customer every time, all clamps need to pass the 120h test of sulfur dioxide. In addition our rail clamps with the most competitive price.



All these rail fasteners are customized accordingly to the samples or drawings sent by customer.

Should you have any interests on anyone of these, pls feel free to inquiry us
