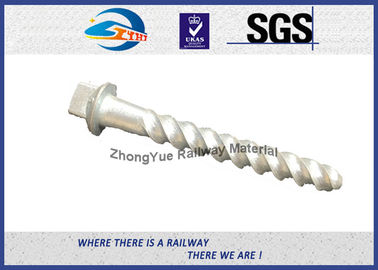

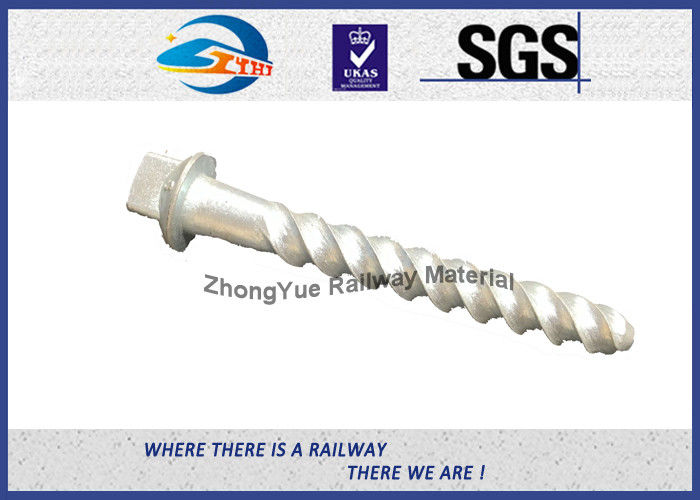

High Tensile Grade 4.6 Railway Sleeper Twist Spike Spirial Screws HDG Q235

 Railway Sleeper Twist Spike Spirial Screws

Other Name:Twist Spike ,Spirial Screws, Track Spike, Sleeper Screw

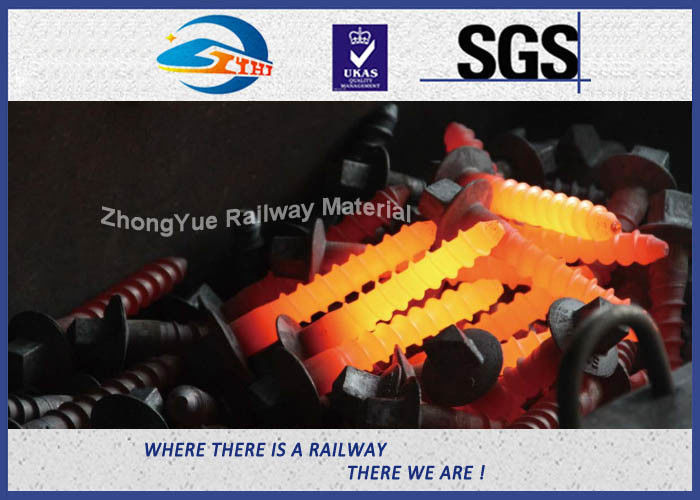

Railway sleeper screw spikes are used to fasten sole plates and ribbed base plates to wooden sleepers. In rail construction with the concrete sleepers, the rail sleeper screw is used in combination with a plastic dowel pressed in the concrete sleeper, indirect or direct fastenings of rails on concrete and wooden sleepers. Characteristically, the sleeper screw thread may only be produced in a hotforming operation. The different shapes of the head correspond to the pass form of the respective spanner used for fastening and loosening of the rail sleeper screws.

ZY can supply a range of rail sleeper screw spikes manufactured to international standards according to BS, ASTM and DIN, among others. ZHONGYUE has extensive experience in the rail industry and a high level of expertise in this specialized field. ZHONGYUE can manufacture any quantity, big or small, and offers a range of finishes including hot dipped galvanized, black, sherardized or self color for the budget conscious.

The screw spike costs more to manufacture than the dog spike or dog nail, but has the advantage of greater fixing power; approximately twice that of a dog spike, and can be used in combination with spring washers.


Material

Note ( 8.8 as a sample)

the first 8: tensile strength of material 45# is 800MPa;

the second 0.8: the yield ratio is 0.8;

the yield strength of material 45# is 800MPa x 0.8 = 640 MPa.

MOQ: 5000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement

Process

1. Raw material
2. Wiredrawing
3. Cutting

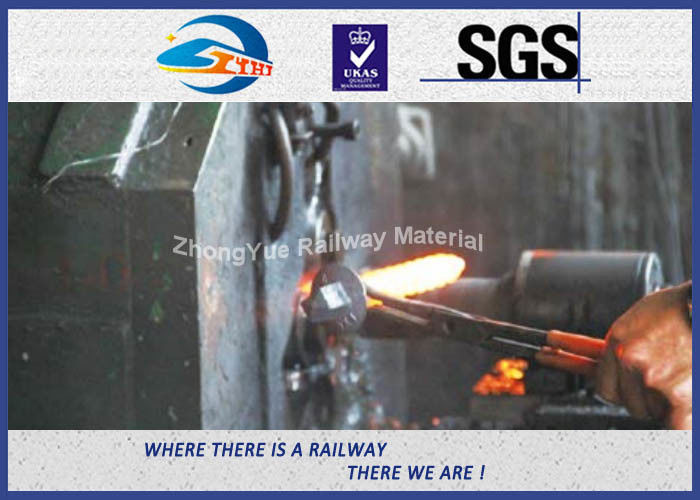

4. Head forming
5. Heat treatment
6. Surface treatment
7. Final inspection
8. Packing
9. Shippment.

Surface Treatment

1. plain (oiled)
2. color paint
3. oxide Black (most choice)
4. galavazing
5. DHG

Inspection machine

1. Brinell Hardness Tester
2. Carbon and Sulfur Analyzer
3. Rockwell Hardness Machine
4. Automatic Impact Testing Machine
5. Metallographic Microscope
6. Automatic High-speed Analyzer
7. Fatigue Testing Machine
8. Metallographic Specimen Polishing Machine
9. Metallographic Specimen Pointing Machine

Package

1. 25kg per double layer woven bag+ free fumigation wooden pallet

    36bags/pallet,

    24pallets/container

2. in according with your request

Similarity

1. We produce the rail sleeper screw spikes for the USA with the standard ASTMA66-87, cold bending 90 degree without cracks. Standard strength 65000PSI or high strength 100000psi is available.

2. Rail sleeper screw spikes with big disk are mostly used in South America and Africa
 provided the tolerance on the diameter at the upper end is not exceeded. The material for the rail sleeper screw is complying with British standard N 15-1961.

3. Sleeper screw 3V meets with NF F50-006, Grade 4.6 and 5.6. The mechanical properties are in accordance with NF F 50006, tension strength 700MPA (min), elongation 12% (min), and cold bending 30 degree without crack.


4. Screw spike for wooden sleeper (high tension screw spike)


Full size carbon steel screw spikes shall stand being bent cold 45degree around a pin three times, the diameter without crack on the outside of the bent portion.
Material: 45#, heat treatment
5. Coach screw is used for the mining industry in South Africa


6. DHS35 rail sleeper screw spike, supports the use of the SKL14 rail fastening system


7. Rail sleeper screw spike with round thread, according to the standard NF-F 50014


8. Rail sleeper screw spike with two ends, fixes the rail together with the Nabla clip system. This spike is very popular in Africa. We use special material TD16 to produce the sleeper screw to meet with the bending test, bending 30 degree and straightening it, without crack.


9. Timber drive spikes can reduce installation and maintenance costs. The spikes are used for timber construction highway crossing planks and panels, bridge and trestle guard rails, motor car set-off, docks, etc. The washer head is single forged and the excellent holding power of threads provides tight installation. The spikes are easily installed, driven with a maul or pneumatic spike driver. They cannot be overdriven and are easily removed for reuse with a hand or power tool. The drive spikes are available for a wide variety of installations and maintenance of way, and meet with the standard ASTMA66-87, cold bending 90 degree without crack.
Main Size: 5/8×10 and 7/8×7
Grade: 5.6
Material: 35#
Surface Treatment: Zinc or according to clients' requirement
MOQ: 5000PCS
Packing: 200LB kegs and wooden pallets or according to clients' requirement


10. Screw spike with slotting head, as per UIC864-1
Size: 24×131 and 24×150
Grade: 4.6
Material: Q235
Surface Treatment: Plain, Black painting or according to clients' requirement
MOQ: 5000PCS
Packing: Plastic bags and wooden pallets
