| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | ZHONGYUE Railway coach Screws Spike |
| Minimum Order Quantity: | 10000pcs |
| Price: | Negociable |

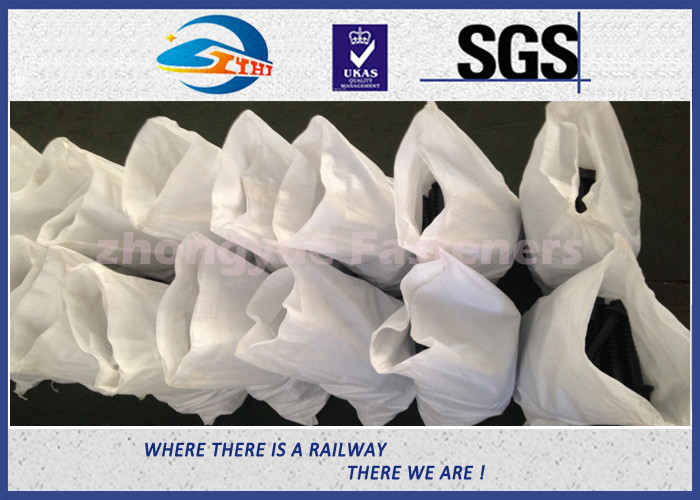

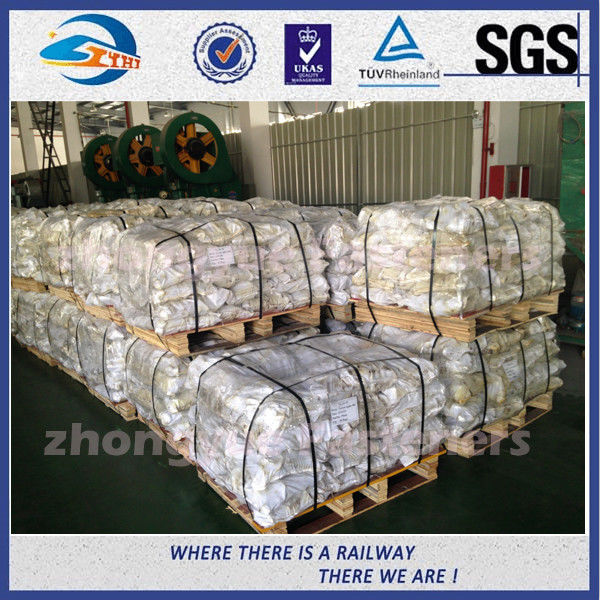

| Packaging Details: | 25kg Cartons or woven bags onwooden pallet , 36 bags/pallets , 24 pallets/container |
| Delivery Time: | 10 to 30 days according to your order quantity |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 10,000pcs per week |
| Product Name:: | Material 45# Railway Custom Railroad Track Spikes , Threaded Screw Spike | Application:: | Railway, Subway, Mine |
|---|---|---|---|
| Material:: | Q235, 35#, 45#, 40Cr | Surface Treatment:: | HDG, Oil, Oxide Black, Wax |
| Brand:: | Zhongyue | Grade:: | 4.6, 4.8, 5.6, 8.8 |
| Standard:: | ISO898-1, UIC864-1, And NF F500-50 | Hardness:: | 43-47 |
| Tensile Strength:: | ≥800Mpa | Yield Strength:: | ≥640Mpa |
| Elongation:: | ≥12% | Cold Bending:: | 90 Degree Without Crack |
| Customization:: | Acceptable | Samples:: | Available |
| Highlight: | stainless steel coach screws,railway sleeper fixing screws |
||
Screw spike/Sleeper screw, Coach screw/ Drive screw/Dog spike/ Track spike/ Railway spike
Rail track spike is mainly used for rail and wooden sleeper, is used for connecting the steel rail and sleeper or pad and a fastener sleeper.
Description:
| Grade | 4.6 | 5 .6 | 8.8 |
| Material | Q235 | 35# | 45# |
| Mechanical | Tensile strength: ≥ 400Mpa | Tensile strength: ≥ 500Mpa |
Tensile strength: ≥ 800Mpa |
| Yield strength: ≥ 240Mpa | Yield strength: ≥ 300Mpa | Yield strength: ≥ 640Mpa | |
| Elongation: ≥ 22% | Elongation: ≥ 20% | Elongation: ≥ 12% | |
| Cold bending: 90 degree | |||
| without crack | |||
| Surface | plain (oiled) , Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | ||
| Standard refers | ISO898-1, UIC864-1, and NF F500-50 | ||
Screw spike/Sleeper screw, Coach screw/ Drive screw/Dog spike/ Track spike/ Railway spike
Screw spike/Sleeper screw, Coach screw/ Drive screw/Dog spike/ Track spike/ Railway spike
Advantage:
We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.
specialize in producing rail fastening , screw spikes are our main products , these screws spikes are used to fasten sole plates & ribbed base plates to wooden sleepers. In the rail constructions with the concrete sleepers these screws are used in combination with a plastic dowel pressed in concrete sleeper . Below is some of our main products .
1. Ss series , according to UIC864-1 , grade from 4.6 .5.6 .8.8
Surface : plain (oiled ) .Zinc .Hdg
Material : Q235 .35#. 45#
| Type | Dimension (mm) | Weight (Kg) |
| Ss5.-150 | M24×150 | 0.545 |
| Ss8-140 | M24×140 | 0.528 |
| Ss8-150 | M24×150 | 0.548 |
| Ss8-160 | M24×160 | 0.568 |
| Ss23-160 | M24×160 | 0.645 |
| Ss25.-165 | M24×165 | 0.625 |
| Ss35.-161 | M24×160 | 0.657 |
2. Screw spikes with the standard ASTMA66-87 , cold bending 90 degree without cracks .
| Tensile strength | Yield strength | Elongation 2" |
| 414Mpa | 207Mpa | >18% |
| Diameter | 3/4" 7/8" 15/16" |
| Length | 5-1/2" 6" 7" 8" 10" |
3. Screw spike mostly used in South American and Africa with big disk
| Diameter | 22mm 23mm |
| Length | 115mmm 133mmm 178mm |
| Grade | 4.6 5.6 |
| Material | Q235 35# |
4. 3V sleeper screw meet with NF F50-006 , grade 4.6 &5.6 , the mechanical properties are in accordance with UIC864-1 standard .
| Type | Dimension(mm) | Weight (Kg) |
| V20-135 | M20×135 | 0.438 |
| V23-115 | M23×115 | 0.48 |
| V23-135 | M23×135 | 0.55 |
| V23-155 | M23×155 | 0.62 |
| V23-215 | M23×215 | 0.78 |
| V26-115 | M26×115 | 0.55 |
5. High tensile screw spike 15/16×6-1/2
| Tensile strength | Yield strength | Elongation | Reduction of area | Hardness |
| 120,000psi(min) | 92,000psi(min) | 14%(min) | 35%(min) | HRC22-HRC32 |
Full size carbon steel screw spikes shall stand being bent cold 45degree around a pin 3 times the spike's diameter without crack on the outside of the bent portion .
Material 45# , heat treatment .
This type screw spike is widely used in North American .
6. Coach screw used for mining industry
| Size | weight (Kg) | Surface | Grade |
| 18×65 | 0.15 | Zinc | 4.6 |
| 18×75 | 0.165 | Zinc | 4.6 |
7. DHS35 screw spike , Supporting the use of the SKL14 system .
| Size | Weight(Kg) | Surface | Grade |
| 24×158 | 0.65Kg | Plain/YZ | 5.6 |
| 24×161 | 0.66Kg | Plain/YZ | 5.6 |
8. Screw spike 22×115 , assembly with SKL1 system with the grade 5.6 , according to the standard NF-F 50014 .
9 Special screw spike 23×174 , fix the rail together with the Nabla clip system, very popular in Africa ,We use the special material TD16 to produce the screw to meet with the bending test , bending 30 degree and straightening it , without crack .
10 .Dive spikes are available for a wide installations & maintenance of way , meet with the standard ASTMA66-87 , cold bending 90 degree without crack
Size 5/8×10 & 7/8×7 , Surface ZINC
| Tensile strength | Yield strength | Elongation 2" |
| 414Mpa | 207Mpa | >18% |
As a leading manufacturer of rail fastening in China , SUYU also can produce many other railway fasteners , such as track bolt . track spike .rail anchor .fish plate . Base plate .rail clips and so on .
Sticking to the “quality first” policy, SUYU pays great attention to quality control management. We have granted ISO9001-2000 certificates and have got the production license of China’s Railway Ministry on railway products. We have a full set of inspection instruments which makes sure all the products produced by us should be of high quality and up to customers’ requirements.
|

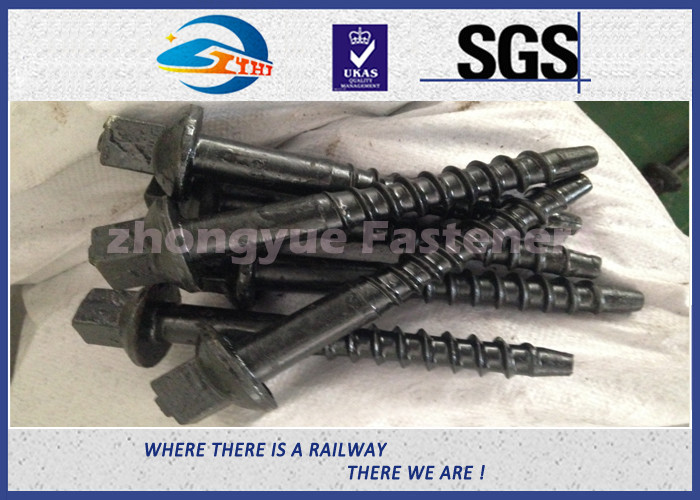

Screw Spike /Sleeper Screw /Coach Screw/Rail Screw Images |
Our product range:
Zhongyue's products ranges:
Company Profile:
Founded in 2013, located at No.199 Huanlou Road, development zone Kunshan city, we Suzhou Zhongyue Railway Material Co., Ltd. Is a leading and reputed manufacturer of qualified railway fasteners in China.
We are certified by ISO 9001:2008. We have a complete set of inspection equipments to strictly control the quality of each production procedure and make sure all the products reach the international standards and customers’ requirements.
ZY team is composed of high professional senior engineers, professional technicians and a group of highly experienced operation workers, this is the strong guarantee of our products quality. We have our own R&D team, after-sales service team and quality-assurance team with the most advance technology and management concepts.
With advanced technology, comprehensive testing facilities, excellent management team and powerful processing capacity, our products have been exported worldwide. After many times of inspections by BV, SGS,ABS etc, our products have been well recognized by our customers. We are qualified supplier of Kazakhstan Railway, Thailand Railway, Zambia Railway, Indonesia Railway, Malaysia Railway, Sweden Railway, New Zealand Railway, American Railway, Canada Railway etc, supplying all kinds of railway material to them for many years without any quality complaint.
We not only can produce according to International standards, customers’ drawings and samples, but also can provide design proposal by our own high standard R&D department.
With the principles of quality first and customers first, ZY Rail enjoys bulk popularity and high reputation at home and abroad, while having many customers all over the world. With powerful strength and broad vision, ZY rail is moving towards internationalization of enterprises.
