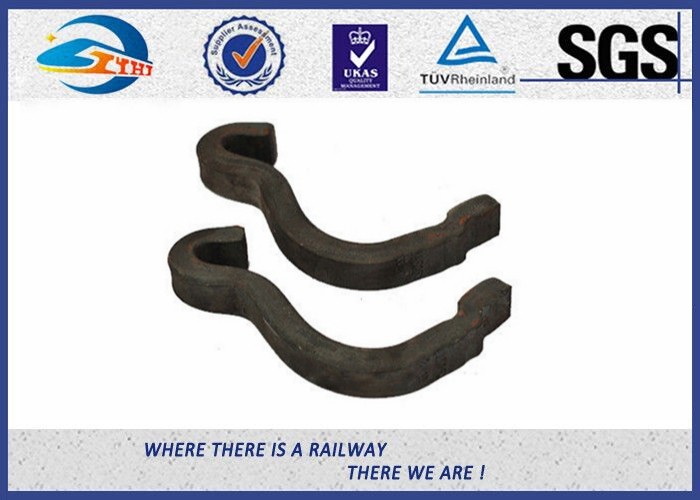

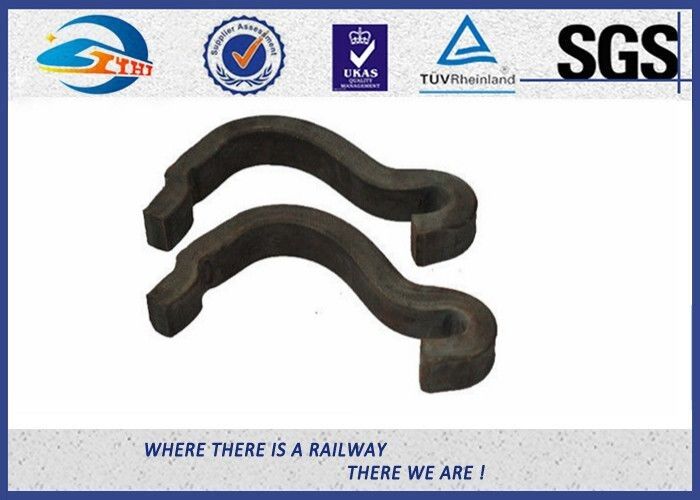

QT500-7 Steel Plain Surface 8.8 Grade Rail Anchor Used for UIC and DIN Standard Rail

China QT500-7 Steel Plain Surface 8.8 Grade Rail Anchor Used for UIC and DIN Standard Rail supplier
QT500-7 Steel Plain Surface 8.8 Grade Rail Anchor Used for UIC and DIN Standard Rail supplier QT500-7 Steel Plain Surface 8.8 Grade Rail Anchor Used for UIC and DIN Standard Rail supplier

Large Image :  QT500-7 Steel Plain Surface 8.8 Grade Rail Anchor Used for UIC and DIN Standard Rail

Product Details:

Place of Origin: Suzhou, China
Brand Name: ZHONGYUE
Certification: TUV, SGS, ISO9001
Model Number: UIC, DIN

Payment & Shipping Terms:

Minimum Order Quantity: 5,000pcs
Price: USD1 - USD4
Packaging Details: 25kg/woven bag, 36 bags/pallet, 24 pallets/container
Delivery Time: 20 -35 days according to your order quantity
Payment Terms: T/T, , L/C
Supply Ability: 100,000pcs per week
Contact Now
Detailed Product Description
Material: QT500-7 Surface: Plain, Oiled, Oxide Black, Color Painting
Application: UIC54, UIC60 Rail Sample: Available
Customization: Acceptable Technology: Forge And Press



QT500-7 Steel Plain Surface 8.8 Grade Rail Anchor Used for UIC and DIN Standard Rail



Rail anchors are manufactured in one piece construction from spring steel or equal, heattreated and designed to eliminate creepage of track. They provide a larage bearing surface against both rail base and tie, avoiding undo cutting and wear, thus prolonging the life of wood ties. All anchors shown above are "drive-on" type anchors which are driven on using a standard spike maul.



Our enhanced version of a widely used drive-on anchor

Compatible with all rail anchor application track machinery

Filed proved and Class I approved

Available in Standard and Heavy Duty styles



Brand

Zhongyue

Name

QT500-7 Steel Plain Surface 8.8 Grade Rail Anchor Used for UIC and DIN Standard Rail

Type

used in 50Kg, 85Kg,90/91LB, 115RE /136RE ,UIC54 & UIC60 rail



Or the type by customers’ drawings

Material

60Si2MnA

45#

QT500-7

Chemical composition(%)

C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35,
P:≤0.03, S:≤0.03

C:0.42-0.50,
Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25,
P:≤0.035, S:≤0.035

C:3.60-3.80,
Mn:≤0.6, Si:2.50-2.90, P:≤0.08,
S:≤0.025

Surface

plain (oiled),color painting

Standard refers

/



Zhongyue rail anchor is made of a special T-shaped spring steel, forged and heat treated for uniform strength and lasting service. Zhongyue rail anchors are a "drive-on" design that offers the following benefits:

  • Provide full rail base contact
  • Distribute creeping loads evenly
  • Eliminate sleeper chewing and climbing
  • Deliver largest sleeper bearing area


Zhongyue rail anchors are available for almost any rail size in two types: for standard applications and heavy duty and challenging installations.

1-Features

Continuous Refinement
Constant appraisal of rail anchor manufacturing processes assures the Zhongyue Rail Anchor will remain the dominant anchor in track


2-Overdrive Stop
Assures proper application every time, by either manual or machine application

3-Platform

Provides full rail base contact .eliminate flex in frozen ballast rail “pumping” conditions


4-Tie Bearing Area
A greater contact area than any other design reduces wood fiber crushing prolonging sleeper life


5-Jaw Grip
The vice-like action on rail base resists rail movement on average more than any other drive-on anchor. Provides superior holding power!


6-High Quality
With premium quality steel anchor integrity is maintained for long lasting service



Application



Rail Fixation Rail anchor fasteners 60Si2Mn 65 Mn Material Anticreeper

QT500-7 Steel Plain Surface 8.8 Grade Rail Anchor Used for UIC and DIN Standard Rail
