50 Kg / 85kg UIC54 P65 Drive On Railway Spare Parts Spring Type Rail Fasteners

China 50 Kg / 85kg UIC54 P65 Drive On Railway Spare Parts Spring Type Rail Fasteners supplier
50 Kg / 85kg UIC54 P65 Drive On Railway Spare Parts Spring Type Rail Fasteners supplier 50 Kg / 85kg UIC54 P65 Drive On Railway Spare Parts Spring Type Rail Fasteners supplier 50 Kg / 85kg UIC54 P65 Drive On Railway Spare Parts Spring Type Rail Fasteners supplier

Large Image :  50 Kg / 85kg UIC54 P65 Drive On Railway Spare Parts Spring Type Rail Fasteners

Product Details:

Place of Origin: JIANGSU
Brand Name: ZHONGYUE
Certification: ISO9001
Model Number: CUSTOMIZED Anchor P65

Payment & Shipping Terms:

Minimum Order Quantity: 20000PCS
Price: Negotiation
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 10-15 working days after received your payment
Supply Ability: 500,000PCS per month
Contact Now
Detailed Product Description
Product Name: 50kg, 85kg, UIC54 P65 Drive-on Rail Anchors And Spring Type Rail Anchor Material:: 60Si2MnA, 45#, QT500-7
Application:: Rail Fastening Surface:: Plain (oiled),color Painting
Types:: Used In 50Kg, 85Kg,90/91LB, 115RE /136RE ,UIC54 & UIC60 Rail Free Sample: Available

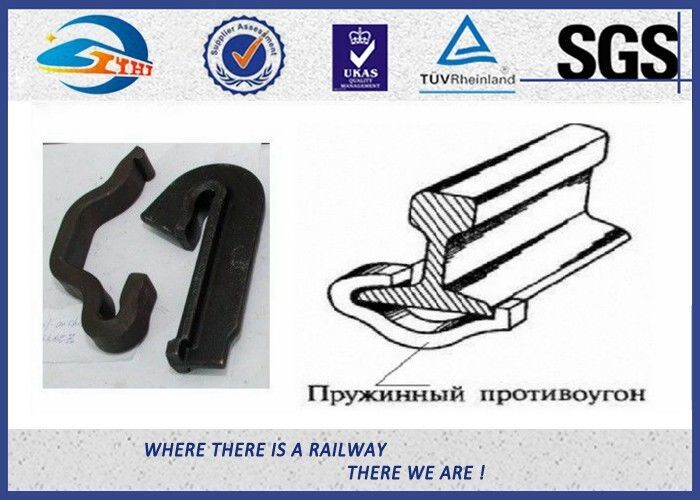

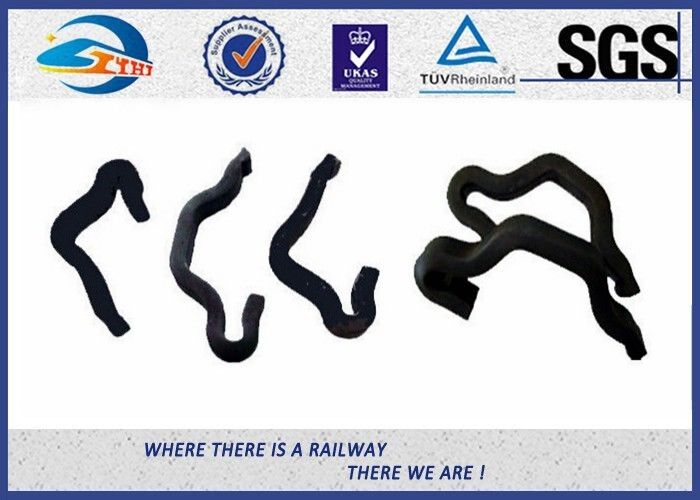

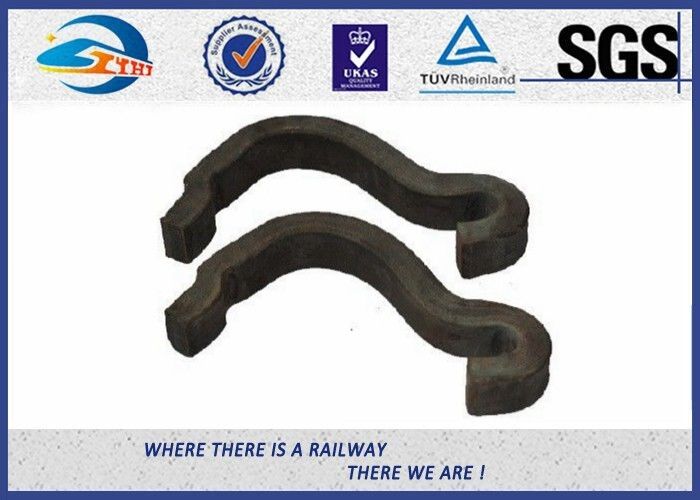

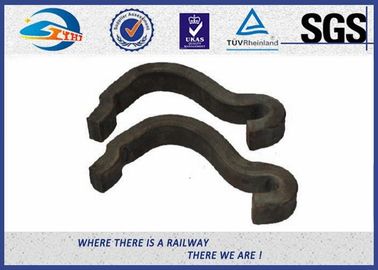

50kg, 85kg, UIC54 P65 Drive-on rail anchors and Spring type rail anchor



Rail anchors made in one-piece construction from spring steel are designed to fasten the rail tight on the base of the rail to prevent the rail from longitudinal movements, i.e. the “ creeping” of the rail, caused by changing temperature, grades, traffic patterns, and braking action of trains.



Rail anchors are applied to the rail base directly and lodge up against the tie. Rail anchors provide a large bearing surface against rail base and rail tie, preventing cutting and wear, and eventually to prolong the working life of the rail ties. Anchors are made for a specific rail weight and base width, which can be classified into two types: the Drive-on rail anchors and Spring type rail anchor.



Brand Zhongyue
Name Casting rail anchors for fastening railway sleepers
Type used in 50Kg, 85Kg,90/91LB, 115RE /136RE ,UIC54 & UIC60 rail
  Or the type by customers’ drawings
Material 60Si2MnA 45# QT500-7
Chemical composition(%) C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35,
P:≤0.03, S:≤0.03
C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25,
P:≤0.035, S:≤0.035
C:3.60-3.80, Mn:≤0.6,
Si:2.50-2.90,
P:≤0.08, S:≤0.025
Surface plain (oiled),color painting
Standard refers /





Types of rail anchors:

1. Rail anchors are always used in rails such as 50kg, 85kg, UIC54, UIC60, 90/91lb, 115RE, 136RE, just to name a few. We can produce T or V-shaped rail anchors as well as other types according to clients’ requirements, by forging or casting.



2. Generally speaking, based on our former production experience, most common material for rail anchor production is 60Si2MnA, which is often used for rails such as 50kg, 70lb, 80lb, 90/91lb and so on.

rail anchor



Application Rules of Rail Anchors



How to use the rail anchors? There are general rules on the application of rail anchors:

  • Rail anchors should be on the gage side of the rail base against the same tie face on opposite rails.
  • Rail anchors have to hold the rail base tightly and firmly and have full bearing against rail tie face.
  • A new rail anchor and a rail tie will be needed when the bearing of rail anchor against the tie has been disturbed.
  • Anchors shall not be moved by driving them along the rail.
  • The rail ties should be kept straightened when the anchors are applied.



60Si2Mn Material Russian Rail Anchor P65 Anticreeper For Rail Fixation



50 Kg / 85kg UIC54 P65 Drive On Railway Spare Parts Spring Type Rail Fasteners

50 Kg / 85kg UIC54 P65 Drive On Railway Spare Parts Spring Type Rail Fasteners



Our main products:


Plastic and rubber pads, EVA pad, HDPE pad, dog spike, screw spike, railway bolt and nut, washer, rail clip, rail shoulder, crane rail, fish plate, base plate, crane rails and so on.
