Crane Rail Clips For Railroad Construction / Railway Fasteners KPO Rail Clamp

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: Rail Clip
Minimum Order Quantity: 2000sets
Price: Negociable
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, 30% in advance
Supply Ability: 500,000pcs per month
Product Name: Rail Clips For Railroad Construction / Railway Fasteners KPO Rail Clamp Application: Railway Fastening
Type: KPO3, KPO6, KPO9, Or Customized Material: Q235-forging, ZG35-cast Steel, QT500-7-cast Iron
Surface: Plain (oiled) Standard: DIN5906
Dimensions: According To Drawings Rail: ASCE30, ASCE50, UIC60, UIC54,BS90A,BS80A,115RE Etc
High Light:

crane rail clips

,

din rail clips

Rail clips for railroad construction / Railway fasteners KPO rail clamp



ZHONGYUE offer various rail CLIP clamps, which are known for their high quality and strong durability. They are made of high-grade steel and conform to the defined parameters of railways and prevailing market demands. These rail clamps are available in varied specifications and can be customized according to customers’ specific requirements.



Their main features are as follows

Excellent designing ;

high quality ;

low maintenance ;

optimum performance ;

reliable;

highly efficient ;

high tensile strength ;

long functional life ;

corrosion resistance.



Part name Type Material Finish Remark
KPO clip KPO3, KPO6, KPO9 Q235 Plain oiled Standard: DIN5906
HS bolt HS26, HS32 Grade4.6: Q235
Grade5.6: 35#
Grade8.8: 45#
Plain oiled, black oxide, galvanized, hot dip galvanized Diameter: 22mm or 24mm.
Length: 55mm, 65mm, 75mm, 90mm
Standard: UIC864-2
Hex nut As ordered Grade 5: 35#
Grade 8: 45#
Plain oiled, black oxide, galvanized, hot dip galvanized Standard: DIN985
Double coil spring washer As ordered 65Mn Plain oiled, black oxide, galvanized, hot dip galvanized Standard: UIC864-3
screw spike M24×150mm
M24 ×160mm
M24 ×180mm
or other length as ordered
Grade 4.6: Q235
Grade 5.6: 35#
Grade 8.8: 45#
Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized. Standard: ISO898-1, UIC864-1 and NF F500-50
Base plate UIC54,UIC60, 50kg rail, 60kg rail,S49 in ordered size Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel Plain oiled Standard: UIC864-6



The rail clamp is packed in wooden boxes or sacks and wooden pallets. On average, 25kgs per package.



We are a leading rail clamp manufacturer in China. We can also make other rail fastenings such as rail clip, railway screw, plastic dowel, rail pad, railway insulator, rail fish bolt, railway base plate, rail anchor, railway shoulder, rail bolt, flat and spring washer, fastening system of E type/SKL type/KP type/Nabla type.

Rail Clamp fasteners
FOB price: USD1.2-2.3
Clamp Material: 60Si2MnA/Q235/steel 35#/45#
Clamp Surface: Plain Oiled, Oxygen Black, Zinc Plated, HDG

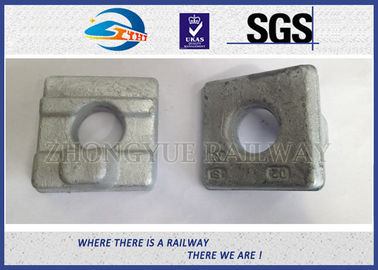

Product Show

Crane Rail Clips For Railroad Construction / Railway Fasteners KPO Rail Clamp 0



PACKAGE PHOTOS:





Crane Rail Clips For Railroad Construction / Railway Fasteners KPO Rail Clamp 1





BAGS WITH PALLETS



Crane Rail Clips For Railroad Construction / Railway Fasteners KPO Rail Clamp 2

Rail clip for North Africa Packing Method:

Double-layer woven bag+free-fumigation pallet; Steel Drum+Pallet; Wooden box; or upon customers' request.The rail clamp is packed in wooden boxes or sacks and wooden pallets. On average, 25kgs per package.





Material Technical Specifications

  1. Forging: Q235;
  2. Cast steel: ZG35;
  3. Cast iron: TQ500-7
Grade 4.6
Material Q235
Mechanical Tensile strength: ≥ 400Mpa
Yield strength: ≥ 240Mpa
Elongation: ≥ 22%
Cold bending: 90 degree
without crack



Name QT500-7 QT450-10 QT400-15
Standard GB 1348-88 GB 1348-88 GB 1348-89
Chemical composition(%) C:3.60-3.80 C:3.40-3.90 C:3.50-3.60
Mn:≤0.6 Mn:0.2-0.5 Mn:≤0.5
Si:2.50-2.90 Si:2.70-3.00 Si:3.0-3.2
P:≤0.08 P:≤0.07 P:≤0.07
S:≤0.025 S:≤0.03 S:≤0.02
Tensile Strength ≥500 Mpa ≥450 Mpa ≥400 Mpa
Yield Strength ≥320 Mpa ≥310 Mpa ≥250 Mpa
Elongation(%) ≥7 ≥10 ≥15
Hardnrss 170~230HB 160~210HB 130~180HB
Metallographic organization ferrite + pearlite graphite + ferrite + pearlite ferrite

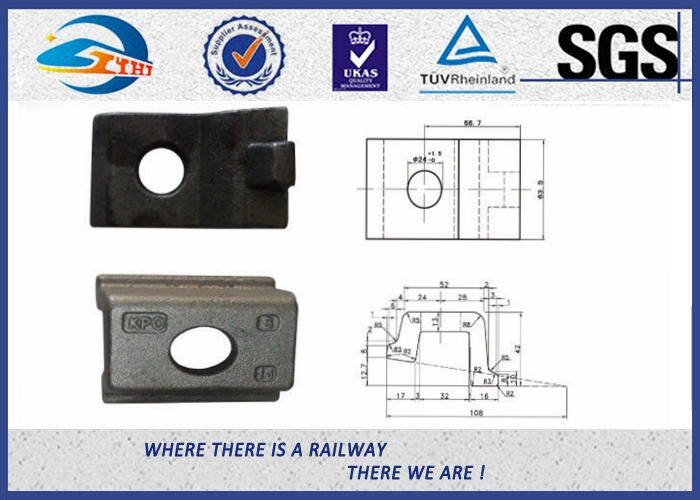

Drawing

Plain Surface Carbon Steel KPO Type Rail Clip For DIN 536 And UIC 860 Standard Rail







Our main products:



We can provide products according to customers drawings and samples.Our main products are as following:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ DP clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
We are trying to supply the best products at the best price!



Custom Railroad Track Spikes , Threaded Screw Spike For Rail Fastening System



1. Q: what information should we show if we need price?

A: 1. tree species;

2. size: length*width*thicknessl;

3. quantity;

4. we adopt oiled anti corrosion, if yours special, please mark it.



2.Q: what is anti-corrosion?

A: Using high temperature and pressure oiling corrosion technology.
Technology standards : GB9221-88



3. Q: payment terms?

A: 30% by T/T as deposit, the balance 70% before delivery.



4. Q: Validity Date?

A: 10~15 days in general. it will be showed in quotation.



5. Q: Mold fee?

A: if we have same mold, no mold fee;

if we make new mold with small quantity, client pay for it;

if we make new mold with large quantity, SuYu pay for it.





If you have any other models of rail/ rail fastener, welcome to contact me.
