| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | AREMA 136LB |
| Minimum Order Quantity: | 1000pcs |
| Price: | Negociable |
| Packaging Details: | steel pallet |
| Delivery Time: | 40 days after deposit |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 10,000pcs per week |
| Material: | 50#,45#,35#,Q235 | Application: | Rail Joints |
|---|---|---|---|
| Surface: | Plain, Oiled, Oxide Black, Color Painting | Sample: | Available |
| Customization: | Acceptable | Types: | 4 Holes, 6 Holes |
| Weight: | 17.418kg | Length: | 609.6mm |
| Highlight: | railroad fish plate,steel fish plates |
||

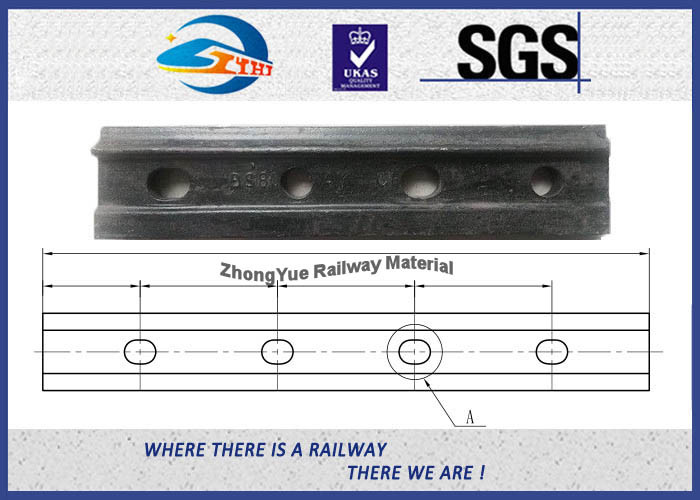

Railway Joint Bar for Rail AREMA 136LB Fish Plate
Other Name:fish plate, Joint bar, jointing plate, fishplate, slice bar
Material: 50#, 45#, 35#
Technique: Forge steel.
Standard: AREMA 2007
Description:
Joint Bar is a pair of steel bar, used on the connection of two steel rail, to keep the rail on position and smoothly. Joint bar is placed on the two side of the steel rail, and fixed by bolts , buts, and washer. Joint Bar is uaually called by Fishplate, the holes on the joint bar contain both round and oval,to fit the fish bolt and make sure the connection more stable.
We can produce standard joint bar according to AREMA, DIN, GB standard, we also accept customer's non-standard drawing
|
Type |
Length /Diameter |
Weight(Kg) |
Material |
|
|
115RE |
4 hole- 24″ |
17.04 |
45#
Chemical composition(%): C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035
|
50#
Chemical composition(%): C:0.62-0.70, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035 |
|
115RE |
6 hole -36″ |
25.56 |
||
|
132-136RE |
4hole-24″ |
17.75 |
||
|
132-136RE |
6hole-36″ |
26.63 |
||
|
UIC60 |
4 hole - 630/Ø26 |
18.07 |
||
|
UIC60 |
4 hole-600/ Ø 28 |
17.47 |
||
|
UIC60 |
4 hole - 630/ Ø 25 |
18.1 |
||
|
UIC54 |
4hole |
14.34 |
||
|
UIC54 |
6hole- 800 |
19.94 |
||
|
BS80A |
4hole |
6.5 |
||
|
BS90A |
685.8 / Ø 26 |
13.23 |
||
|
BS90A |
792.9/ Ø 26 .2 |
15.34 |
||
|
90/91LB |
4 hole |
18.08 |
||
|
90/91LB |
6hole |
19.9 |
||
|
50Kg |
4hole |
14.3 |
||
|
50Kg |
6hole |
19.5 |
||
|
BS75R |
4hole |
6.56 |
||
|
BS60A |
4hole |
5.61 |
||
|
S49 |
4 hole |
9.71 |
||
Our Company
ZhongYue established on 2013, and has become one of the largest manufacturer of Railroad fasteners in China. Our products are manufactured according to international standards like ASTM, DIN, BS, JIS, AS, NF, ISO,GOST and GB. They are inspected frequently by BV, SGS, and ABS. We have been granted ISO9001:2008 and ISO14001:2004 certificate and supply products to famous companies such as VAE, Hilti,Vossloh etc. We are a qualified supplier of Canada railway, Kazakhstan railway, American railway, Zambia railway, Thailand railway, Indonesia railway, Malaysia railway, Sweden railway, New Zealand railway, South Africa railway etc.
Sticking to the quality first policy, ZhongYue pays a lot attentions to quality control process. We have been granted ISO9001-2008 certificate and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our railway bolt products are of good quality and up to customers' requirements.
Product Range:
1.Rail fastening system
2.Dog spike and Screw spike
3.Bolts & Nuts $ Washer
4.Elastic clamp
5.Rail anchor
6.Rail shoulder
7.Fish plate
8.Tie plate
9.Plastic / Rubber parts
10.Brake pad
11.Steel rail
