| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | GOST |
| Minimum Order Quantity: | 1000pcs |
| Price: | Negociable |
| Packaging Details: | Double woven bags with woden pallet , container. |
| Delivery Time: | 15-30 days after placing the formal order |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 1000 tons per month |
| Product: | Railroad Base Plate | Material: | QT400-15 |
|---|---|---|---|
| Color: | Plain | Application: | Suits For UIC60, S49, S54, 90A Etc. |
| Hole Diameter: | 10mm And Can Be Customized | OEM: | Support OEM |
| Workmanship: | Cast Or Forged | Another Name: | Tie Plate |
| High Light: | rail base plate,steel tie plate |
||

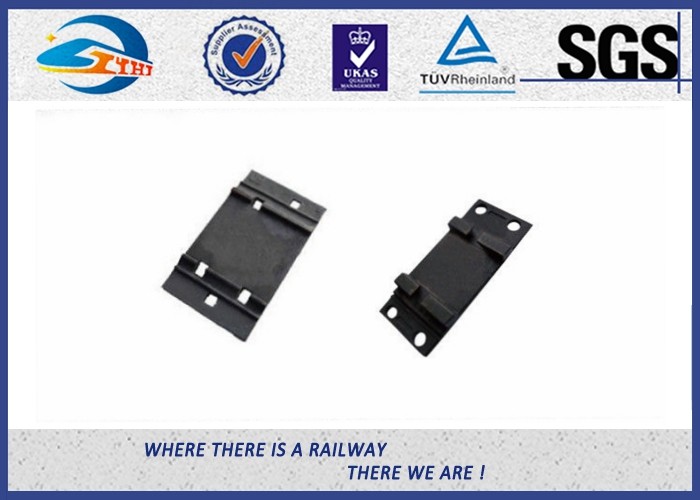

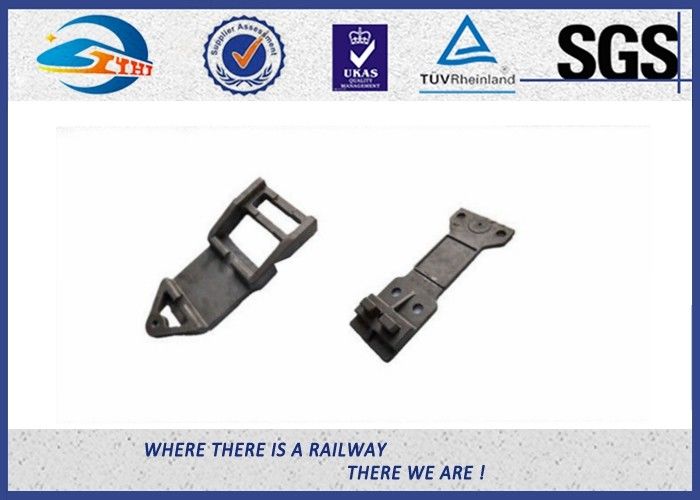

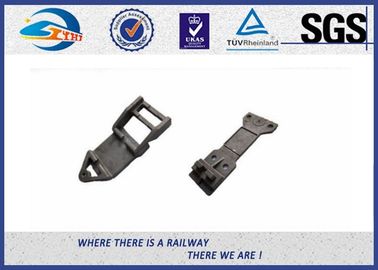

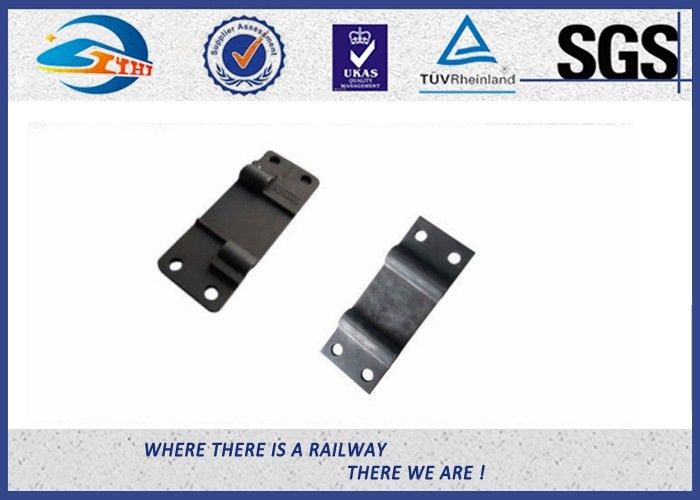

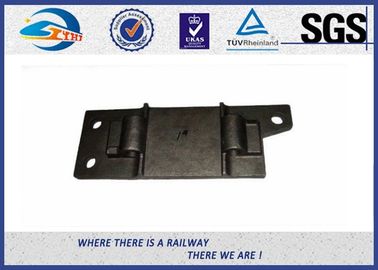

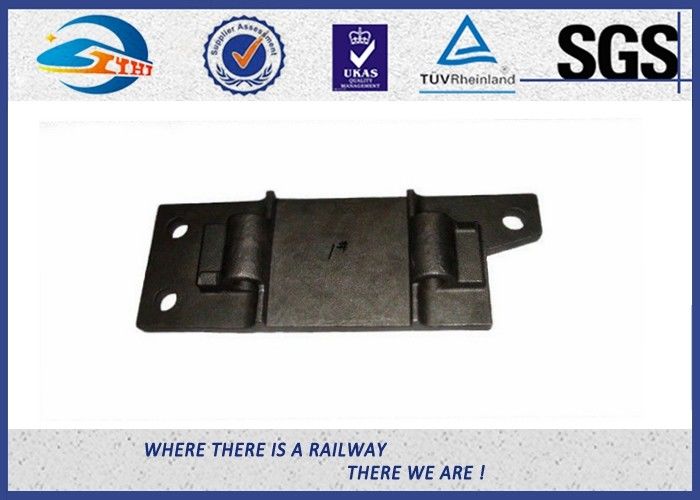

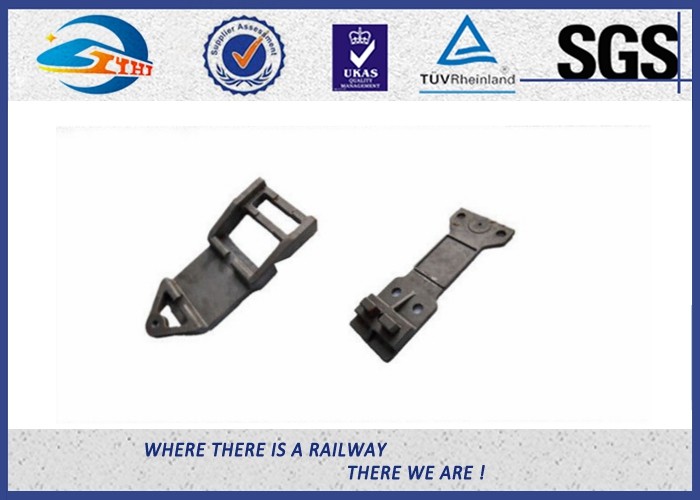

Cast Iron Base Plate QT400-15 Plain Railway Tie Plate Fastener Components
|
Brand |
ZHONGYUE |
|||
|
Name |
fasteners components railway plain tie plate |
|||
|
Type |
For rail UIC54, UIC60, 50kg rail, 60kg rail,S49 and size as ordered |
|||
|
Material |
QT500-7 |
QT450-10 |
low carbon steel or high carbon steel by forged |
Low carbon steel S275JR, Q235,etc. by rolled |
|
Chemical composition(%) |
C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025 |
C:3.40-3.90, Mn:0.2-0.5, Si:2.70-3.00, , P:≤0.07, S:≤0.03 |
/ |
/ |
|
Surface |
plain (oiled) |
|||
|
Standard refers |
UIC864-6 |
|||
A tie plate, baseplate or sole plate is a steel plate used on rail tracks between flanged T rail and the crossties.
The tie plate increases bearing area and holds the rail to correct gauge. They are fastened to wooden ties
by means of spikes or bolts through holes in the plate.
The part of the plate under the rail base is tapered, setting the cant of the rail, an inward rotation from the
vertical. The usual slope is one in forty ( 1.4 degrees ). The top surface of the plate has one or two shoulders
that fit against the edges of the base of the rail. The double-shoulder type is currently used. Older single-shoulder types were adaptable for various rail widths, with the single shoulder positioned on the outside
(field side) of the rails. Most plates are slightly wider on the field side, without which the plates tend to cut
more into the outsides of the tie, reducing cant angle.
Cast iron can be the welded or fabricated type, depending upon the customers requirements. Our rail tie
plate can be made to suit various rail section, i.e. UIC 60, UIC 54, RN 45, 90 A, etc.
|
Type |
Dimension |
Holes |
Incline |
Rail |
Weight(Kg) |
|
Rph 1/160 |
345/285/127/160x15/13 |
Ø 26 (4x) |
1:40 |
S 49/S 54 |
7,86 |
|
Rp 01/01/160 |
345/285/127/160x15/13 |
Ø 26 (4x) |
1:40 |
S 49/S 54 |
7,70 |
|
Rph 1/210 |
345/285/127x210x15/13 |
Ø 26 (4x) |
1:40 |
S 49/S 54 |
10,55 |
|
Rph 1/210 |
345/285/127x210x15/13 |
Ø 36,3 (2x) |
1:40 |
S 49/S 54 |
10,55 |
|
Rph 1/210 FVZ |
345/285/127x210x15/13 |
Ø 26 (4x) |
1:40 |
S 49/S 54 |
10,69 |
|
Sph 1(a) |
345/350/127x410x15/13 |
Ø 26 (8x) |
1:40 |
UIC 60 |
20,60 |
|
Rph 6/160 |
370/310/152x160x15/13 |
Ø 26 (4x) |
1:40 |
UIC 60 |
8,44 |
|
Rph 6/210 |
370/310/152x210x15/13 |
Ø 26 (4x) |
1:40 |
UIC 60 |
11,32 |
|
SZ 60 |
370/350/152x420x15/13 |
Ø 26 (8x) |
1:40 |
UIC 60 |
22,73 |
|
Rph 11 Ü |
664/554x160 |
Ø 26 (4x) |
1:40 |
S 54 |
15,37 |
|
Rph 13 Ü |
690/570x160 |
Ø 26 (4x) |
1:40 |
UIC 60 |
15,27 |
|
Rpo 5 |
345/285/127x160x15/13 |
Ø 26 (4x) |
1:20 |
S 49/S 54 |
8 |
If you have further questions, pls email me to ZY06@zyrail.com
