Place of Origin: | China |
---|---|
Brand Name: | ZhongYue |
Certification: | ISO9001:2015 |
Model Number: | UIC 60 |
Minimum Order Quantity: | 1000pcs |
Price: | Negociable |

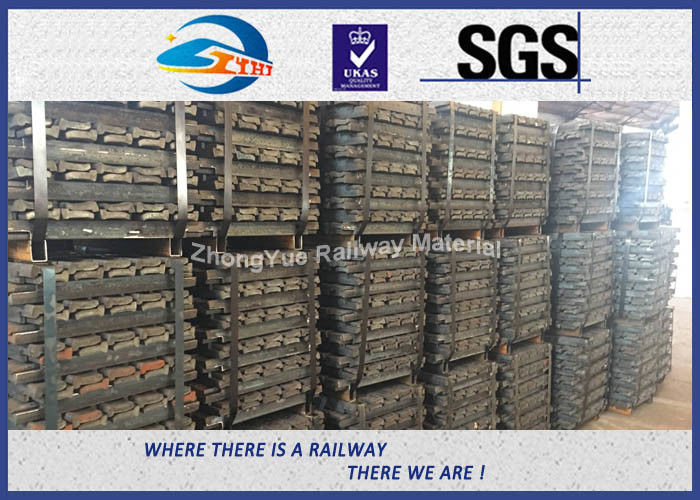

Packaging Details: | steel pallet |
Delivery Time: | 40 days according your order quantity |
Payment Terms: | T/T, 30% in advance |
Supply Ability: | 10,000pcs per week |
Material: | 50# | Application: | Rail Joints |
---|---|---|---|
Surface: | Plain, Oiled, Oxide Black, Color Painting | Sample: | Available |
Customization: | Acceptable | Types: | 4 Holes, 6 Holes |
High Light: | railroad fish plate,steel fish plates |

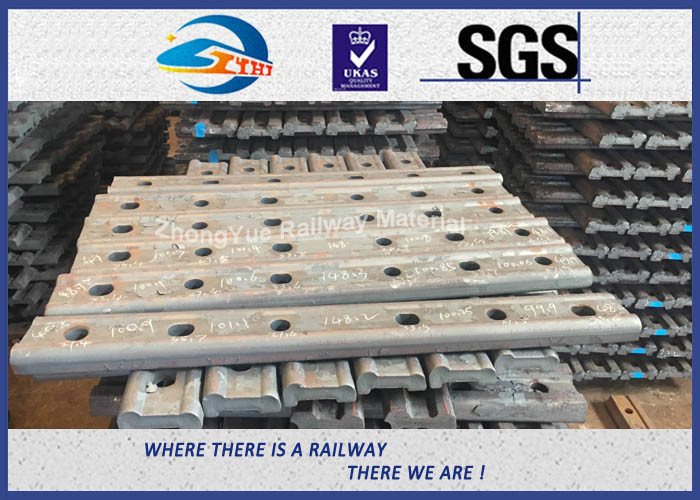

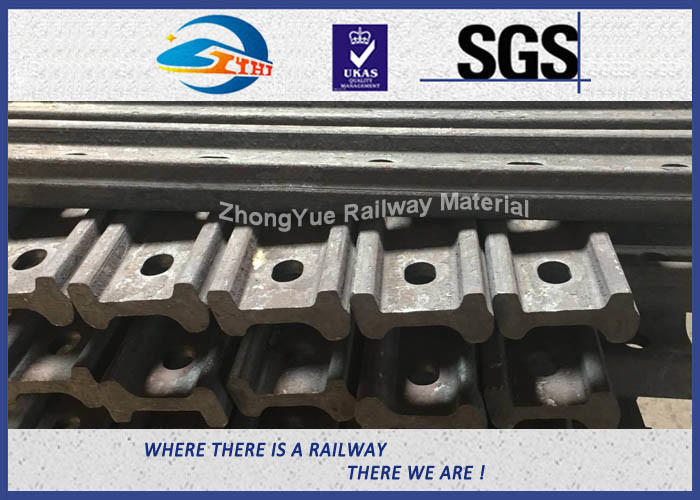

Railway Fish Plate Railroad Joint Bar For UIC 60 Rail
In rail terminology, a fishplate, splice bar or joint bar is a metal bar that is bolted to the ends of two rails to join them together in a track. The name is derived from fish, a wooden bar with a curved profile used to strengthen a ship's mast.[1] The top and bottom edges are tapered inwards so the device wedges itself between the top and bottom of the rail when it is bolted into place.[2] In rail transport modelling, a fishplate is often a small copper or nickel silver plate that slips onto both rails to provide the functions of maintaining alignment and electrical continuity.
Standard: UIC864-4
We offer 4 holed or 6 holed fish plate to suit 60 kg, UIC, 54 kg UIC, 52 kg UIC, 52 kg, 90A, 90R, 80A, 80'O', 88'O', 75R, 60R, 115 RE, 132 RE, 50R rails, etc.
Combination/Compromise Fish Plates
We produce specially designed fish plates to join two different rail sections of rail tracks for various customers when they require them.
Type |
Length /Diameter |
Weight(Kg) |
Material |
|
115RE |
4 hole- 24″ |
17.04 |
45#
Chemical composition(%): C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035
|
50#
Chemical composition(%): C:0.62-0.70, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035 |
115RE |
6 hole -36″ |
25.56 |
||
132-136RE |
4hole-24″ |
17.75 |
||
132-136RE |
6hole-36″ |
26.63 |
||
UIC60 |
4 hole - 630/Ø26 |
18.07 |
||
UIC60 |
4 hole-600/ Ø 28 |
17.47 |
||
UIC60 |
4 hole - 630/ Ø 25 |
18.1 |
||
UIC54 |
4hole |
14.34 |
||
UIC54 |
6hole- 800 |
19.94 |
||
BS80A |
4hole |
6.5 |
||
BS90A |
685.8 / Ø 26 |
13.23 |
||
BS90A |
792.9/ Ø 26 .2 |
15.34 |
||
90/91LB |
4 hole |
18.08 |
||
90/91LB |
6hole |
19.9 |
||
50Kg |
4hole |
14.3 |
||
50Kg |
6hole |
19.5 |
||
BS75R |
4hole |
6.56 |
||
BS60A |
4hole |
5.61 |
||
S49 |
4 hole |
9.71 |
Our Company
Established in 2013, ZhongYue has become one of the largest manufacturer of Railway fasteners in China. Our products are manufactured according to international standards such as ASTM, DIN, BS, JIS, AS, NF, ISO,GOST and GB. They are inspected frequently by BV, SGS, and ABS. We have been granted ISO9001:2008 certificate and supply products to famous companies such as VAE, Hilti,Vossloh etc. We are a qualified supplier of Canada railway, Kazakhstan railway, American railway, Zambia railway, Thailand railway, Indonesia railway, Malaysia railway, Sweden railway, New Zealand railway, South Africa railway etc.
Sticking to our quality first policy, ZhongYue pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our railway bolt products are of high quality and up to customers' requirements.
