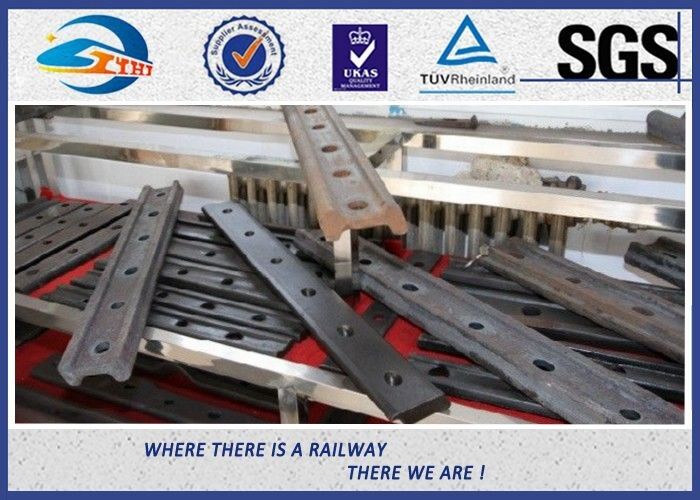

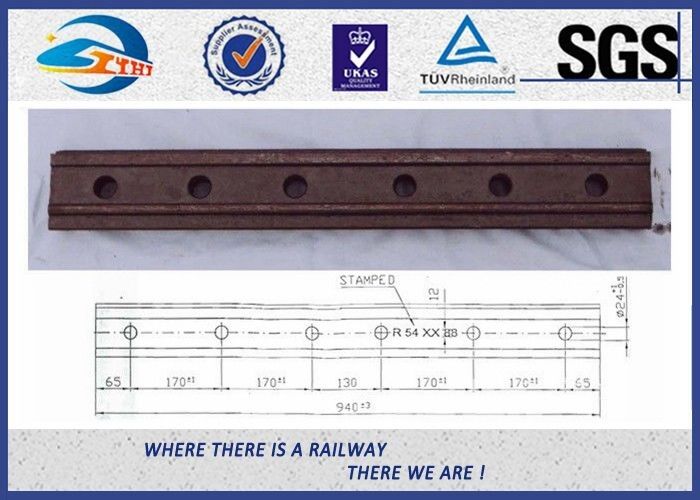

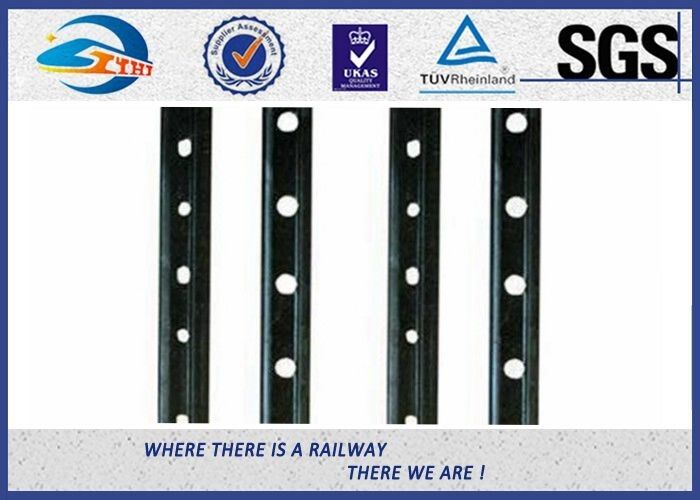

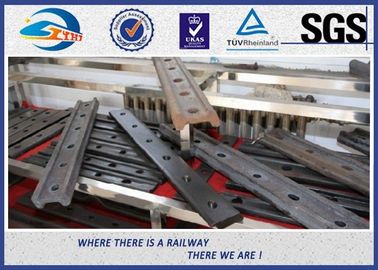

UIC54 4 Hole 45# Compromise Railway Fish Plate / Rail Joint Bar

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: 45#
Minimum Order Quantity: 1000pcs
Price: Negociable
Packaging Details: In bundle with pallets
Delivery Time: 25 to 40 days according your order quantity
Payment Terms: T/T, 30% in advance
Supply Ability: 10,000pcs per week
Material: 50# Application: Railway Construction
Surface: Plain, Oiled, Oxide Black, Color Painting Sample: Available
Customization: Acceptable Types: 4 Holes, 6 Holes
Technology: Forging Name: UIC54 4 Hole 45# Compromise Fish Plate, Rail Joint Bar, Fishplate
High Light:

railroad fish plate

,

steel fish plates

UIC54 4 hole 45# Compromise Fish Plate, Rail joint bar, fishplate

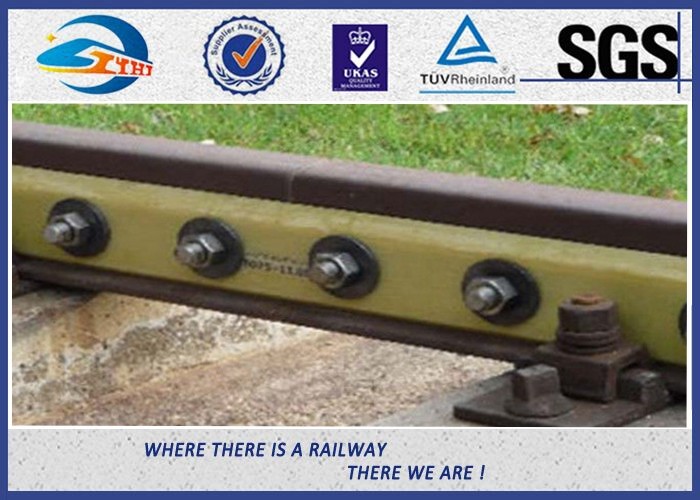

In rail terminology, a fishplate, splice bar or joint bar is a metal bar that is bolted to the ends of two rails to join them together in a track. The name is derived from fish, a wooden bar with a curved profile used to strengthen a ship's mast.[1] The top and bottom edges are tapered inwards so the device wedges itself between the top and bottom of the rail when it is bolted into place.[2] In rail transport modelling, a fishplate is often a small copper or nickel silver plate that slips onto both rails to provide the functions of maintaining alignment and electrical continuity.





ZHONGYUE's railway fish plates, also called rail joints or joint bars, offer a different function to other rail components. Rail joints are flat metal plates usually used to connect adjacent two rails with a number of rail bolts or railroad spikes.



Traditionally, railway fish plates are drilled with some holes on the ends of the sections to be connected. There are some holes in the end of railway track, which are used lined up with the holes in the railway fish plate and jointed using a rail bolt. In general, railway fish plates are made of steel, but plastics and composites are alternative raw materials for rail joints.



We offer 4 holed or 6 holed fish plate to suit 60 kg, UIC, 54 kg UIC, 52 kg UIC, 52 kg, 90A, 90R, 80A, 80'O', 88'O', 75R, 60R, 115 RE, 132 RE, 50R rails, etc.



Combination/Compromise Fish Plates


We produce specially designed fish plates to join two different rail sections of rail tracks for various customers when they require them.



Type

Length /Diameter

Weight(Kg)

Material

115RE

4 hole- 24″

17.04

45#



Chemical 'composition(%):

 C:0.42-0.50,

Mn:0.50-0.80,

Si:0.17-0.37,

Cr:≤0.25,

P:≤0.035,

S:≤0.035







50#



Chemical

composition(%):

C:0.62-0.70,

Mn:0.50-0.80,

Si:0.17-0.37,

Cr:≤0.25,

P:≤0.035,

S:≤0.035

115RE

6 hole -36″

25.56

132-136RE

4hole-24″

17.75

132-136RE

6hole-36″

26.63

UIC60

4 hole - 630/Ø26

18.07

UIC60

4 hole-600/ Ø 28

17.47

UIC60

4 hole  - 630/ Ø 25

18.1

UIC54

4hole

14.34

UIC54

6hole- 800

19.94

BS80A

4hole

6.5

BS90A

685.8 / Ø 26

13.23

BS90A

792.9/ Ø 26 .2

15.34

90/91LB

4 hole

18.08

90/91LB

6hole

19.9

50Kg

4hole

14.3

50Kg

6hole

19.5

BS75R

4hole

6.56

BS60A

4hole

5.61

S49

4 hole

9.71



UIC54 4 Hole 45# Compromise Railway Fish Plate / Rail Joint Bar 0UIC54 4 Hole 45# Compromise Railway Fish Plate / Rail Joint Bar 1UIC54 4 Hole 45# Compromise Railway Fish Plate / Rail Joint Bar 2



Our main products:


Plastic and rubber pads, EVA pad, HDPE pad, dog spike, screw spike, railway bolt and nut, washer, rail clip, rail shoulder, crane rail, fish plate, base plate, crane rails and so on.



customize track spikes / threaded spike / screw spike for Rail fastening system





1. Q: what information should we show if we need price?

A: 1. tree species;

2. size: length*width*thicknessl;

3. quantity;

4. we adopt oiled anti corrosion, if yours special, please mark it.



2.Q: what is anti-corrosion?

A: Using high temperature and pressure oiling corrosion technology.
Technology standards : GB9221-88



3. Q: payment terms?

A: 30% by T/T as deposit, the balance 70% before delivery.



4. Q: Validity Date?

A: 10~15 days in general. it will be showed in quotation.



5. Q: Mold fee?

A: if we have same mold, no mold fee;

if we make new mold with small quantity, client pay for it;

if we make new mold with large quantity, ZHONGYUE pay for it.





If you have any other models of rail/ rail fastener, welcome to contact me.
