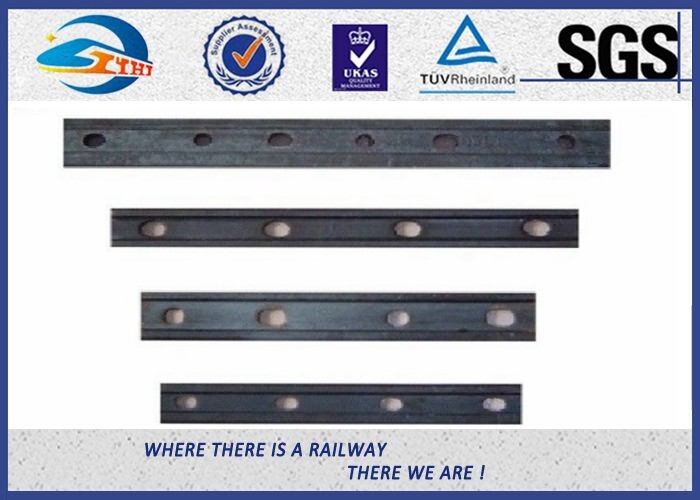

GB Standard Rail Fishplate , 38kg 43kg Rail Railway Joint Bar With 6 Holes TB/T 2345-2008

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: Fishplate for Rail GB38kg&43kg
Minimum Order Quantity: 1000pcs
Price: Negociable
Packaging Details: steel string on steel rod
Delivery Time: 30 days after order
Payment Terms: T/T, 30% in advance
Supply Ability: 1000 ton per month
Material: Q235, 45#, 50# Surface Treatment: Plain
Application: GB 38kg & GB 43kg Rail Weight: 16.1kg
Standard: GB Hole: 6 Holes
Dimensions: (L X W X H) (mm): 790*94*40
High Light:

railroad fish plate

,

steel fish plates

GB Standard Fishplate for 38kg & 43kg Rail railway joint bar with 6 holes



Other Name:
Joint Bar Fish Plate rail jointing plate railway plates railway wagon plate




Product Description:

Usage: Railway Connection for Rail GB 38KG & 43KG.

Dimention:790*94*40mm

Hole: 6 Holes

Material: Q235,35#,50#

Surface treatment: Plain

Weight:16.1kg

Standard: TB/T 2345-2008



Brand ZhongYue
Name  fish plate
Type Length /Diameter Weight(Kg) Material
115RE 4 hole- 24″ 17.04

45#



Chemical composition(%):

C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035







50#



Chemical composition(%):

C:0.62-0.70, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035

115RE 6 hole -36″ 25.56
132-136RE 4hole-24″ 17.75
132-136RE 6hole-36″ 26.63
UIC60 4 hole - 630/¢26 18.07
UIC60 4 hole-600/¢28 17.47
UIC60 4 hole - 630/¢25 18.1
UIC54 4hole 14.34
UIC54 6hole- 800 19.94
BS80A 4hole 6.5
BS90A 685.8 / ¢26 13.23
BS90A 792.9/¢26 .2 15.34
90/91LB 4 hole 18.08
90/91LB 6hole 19.9
50Kg 4hole 14.3
50Kg 6hole 19.5
BS75R 4hole 6.56
BS60A 4hole 5.61
S49 4 hole 9.71



A full set including:



Item Pieces
Fish Plate 2
Fish Bolt 6
Fish Nut 6



Application:



Fish Plate are used for connect the two piece of steel rail together , and fixing on the sleepers. Normally there are 4 holes or 6 holes on the plate, fixing by the fish bolts and nuts.

GB Standard Rail Fishplate , 38kg 43kg Rail Railway Joint Bar With 6 Holes TB/T 2345-2008 0



Production Process:



Clip Raw Material Cutting Forming
Heat Treatment Surface Treatment Packing


GB Standard Rail Fishplate , 38kg 43kg Rail Railway Joint Bar With 6 Holes TB/T 2345-2008 1



Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine

GB Standard Rail Fishplate , 38kg 43kg Rail Railway Joint Bar With 6 Holes TB/T 2345-2008 2



Sale Range
1.Rail fastening system
2.Dog spike / Screw spike
3.Bolts & Nuts
4.Elastic clamp
5.Rail anchor
6.Rail shoulder
7.Fish plate
8.Tie plate
9.Plastic / Rubber parts
10.Brake pad
11.Steel rail

GB Standard Rail Fishplate , 38kg 43kg Rail Railway Joint Bar With 6 Holes TB/T 2345-2008 3



Company Introduction

    ZhongYue Railway Material Co., LTD

    Established in 2013, ZhongYue has become one of the largest manufacturer of Railway fasteners in China. Our products are manufactured according to international standards such as ASTM, DIN, BS, JIS, AS, NF, ISO,GOST and GB. They are inspected frequently by BV, SGS, and ABS. We have been granted ISO9001:2008 certificate and supply products to famous companies such as VAE, Hilti,Vossloh etc. We are a qualified supplier of Canada railway, Kazakhstan railway, American railway, Zambia railway, Thailand railway, Indonesia railway, Malaysia railway, Sweden railway, New Zealand railway, South Africa railway etc.

    Sticking to our quality first policy, ZhongYue pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our railway bolt products are of high quality and up to customers' requirements.
