| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | Rail Fastening System |
| Minimum Order Quantity: | 10000sets |
| Price: | Negociable |
| Packaging Details: | according to clients' requirement |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 500,000pcs per month |
| Material: | Q235(main) 60Si2MnA, 60Si2CrA, 55Si2Mn, 38Si7 | Application: | Railway Construction |
|---|---|---|---|
| Certification: | ISO9001:2008 | Main Surface Treatment: | Plain (oiled), Oxide Black, Color Painting |
| Name: | Railway Project Railway Fastening System SKL Rail System | Drawing: | Required |
| High Light: | railroad fasteners,vossloh fastening system |
||

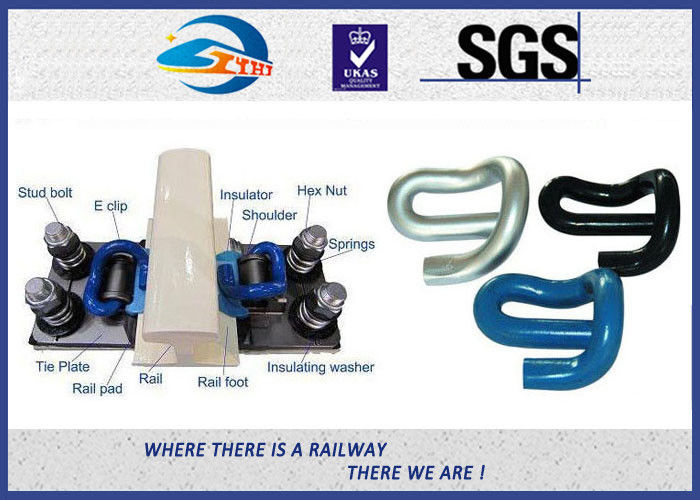

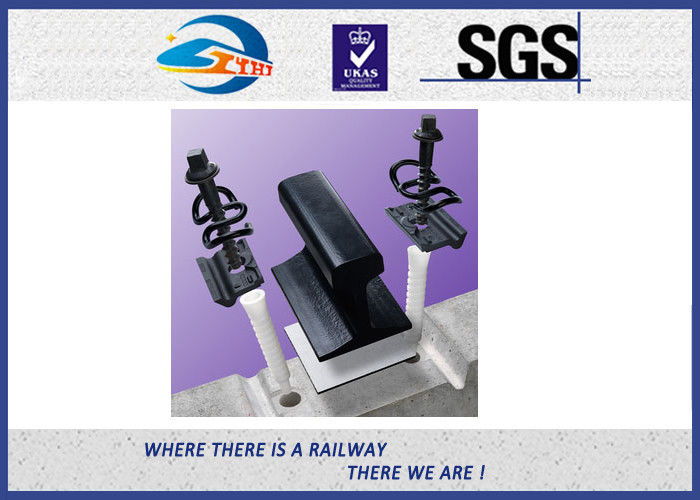

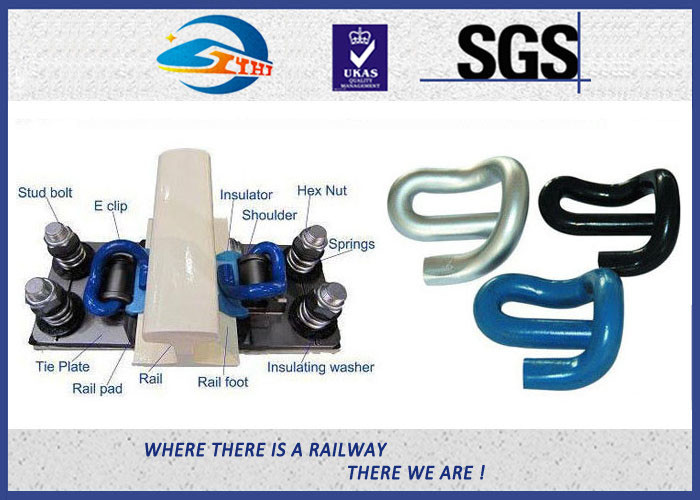

The fist rail fastening system is firstly developed in Sweden. This rail fastening system is widely used in the railroad in South Africa, Zimbabwe, Botswana, Swaziland and Namibia. In addition, the railroad fastener is extensively employed in South America and Australia. The fist rail fastening system comprises of spring steel clip, rail pad, and insulated retaining pin. The components for the rail fastening device are manufactured according to ISO 9001-2008 standard.
Technical Parameters
| Part name | Type | Material | Finish | Remark |

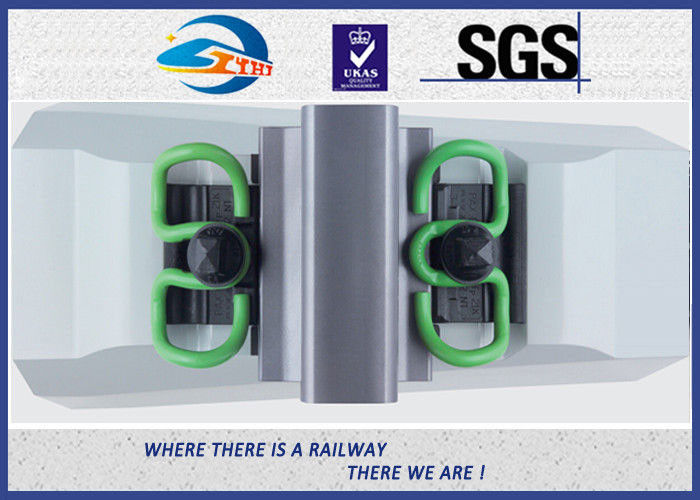

| SKL14 tension clip | Dia. 13mm | 60Si2CrA, 38Si7 | Plain oiled, color painting, or the other required ones. | Hardness: 42-47HRC Fatigue test: When the clip spring deflection reaches 9.1mm and the swing deflection is 1.42mm, the fatigue life will be 5 millions cycles without breaking. Standard: DIN17221, GB/T1222 |
| Ss35 screw spike | M24×150mm M24 ×160mm M24×180mm |
Grade 4.6: Q235 Grade 5.6: 35# Grade 8.8: 45# |
Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized | Standard: ISO898-1, UIC864-1 and NF F500-50 |
| Plain washer | Uls7 | Q235 | Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized | Standard: EN10025, EN10139 |
| Plastic dowel | For different sizes of screw spike | HDPE, Reinforced Nylon 66 (PA66) | Black, blue, yellow, green or other color | For insert into concrete sleeper |
| Guide plate | UIC54, UIC60, 50kg rail, 60kg rail, and other sizes as ordered | Reinforced Nylon 66 (PA66) | Black, blue, yellow, green or other color | Different designs are available. |
| Rail pad | UIC54,UIC60, and size as ordered | EVA, or rubber | Black, blue, yellow, green or other color | Different designs are available. |

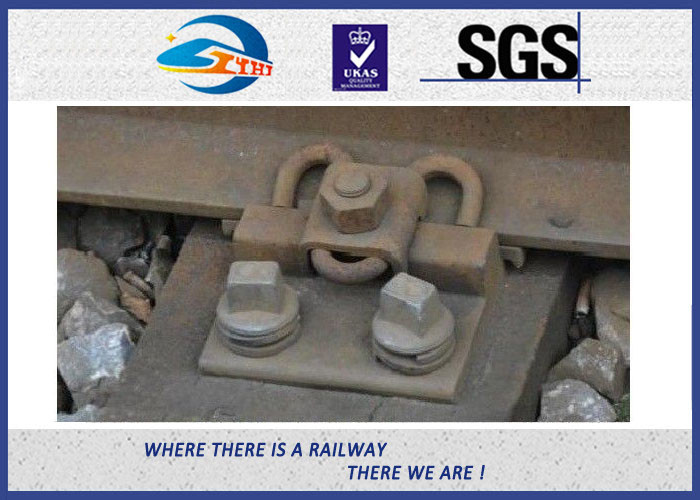

KPO Clamp Rail Fastening System
Technical Parameters
| Part name | Type | Material | Finish | Remark |
| KPO clip | KPO3, KPO6, KPO9 | Q235 | Plain oiled | Standard: DIN5906 |
| HS bolt | HS26, HS32 | Grade4.6: Q235 Grade5.6: 35# Grade8.8: 45# |
Plain oiled, black oxide, galvanized, hot dip galvanized | Diameter: 22mm or 24mm. Length: 55mm, 65mm, 75mm, 90mm Standard: UIC864-2 |
| Hex nut | As ordered | Grade 5: 35# Grade 8: 45# |
Plain oiled, black oxide, galvanized, hot dip galvanized | Standard: DIN985 |
| Double coil spring washer | As ordered | 65Mn | Plain oiled, black oxide, galvanized, hot dip galvanized | Standard: UIC864-3 |
| screw spike | M24×150mm M24 ×160mm M24 ×180mm or other length as ordered |
Grade 4.6: Q235 Grade 5.6: 35# Grade 8.8: 45# |
Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized. | Standard: ISO898-1, UIC864-1 and NF F500-50 |
| Base plate | UIC54,UIC60, 50kg rail, 60kg rail,S49 in ordered size | Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel | Plain oiled |
Standard: UIC864-6 |
Advantage:
We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.
Order Hints:
MOQ: based on your product
Delivery time:Within 30days after order confirmed
Shipment: sea freight
Payment term: T/T 30% deposit, balance before shipment; LC
