Galvanized / Black Oxide Rail Clips Bolts And Nuts Ss35 Screw Spikes For Railroad

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: E Type Rail Fastening System
Minimum Order Quantity: 10000sets
Price: Negociable
Packaging Details: according to clients' requirement
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, 30% in advance
Supply Ability: 500,000pcs per month
Material: Q235(main) 60Si2MnA, 60Si2CrA, 55Si2Mn, 38Si7 Application: Railway Construction
Certification: ISO9001:2008 Main Surface Treatment: Plain (oiled), Oxide Black, Color Painting
Standard Refers: DIN17221, BS970, GB/T1222 Name: Rail Clips Bolts And Nuts Screw Spikes Railroad Fasteners
High Light:

railway track fasteners

,

vossloh fastening system

ZhongYue rail clips bolts and nuts screw spikes railroad fasteners

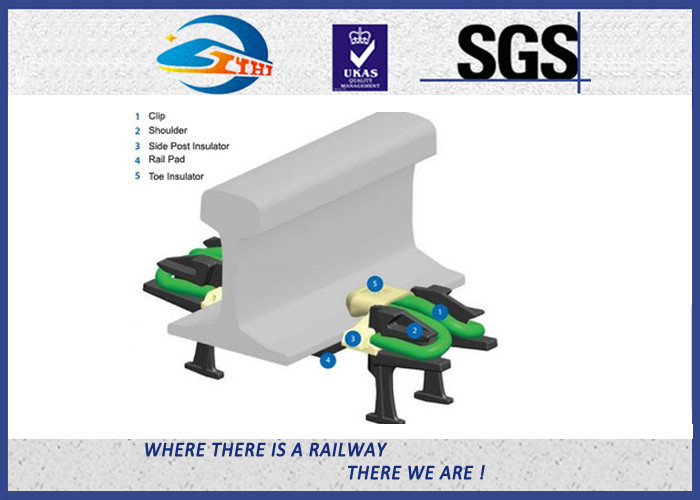

The fist rail fastening system is firstly developed in Sweden. This rail fastening system is widely used in the railroad in South Africa, Zimbabwe, Botswana, Swaziland and Namibia. In addition, the railroad fastener is extensively employed in South America and Australia. The fist rail fastening system comprises of spring steel clip, rail pad, and insulated retaining pin. The components for the rail fastening device are manufactured according to ISO 9001-2008 standard.

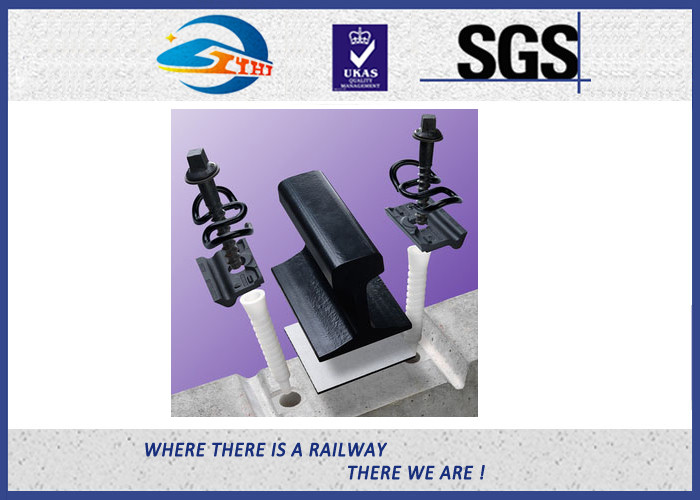

SKL fastening system
Meet all the requirements of Tram line. Top-down construction method is available, so sleepers are no needed. It can be used in general line, also in turnout area. It is feasible in open track, also in embedded track. Easy installation, Gauge adjustment +/-10mm, height regulation +20mm. The static stiffness is no less than 30KN/mm, different stiffness of rail pad can be provided according the requirements of customers.





Technical Parameters



Part name Type Material Finish Remark
SKL14 tension clip Dia. 13mm 60Si2CrA, 38Si7 Plain oiled, color painting, or the other required ones. Hardness: 42-47HRC
Fatigue test: When the clip spring deflection reaches 9.1mm and the swing deflection is 1.42mm, the fatigue life will be 5 millions cycles without breaking.
Standard: DIN17221, GB/T1222
Ss35 screw spike M24×150mm
M24 ×160mm
M24×180mm
Grade 4.6: Q235
Grade 5.6: 35#
Grade 8.8: 45#
Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized Standard: ISO898-1, UIC864-1 and NF F500-50
Plain washer Uls7 Q235 Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized Standard: EN10025, EN10139
Plastic dowel For different sizes of screw spike HDPE, Reinforced Nylon 66 (PA66) Black, blue, yellow, green or other color For insert into concrete sleeper
Guide plate UIC54, UIC60, 50kg rail, 60kg rail, and other sizes as ordered Reinforced Nylon 66 (PA66) Black, blue, yellow, green or other color Different designs are available.
Rail pad UIC54,UIC60, and size as ordered EVA, or rubber Black, blue, yellow, green or other color

Different designs are available.






Advantage:
We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.


Order Hints:
MOQ: based on your product
Delivery time:Within 30days after order confirmed
Shipment: sea freight
Payment term: T/T 30% deposit, balance before shipment; LC

Galvanized / Black Oxide Rail Clips Bolts And Nuts Ss35 Screw Spikes For Railroad 0Galvanized / Black Oxide Rail Clips Bolts And Nuts Ss35 Screw Spikes For Railroad 1Galvanized / Black Oxide Rail Clips Bolts And Nuts Ss35 Screw Spikes For Railroad 2
