| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | KPO 9220, 9120, 9116… |
| Minimum Order Quantity: | 2000sets |
| Price: | Negociable |
| Packaging Details: | 25kg/woven bag, 36bags/pallet, 24pallets/container |
| Delivery Time: | 20- 30 days according to your order quantity |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 600,000 pcs per month |
| Name: | Crane Clip | Material: | Q235 |
|---|---|---|---|
| Grade: | 4.6/5.6/5.8 | Customization: | Acceptable |
| High Light: | crane rail clips,din rail clips |
||

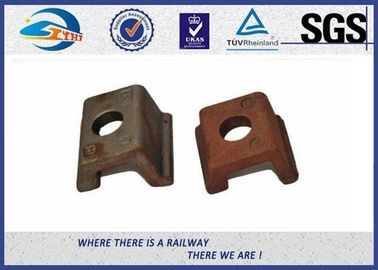

9220 Weldable Upper Clip With Rubber Nose
Plain Q235 Carbon Steel
The extensive Zhongyue clip range can accommodate nearly every rail profile produced in the world, including DIN Rail, MRS Rail, ASCE or “T” Rails and US Crane Rail sections, used either with or without crane rail pad. Two main clip types are available, based on the fixing support: either welded-base or through-bolted. Zhongyue offers clips for use with both imperial and metric hardware, and in both single-bolt and double-bolt configurations for all types.
crane rail clips maintain the rail lateral position but allow for needed longitudinal movement through the use of the vulcanize-bonded rubber nose. The nose helps absorb the energy of vertical deflection caused by wheel passes.
Zhongyue crane rail clips are manufactured throughout the world, with primary manufacturing in North America and Europe.
Specification:
| Item Name | Railway Rail Clip |
| Usage | Rail Fastening |
| Material | Iron Steel, Cast Iron |
| Surface Treatment | Bluing, Plain Oiling, Color Painting, etc |
| Documents with Delivery | Mechanical Properties, Chemical Composition, All Sizes Reports |
| Standard | ISO, SGS, TUV |
| Grade | 4.6/5.6/5.8 |
| Material | Q235 |
| Mechanical | Tensile strength: ≥ 400Mpa |
| Yield strength: ≥ 240Mpa | |
| Elongation: ≥ 22% | |
| Cold bending: 90 degree | |
| without crack |
| Name | QT500-7 | QT450-10 | QT400-15 |
| Standard | GB 1348-88 | GB 1348-88 | GB 1348-89 |
| Chemical composition(%) | C:3.60-3.80 | C:3.40-3.90 | C:3.50-3.60 |
| Mn:≤0.6 | Mn:0.2-0.5 | Mn:≤0.5 | |
| Si:2.50-2.90 | Si:2.70-3.00 | Si:3.0-3.2 | |
| P:≤0.08 | P:≤0.07 | P:≤0.07 | |
| S:≤0.025 | S:≤0.03 | S:≤0.02 | |
| Tensile Strength | ≥500 Mpa | ≥450 Mpa | ≥400 Mpa |
| Yield Strength | ≥320 Mpa | ≥310 Mpa | ≥250 Mpa |
| Elongation(%) | ≥7 | ≥10 | ≥15 |
| Hardnrss | 170~230HB | 160~210HB | 130~180HB |
| Metallographic organization | ferrite + pearlite | graphite + ferrite + pearlite | ferrite |
Inspection machine
Packing and Shipping
Similarity
Sale Range
