| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | T bolt |
| Minimum Order Quantity: | 5000pcs |
| Price: | Negociable |
| Packaging Details: | 25KG double-layer woven bag with fumigation-free wooden pallet |
| Delivery Time: | 15 - 30 work days after getting payement |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 500,000 pcs per month |
| Product Name: | Rail Bolt | Material: | 35#, 45# Etc |
|---|---|---|---|
| Grade: | 4.6, 4.8, 5.6, 8.8, 10.9 | Surface: | Plain(oiled), Black, Zinc, HDG |
| Sample: | Available | ||
| High Light: | railroad bolts,hexagon head bolt |
||

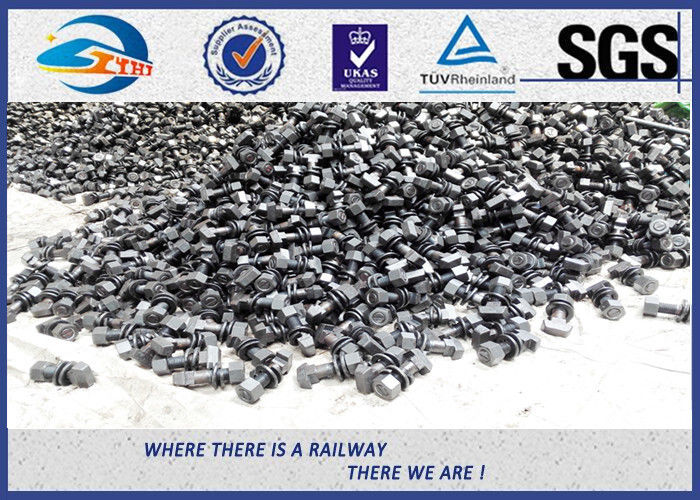

High Tensile Railway Track bolt
Railroad Grade 5.6 T Head Bolt
Track bolts are used to fasten rail ends together at a joint. The sizes of track bolts are varying with the requirements of the section of rail. The proper diameter and length of the track bolt can be determined by checking the applicable railway standard.
The track bolts can be classified into several types, such as, Button head oval neck track bolt, Diamond neck track bolt, Rail bolt NF F50-008, Fish bolt, Track bolt of Russian standard, Clip bolt, Clamp bolt and inserted bolt for Russia, , anchor bolt, T-bolt clamp and other special bolts, etc.
Application Criteria of Track Bolts
According to related rail standards, each joint needs to be bolted with at least two bolts in each rail tightened to approximately 400 foot-pounds of torque which develops between 25,000, and 30, 000 pounds of tension in the bolts.

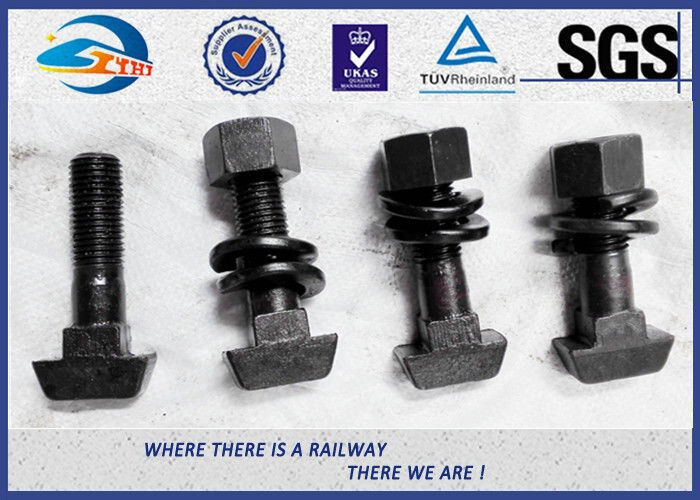

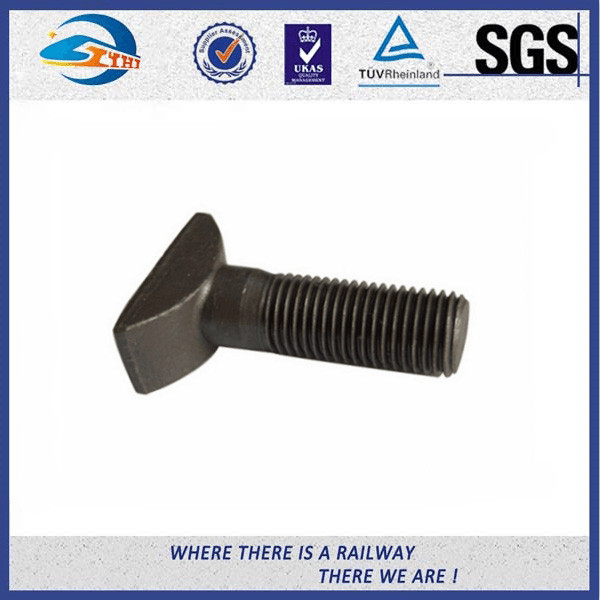

Zhonfyue T Bolt
Size: M22 L=55,65,75, and 90mm
Material: Q235, 35#, 45#
Standard: UIC864-2
Grade: 4.6, 5.6, 8.8,10.9
Surface: Zinc Plated,Hot Dip Galvanized,Plain Oiled
| Brand | Zhongyue | |||
| Name | railway Clip bolts | |||
| Type | Button head oval neck track bolt | |||
| Diamond neck track bolts | ||||
| Or the type by customers’ drawings | ||||
| Grade | 4.6 | 5.6 | 8.8 | 10.9 |
| Material | Q235 | 35# | 45# | 40Cr |
|
Mechanical properties |
Tensile strength: ≥400Mpa |
Tensile strength: ≥500Mpa |
Tensile strength: ≥800Mpa |
Tensile strength: ≥1000Mpa |
| Yield strength:≥240Mpa | Yield strength:≥300Mpa | Yield strength:≥640Mpa | Yield strength:≥900Mpa | |
| Elongation:≥22% | Elongation:≥20% | Elongation:≥12% | Elongation:≥9% | |
|
Cold bending: 90 degree without crack |
Cold bending: 90 degree without crack |
Cold bending: 90 degree without crack |
Cold bending: 90 degree without crack |
|
| Surface | plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | |||
|
Standard refers |
UIC864-2 | |||
Classification
Button Head Oval Neck Track Bolt
| Diameter | Length | Weight (Kg) |
| 1/2" | 1-3/4" | 0.097 |
| 1/2" | 2" | 0.10 |
| 1/2" | 2-1/4 | 0.112 |
| 5/8 | 2-1/2 | 0.183 |
| 3/4 | 3 | 0.328 |
| 3/4 | 3-1/2 | 0.339 |
| 3/4 | 4 | 0.356 |
| 7/8 | 4-1/2 | 0.559 |
| 7/8 | 5 | 0.593 |
| 1 | 5 | 0.8 |
| 1 | 5-1/2 | 0.839 |
| 1 | 6 | 0.879 |
| 1-1/16 | 6 | 0.995 |
| 1-1/8 | 6-1/2 | 1.186 |
Diamond Neck Track Bolts
| Diameter | Length | Weight (Kg) |
| 7/8 | 4-1/2 | 0.563 |
| 7/8 | 5-1/2 | 0.651 |
| 1 | 5-1/4 | 0.889 |
| 1 | 5-3/4 | 0.895 |
| Nominal Size | Thread Length | Bolt Length |
| 3/4 | 2 | 3-7/8 |
| 7/8 | 2-1/8 | 4-3/8 |
| 15/16 | 2-5/16 | 4-5/16 |
| 15/16 | 2-1/8 | 5 |
| 1 | 2-5/16 | 4-15/16 |
| 1 | 2-11/16 | 6-1/16 |

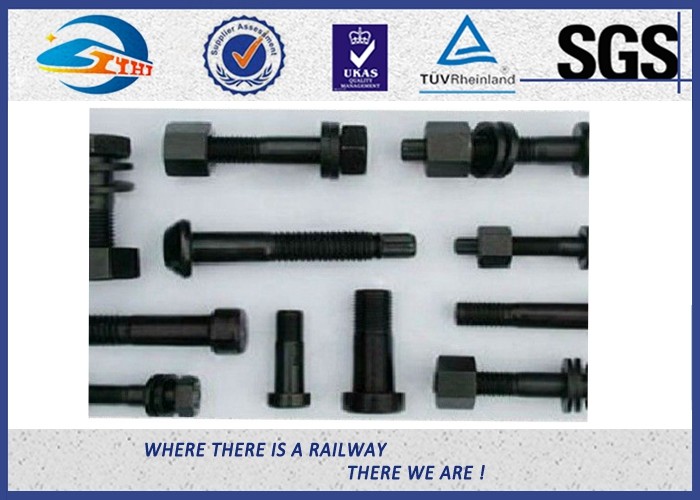

Other Bolts Available
For more information, welcome to contact us!
