| Product: | Rail Fastening System | Surface: | Plain Oiled, Oxide Black, Painted, Galvanized |
|---|---|---|---|
| Drawing: | Customized | Application: | Fastening System |
| OEM: | Available | Sample: | Available |
| High Light: | railway track fasteners,vossloh fastening system |
||

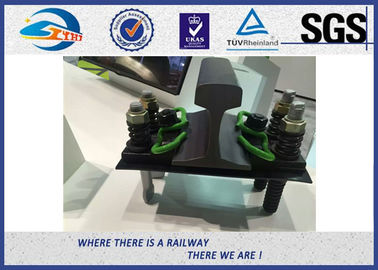

Vossloh Skl14 Tension Clamp/W14 Railway Fastening System/
SKL14 Elastic Rail Clip
One set of Vossloh fastening system contains
A) Tension clamp Skl14 -4 units;
B) Screw spike Ss 35/Uls 7 -4 units;
C) Angled Guide Plate Wfp-14K12 -4 units;
D) Plastic dowel -4 units;
E) Rail Pad Zw686a- 2 units;
F) Application: High-speed Lines
G) Customization: Available
Technical Parameters
| Part name | Type | Material | Finish | Remark |
| SKL14 tension clip | Dia. 13mm | 60Si2CrA, 38Si7 | Plain oiled, color painting, or the other required ones. | Hardness: 42-47HRC Fatigue test: When the clip spring deflection reaches 9.1mm and the swing deflection is 1.42mm, the fatigue life will be 5 millions cycles without breaking. Standard: DIN17221, GB/T1222 |
| Ss35 screw spike | M24×150mm M24 ×160mm M24×180mm |
Grade 4.6: Q235 Grade 5.6: 35# Grade 8.8: 45# |
Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized | Standard: ISO898-1, UIC864-1 and NF F500-50 |
| Plain washer | Uls7 | Q235 | Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized | Standard: EN10025, EN10139 |
| Plastic dowel | For different sizes of screw spike | HDPE, Reinforced Nylon 66 (PA66) | Black, blue, yellow, green or other color | For insert into concrete sleeper |
| Guide plate | UIC54, UIC60, 50kg rail, 60kg rail, and other sizes as ordered | Reinforced Nylon 66 (PA66) | Black, blue, yellow, green or other color | Different designs are available. |
| Rail pad | UIC54,UIC60, and size as ordered | EVA, or rubber | Black, blue, yellow, green or other color |
|
Produce Process
| Clip Production Process | |
| 1 | raw material |
| 2 | shearing |
| 3 | heating to forging temperature (950-1000 degrees celsius) |
| 4 | forming |
| 5 | hardening |
| 6 | tempering below 350 degrees celsius |
| 7 | inspection |
| 8 | packing |
Material Choice for SKL14 tension clamp: spring steel
Other SKL Series' Technical Parameter
| SKL Series | SKL1 | SKL3 | SKL12 | SKL14 |
| Material | 60Si2MnA | 60Si2CrA | 55Si2Mn | 38Si7 |
| Chemical composition(%) | C:0.56-0.64, | C:0.56-0.64, | C:0.52-0.60, | C:0.35-0.42, |
| Mn:0.60-0.90, | Mn:0.40-0.70, | Mn:0.60-0.90, | Mn:0.50-0.80, | |
| Si:1.60-2.00, | Si:1.40-1.80, | Si:1.50-2.00, | Si:1.50-1.80, | |
| Cr:≤0.35, | Cr:0.70-1.00 | Cr:≤0.35 | ||
| P:≤0.03, | P:≤0.03, | P:≤0.03, | P:≤0.03, | |
| S:≤0.03 | S:≤0.03 | S:≤0.03 | S:≤0.03 | |
| Hardness | 42-47HRC | |||
| Fatigue life | for Dia.18 is 3 millions cycles without breaking | |||
| for Dia.20 is 5 millions cycles without breaking | ||||
Surface Treatment
Inspection machine
Package
Application
Other Types
| Same series | SKL1 |
| SKL2 | |
| SKL3 | |
| SKL12 | |
| SKL14 | |
| General series | E type |
| Nabla type | |
| KP / KPO type | |
| Special series | PR type |
| Deenik type | |
| Russian type | |
| Fats clip | |
| Gauge lock clip |
