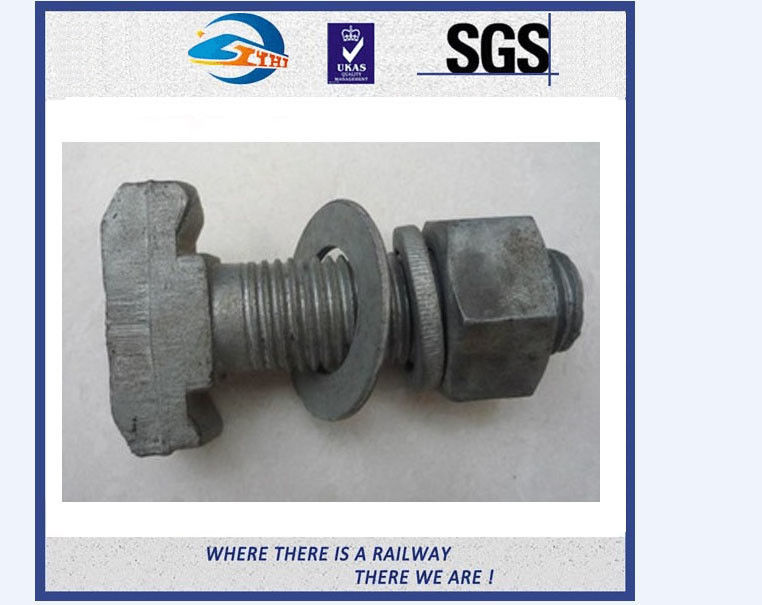

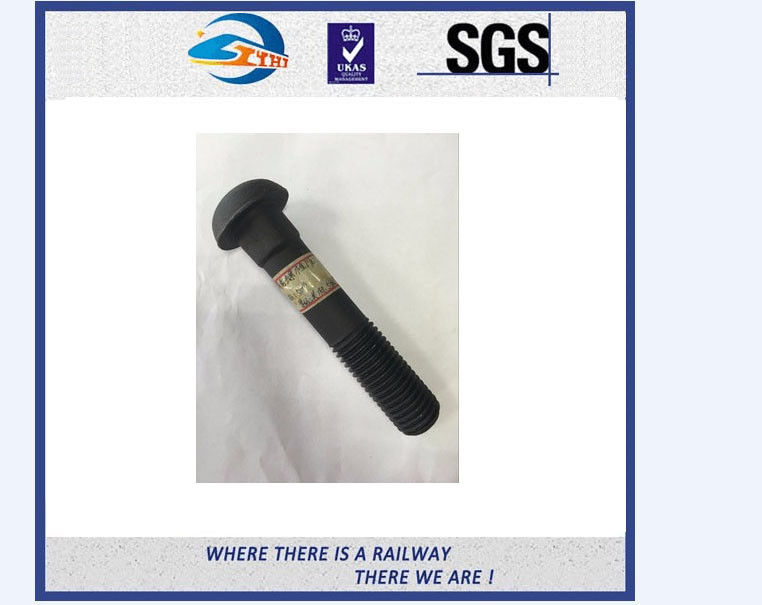

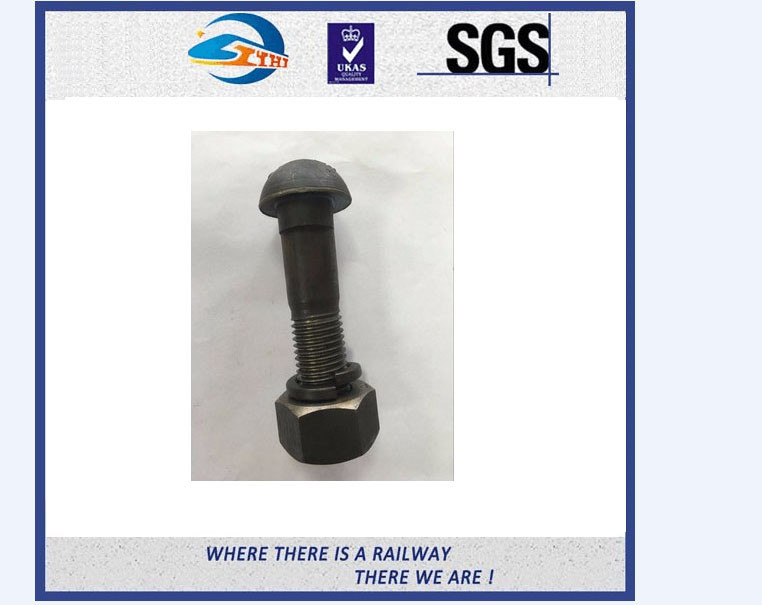

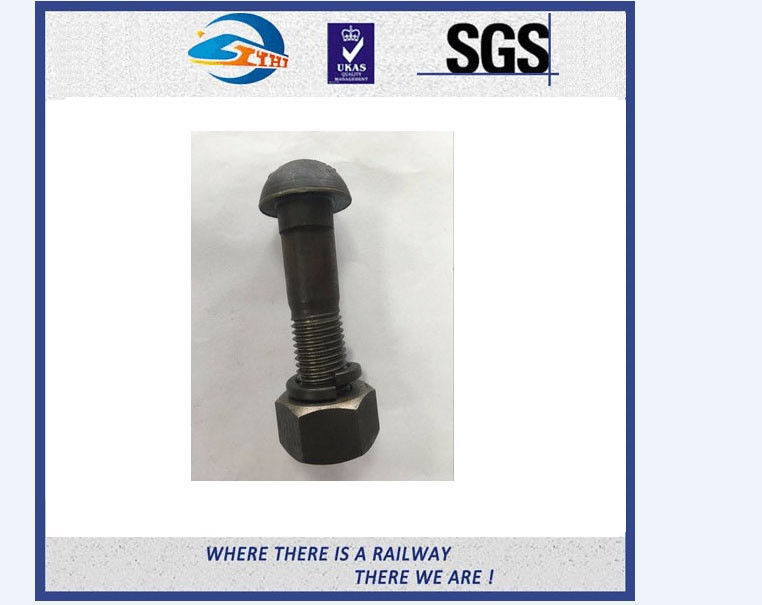

DIN304 railway hex nut and bolt on rails grade 8.8 / 10.9 / 12.9

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: Railway Bolt
Minimum Order Quantity: 5000pcs
Price: Negociable
Packaging Details: Plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 30 days after received your payment
Payment Terms: T/T, 30% in advance
Supply Ability: 500,000pcs per month
Product Name: DIN304 Railway Hex Nut And Bolt On Rails Grade 8.8 / 10.9 / 12.9 Material: Q235. 35#. 45#. 40Cr
Grade: 4.6 4.8 5.6 8.8 10.9. Main Surface Treatment: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet
Warranty: Two Years Certificate: ISO9001, SGS
High Light:

railroad bolts

,

hexagon head bolt

DIN304 railway hex nut and bolt on rails grade 8.8 / 10.9 / 12.9





Specifications:

Standard:DIN, JIS, ISO, ANSI, ASME, BS, AS

Grade:4.8/ 8.8/ 10.9/ 12.9

Dimensions:M8, M10, M12, M14, M16, M18, M20, M22, M24 and so on

Surface Treatment:Zinc-plated, Plain, Black Anodize, Dacroment




Item

head oval neck fish bolt


Type

Cup head oval neck fish bolt

Square head fish bolt

Bitish standard track bolt

Grade

4.6

5.6

8.8

10.9

Material

Q235

35#

45#

40Cr

Mechanical properties

Tensile strength:≥400Mpa

Tensile strength:≥500Mpa

Tensile strength:≥800Mpa

Tensile strength:≥1000Mpa

Yield strength:≥240Mpa

Yield strength:≥300Mpa

Yield strength:≥640Mpa

Yield strength:≥900Mpa

Elongation:≥22%

Elongation:≥20%

Elongation:≥12%

Elongation:≥9%

Cold bending:90 degree without crack

Cold bending:90 degree without crack

Cold bending:90 degree without crack

Cold bending:90 degree without crack

Surface

Plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing

Standard refers

AS, BS 64, DIN, AREMA/SAE,NF,JIS






Packing
65lbs bag+wooden pallet/wooden box;
The normal size of wooden pallet is 1100X840X580mm;,
The size of the wooden box could be made according to customer's specification or according to the products size.
