4 Holes 6 Holes Railway Joint Bar Railway Fish Plate SGS TUV ISO9001:2008

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: ASTM, DIN, BS, JIS, AS, NF, ISO, GB
Minimum Order Quantity: 1000pcs
Price: Negociable
Packaging Details: In bundle with fumigation-free wooden pallet
Payment Terms: T/T, 30% in advance
Supply Ability: 50,000 pcs/month
Product Name: Rail Fish Plate Standard: ASTM, DIN, BS, JIS, AS, NF, ISO, GB
Grade: 4.6.4.8.5.6.8.8.10.9. Material: Q235 .35#. 45#
High Light:

railroad fish plate

,

steel fish plates

4 Holes Or 6 Holes Railway Fish Plate Railroad Fish Plate

Specifications:

We deal in all types of fish plate, also known as joint bar, splice bar and angle bar. We have in-house rolling,

forging, machining, and drilling and punching facilities to ensure accurate rail fish plate size. We have the

capability to manufacture all types of rail fish plate to suit all types of rail sections, such as UIC 60, UIC 54,

U33, BS 80A, BS 90A, IRS 52 KG, IRS 90 Lbs, 115 RE, 136 RE, TJ 45, TJ 37, RN 45, etc. Our fish plates

are manufactured to international standards according to BS, ASTM and DIN, among others.



Brand Zhongyue
Name railway fish plate
Type Length /Diameter Weight(Kg) Material
115RE 4 hole- 24″ 17.04

45#



Chemical composition(%):

C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035







50#



Chemical composition(%):

C:0.62-0.70, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035

115RE 6 hole -36″ 25.56
132-136RE 4hole-24″ 17.75
132-136RE 6hole-36″ 26.63
UIC60 4 hole - 630/26 18.07
UIC60 4 hole-600/28 17.47
UIC60 4 hole - 630/25 18.1
UIC54 4hole 14.34
UIC54 6hole- 800 19.94
BS80A 4hole 6.5
BS90A 685.8 / 26 13.23
BS90A 792.9/26 .2 15.34
90/91LB 4 hole 18.08
90/91LB 6hole 19.9
50Kg 4hole 14.3
50Kg 6hole 19.5
BS75R 4hole 6.56
BS60A 4hole 5.61
S49 4 hole 9.71

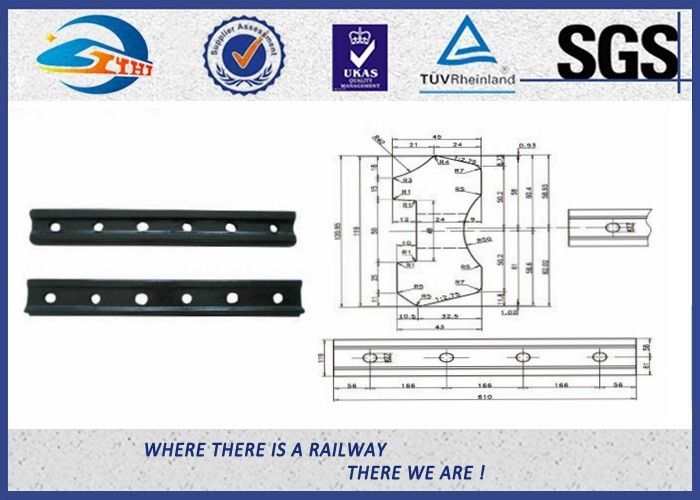

4 Holes 6 Holes Railway Joint Bar Railway Fish Plate SGS TUV ISO9001:2008 0



Normal Fish Plate
We offer 4 holed or 6 holed fish plate to suit 60 kg, UIC, 54 kg UIC, 52 kg UIC, 52 kg, 90A, 90R, 80A,

80'O', 88'O', 75R, 60R, 115 RE, 132 RE, 50R rails, etc.



Joggled Fish Plate


This product is a specially forged fish plate. It is suitable for the temporary repair of cracked welded rail

joints with clamp assembly to suit various rail sections. Used as an emergency clamp, joggled fish plate

enables quick and temporary repair, allowing continued movements through the section at a reduced line

speed. They are readily available in a considerable quantity at all times.



Combination/Compromise Fish Plates


We produce specially designed fish plates to join two different rail sections of rail tracks for various

customers when they require them.



Adhering to our quality first policy, SUYU pays great attention to quality control management on our rail

fish plate. We have been granted ISO9001-2008 certificates and have received the production license

of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all

our rail fish plates are of high quality and up to customers' requirements.



As a leading manufacturer of rail fastening based in China, SUYU also produces many other railway

fasteners, such as track bolt, sleeper screw, track spike, tie plate, rail clip, elastic rail clip, SKL tension

clamp, rail shoulder, and so on.


Production Process


4 Holes 6 Holes Railway Joint Bar Railway Fish Plate SGS TUV ISO9001:2008 1




Package


4 Holes 6 Holes Railway Joint Bar Railway Fish Plate SGS TUV ISO9001:2008 2


4 Holes 6 Holes Railway Joint Bar Railway Fish Plate SGS TUV ISO9001:2008 3
IF YOU NEED MORE PRODUCT INFORMATION PLEASE CONTACT ME.
Contact: Janet Jiang zy15@zyrail.com

Our main products:
Plastic and rubber pads, EVA pad, HDPE pad, dog spike, screw spike, railway bolt and nut, washer, rail clip, rail shoulder, crane rail, fish plate, base plate, crane rails and so on.

4 Holes 6 Holes Railway Joint Bar Railway Fish Plate SGS TUV ISO9001:2008 4

About us



Founded in 2003, Suyu is the largest railway fastener manufacturer in China. We are committed to providing our global customers with high quality and economically priced railway fastener products, including our rail sleeper screw, rail spike, railway bolt, and elastic rail clip.
With certificates SGS, TUV, ISO9001-2008, we supply our products, to famous companies such as VAE, and Hilti. In Suyu Group, quality control management is always a priority at Suyu. We welcome costomers all around the world to visit our factory and our office.


Welcome to Visit Our Factory!

4 Holes 6 Holes Railway Joint Bar Railway Fish Plate SGS TUV ISO9001:2008 5
