| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | E Type |
| Minimum Order Quantity: | 10000sets |
| Price: | Negociable |
| Packaging Details: | Plastic bags and wooden pallets or according to clients' requirement |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 500,000pcs per month |
| Product Name: | Elastic Rail Clip | Application: | Railway |
|---|---|---|---|
| Type: | E Type, SKL Type, Or The Type By Customers’ Drawings | Material: | 60Si2MnA, 60Si2CrA, 55Si2Mn, 38Si7 |
| Surface: | Plain (oiled), Oxide Black, Color Painting | Standard: | DIN17221, BS970, GB/T1222 |
| Package: | Wooden Box | Dimensions (L X W X H) (mm): | Standard |
| High Light: | railway clips,spring steel clips |
||

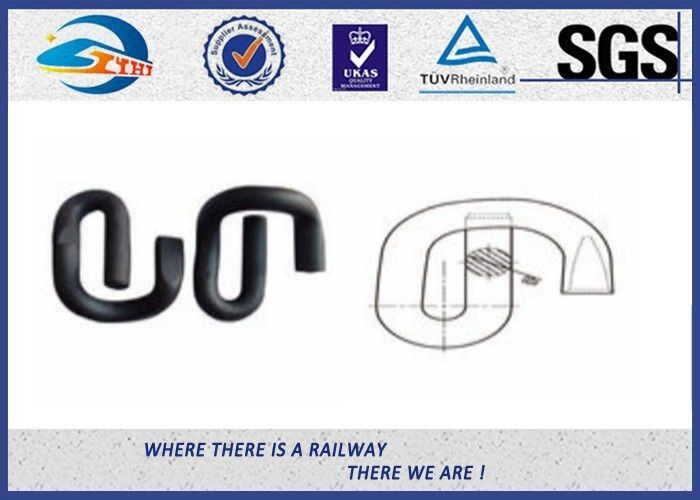

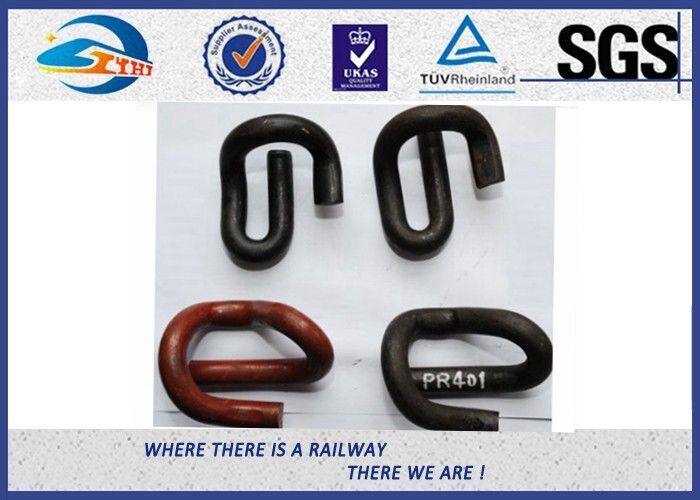

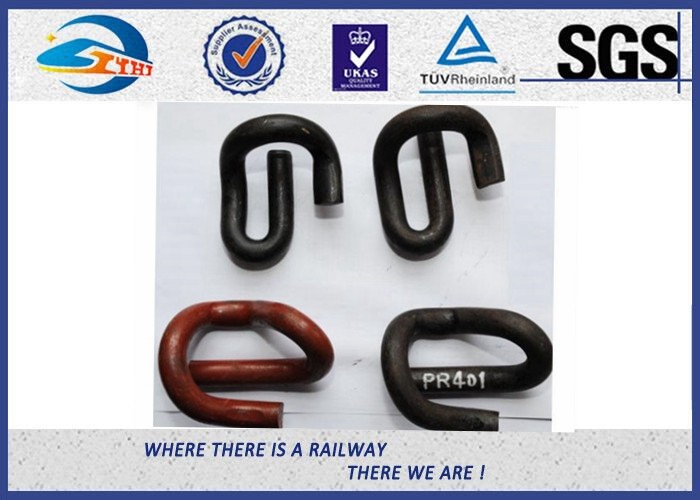

E Elastic Rail Clips 60si2mna Railroad Fast Clip DIN17221 BS970 GB / T1222
Specifications:
We are engaged in manufacturing and supplying elastic rail clip products which are exclusively used in
railways. Fabricated with optimum quality raw materials, these elastic rail clips are designed with high
precision which impart high tensile strength and corrosion resistance. Our products can also be
customized according to clients' requirement at a client desired price.
Universally accepted in the railway industry, elastic rail clip provides high performance clamping of the rail,coupled with ease of installation.
As out of patent technology from both manufacturers (DP and Vossloh) has become available to the
general supply market, Zhongyue has linked up with reputable quality manufacturers to offer a cost
effective range of elastic rail clip to suit many rail sections and applications as well as selected SKL tension clamp.
Strict dimensional control, as well as the use of high quality spring steel, ensure that the elastic rail clip
and other elastic railway fastenings supplied by SUYU are within specified ranges aimed at meeting
customer requirements.

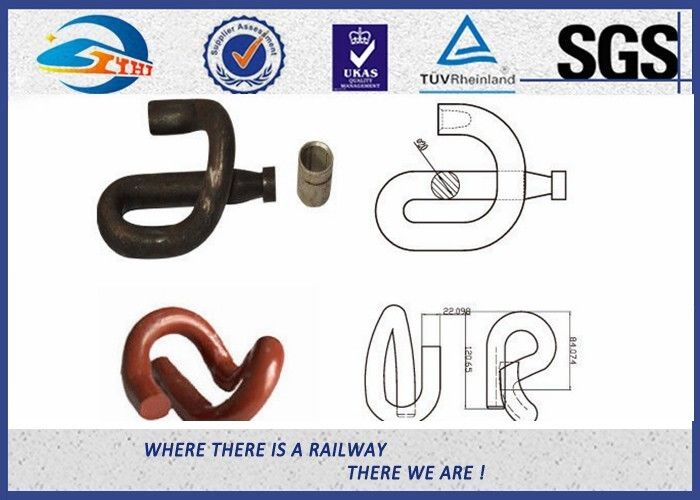

Technical Specifications of the Elastic Rail Clip
|
Diameter |
Weight (Kg) |
Toe Load |
|
12mm |
0.18 |
200-400 |
|
14mm |
0.30 |
400-600 |
|
16mm |
044 |
500-700 |
|
18mm |
0.60 |
800-1000 |
|
20mm |
0.78 |
1100-1400 |
When spring steel deflection is 9.1mm, fatigue life is up to 5 million cycles without breaking.
Material: 60Si2MnA

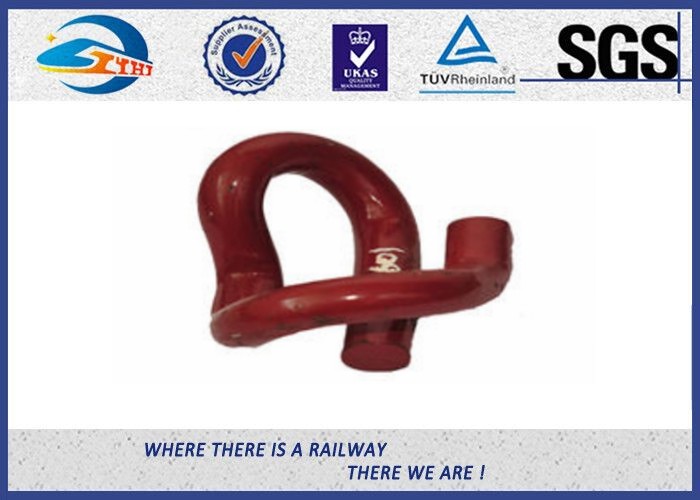

Surface: Plain, black painting, red painting
MOQ: 5000PCS
Packing: Plastic bags and wooden pallets or according to clients' requirement
