Glass Fiber Reinforced Polyamide Angle Guide Plate Insulator for Railway Fastening Systems

20000
MOQ
Glass Fiber Reinforced Polyamide Angle Guide Plate Insulator for Railway Fastening Systems
Features Gallery Product Description Chat Now
Features
Specifications
Material: PA66 + 30-35% Glass Fiber
Tensile Strength: ≥170 MPa
Insulation Resistance: ≥1×10⁸ Ω
Feature: Force Transmission, Tilting Protection
Gauge Adjustment: ±10mm
Application: SKL Fastening System
Highlight:

Glass Fiber Reinforced Polyamide Guide Plate

,

Force Transmission Guide Plate

,

Electrical Insulation Railway Spacer
Basic Infomation
Place of Origin: China
Brand Name: Sudelan
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: Wooden Cases/Pallets+Woven Bags
Payment Terms: L/C,D/A,D/P,T/T
Product Description

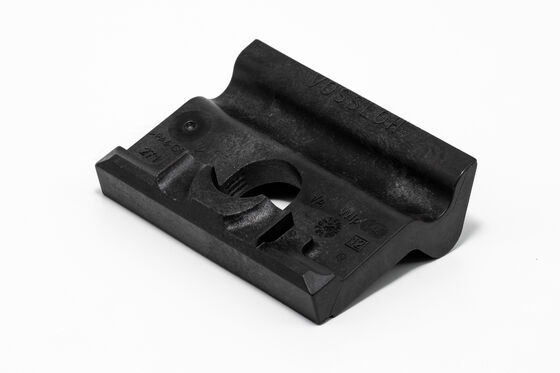

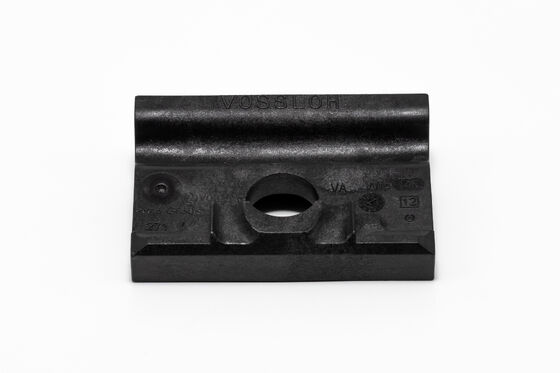

Angle Guide Plate
A plastic angle guide plate (also known as rail insulator, nylon insulator, or railway spacer) is a critical component in railway fastening systems. It is installed under tension clamps in SKL fastening systems, working together with screw spikes, plastic dowels, flat washers, and rail pads.
Key Functions
  • Force Transmission: The angled design guides forces from the rail into the base plate and then into the concrete, preventing screw-dowel combinations from being loaded by shearing and bending forces
  • Tilting Protection: The design provides additional support to prevent rail tilting
  • Gauge Adjustment: Different widths of angle guide plates can regulate the track gauge, allowing for ±10mm track adjustment
  • Electrical Insulation: Provides high electrical insulation for the rail signal system
Material Specifications
Angle guide plates are made from glass fiber reinforced polyamide (PA66/Nylon 66 with 30-35% glass fiber content).
Property Specification
Density 1.3-1.45 g/cm³
Tensile Strength ≥170 MPa
Bending Strength ≥250 MPa
Impact Strength ≥80 kJ/m²
Melting Point 250-270°C
Insulation Resistance ≥1*10⁸ Ω
