Russian Customized Elastic Rail Clips Steel Plain in Track System

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: Russian clip
Minimum Order Quantity: 10000sets
Price: Negociable
Packaging Details: 25kg double-layer bag, 36bags/pallet, 24pallets/container or as your request
Delivery Time: 15 - 30 work days after getting payement
Payment Terms: T/T, 30% in advance
Supply Ability: 500,000 pcs per month
Manufacturer: Zhongyue Railway Material Co.,ltd. Material: 60Si2MnA
Surface: Plain (oiled), Oxide Black, Color , Galvanized Drawing: Designed From Client
Market: Russia
High Light:

railway clips

,

spring steel clips

Russian Customized Elastic Rail Clips Steel 60Si2MnA Plain in Track System


Commercial NameOther steel materials for railway tramway tracks

Brand: Zhongyue

SupplierZhongyue Railway Material Co.,ltd.

Address: No#199 Huanlou Road Kunshan Jiangsu P.R China

HS Code: 73029 09000

Rail fastening system

  Russian clip system
1 Rail clip
2 Rail shoulder
3 Insulator
4 Rail pad

 Russian Customized Elastic Rail Clips Steel Plain in Track System 0

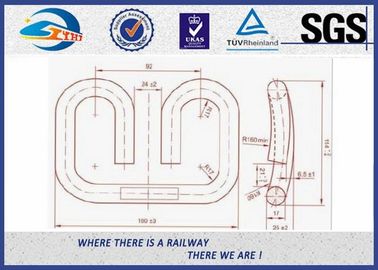

Drawing  (E2009 as a sample)

Mark factor

  1. Model name
  2. Material
  3. Surface treatment
  4. Full size

Russian Customized Elastic Rail Clips Steel Plain in Track System 1


Character

  1. Few, Sample Compoents
  2. Long Working Life
  3. High Safety Level
  4. Used In Turnouts And Crossing
  5. Virtually Maintenance Free
  6. No Threads To Strip Or Corrode



Produce Process



Clip Production Process
1 raw material
2 shearing
3 heating to forging temperature (950-1000 degrees celsius)
4 forming
5 hardening
6 tempering below 350 degrees celsius
7 inspection
8 packing



Russian Customized Elastic Rail Clips Steel Plain in Track System 2



Material Choice: spring steel

  1. 60Si2MnA
  2. 60Si2CrA
  3. 55Si2Mn
  4. 38Si7

Technical Parameter Table of Material

SKL Series SKL1 SKL3 SKL12 SKL14
Material 60Si2MnA 60Si2CrA 55Si2Mn 38Si7
Chemical composition(%) C:0.56-0.64,  C:0.56-0.64,  C:0.52-0.60,  C:0.35-0.42,
Mn:0.60-0.90,  Mn:0.40-0.70,  Mn:0.60-0.90,  Mn:0.50-0.80,
Si:1.60-2.00,  Si:1.40-1.80, Si:1.50-2.00, Si:1.50-1.80,
Cr:≤0.35,  Cr:0.70-1.00  Cr:≤0.35
P:≤0.03,  P:≤0.03,  P:≤0.03,  P:≤0.03,
S:≤0.03 S:≤0.03 S:≤0.03 S:≤0.03
Hardness 42-47HRC
Fatigue life for Dia.18 is 3 millions cycles without breaking
for Dia.20 is 5 millions cycles without breaking



Surface Treatment

  1. plain (oiled)
  2. color paint
  3. oxide Black (most choice)
  4. galavazing
  5. DHG

Russian Customized Elastic Rail Clips Steel Plain in Track System 3



Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine


Package

  1. 25 kg double-layer woven bag with free fumigation wooden pallent
  2. 36bags/pallets
  3. 20pallets/20ft


Application


Russian Customized Elastic Rail Clips Steel Plain in Track System 4


Similar Elastic Clip



Same series SKL1
SKL2
SKL3
SKL12
SKL14
General series E type
Nabla type
KP / KPO type
Special series PR type
Deenik type
Russian type
Fats clip
Gauge lock clip


Russian Customized Elastic Rail Clips Steel Plain in Track System 5



Sale Range

  1. Rail fastening system
  2. Dog spike / Screw spike
  3. Bolt set
  4. Elastic clamp
  5. Rail anchor
  6. Rail shoulder
  7. Fish plate
  8. Tie plate
  9. Plastic / Rubber parts
  10. Brake shoe
  11. Steel rail
  12. New wood sleeper


Quotation necessity (
the more, the better )

  1. Drawing with full size
  2. Material
  3. Surface Treatment
  4. Order quantity


If you have any other models of rail/ rail fastener, do not hesitate to contact me.
