| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | DP Clip, Vossloh W clip, Nabla blade, fast clip, fist clip... |
| Minimum Order Quantity: | 10000sets |
| Price: | Negociable |
| Packaging Details: | 25KG double-layer woven bag with fumigation-free wooden pallet. |
| Delivery Time: | 25 days after deposit |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 200,000 pcs per month |
| Application: | Track Fastening | Sample: | Free |
|---|---|---|---|
| OEM: | Acceptable | Material: | 60Si2MnA, 60Si2CrA, 55Si2Mn, 38Si7.. |
| Finish: | Plain & Oiled, Painting, Black, Zinc Plate, HDG | Origin: | Suzhou, China |
| High Light: | railway clips,spring steel clips |
||
Nabla Elastic Rail Clips in fastening systems , E clip / Skl Clip
Elastic Rail Clip in Fastening System

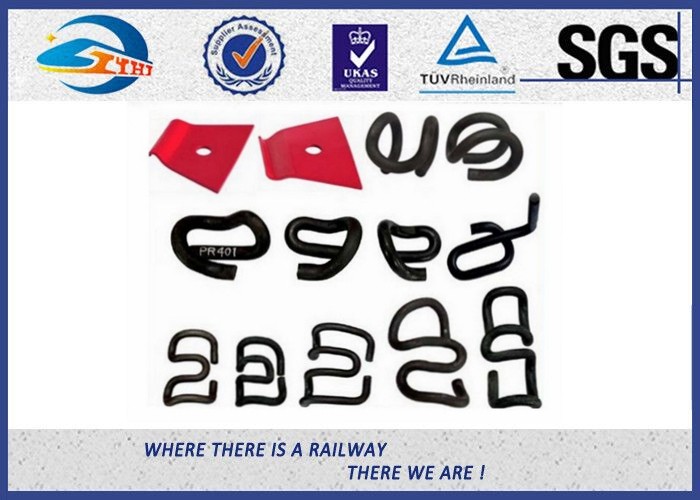

Shanghai Suyu Railway Material Co., Ltd produce kinds of Elastic rail clip fastening systems. Below are our main products:

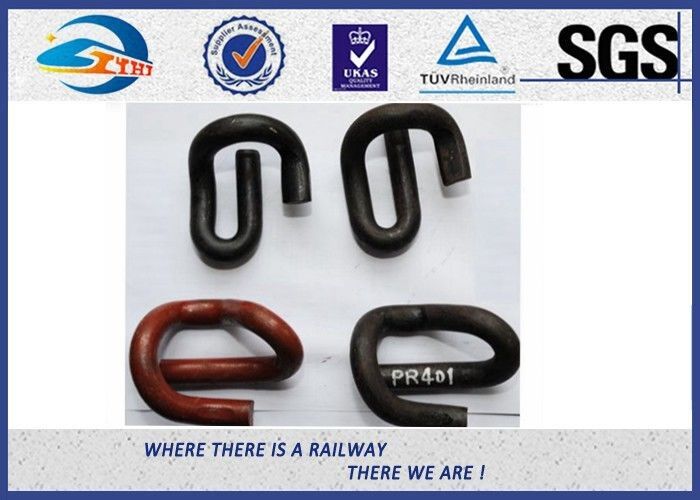

1. E type Railway fastening system:
E clip, Insulator, Shoulder, Rail pad.

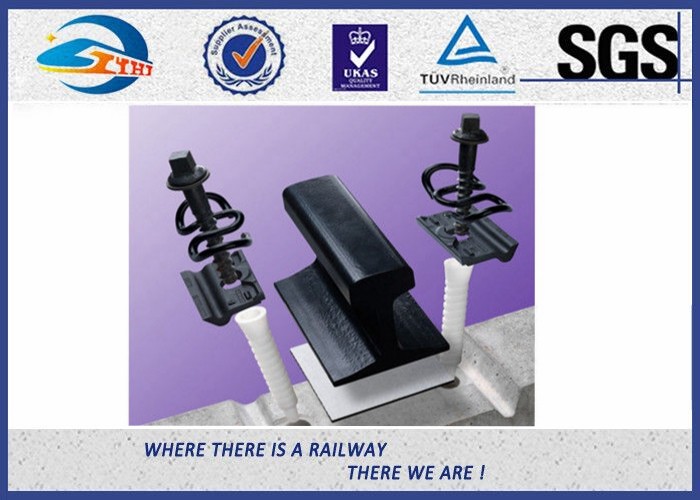

2. Vossloh type Railway fastening system:
Tension clip: SKL14, SKL12, SKL1, SKL3, SKL2...
Spike, Plain washer, Plastic dowel, Guide Plate.

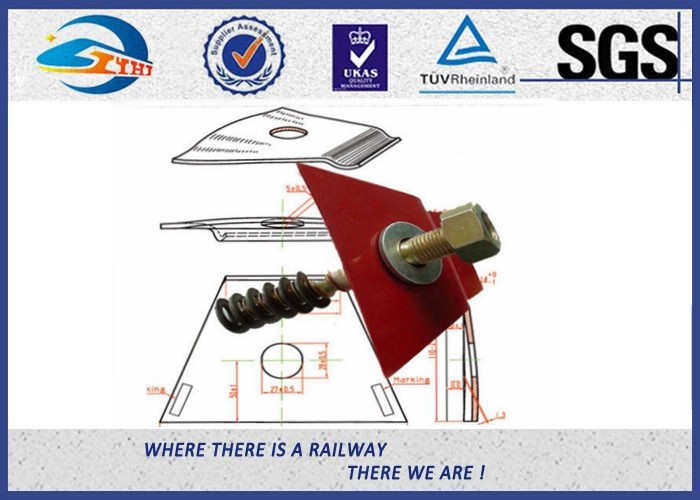

3. Nabla Railway fastening system :
Nabla blade, Insulator, double end screw spike, Special spring washer, Hex nut, Plainwasher.
4. KPO type Railway fastening system:
KPO clamp, Hs bolt, Hex nut, Double coil spring washer, Screw spike, Base plate.
Zhongyue has specialized in manufacturering of Railway Fasteners to suit many rail sections and applications.
Material Specifications:
| Material | 60Si2MnA | 60Si2CrA | 55Si2Mn | 38Si7 |
|
Chemical composition(%) |
C:0.56-0.64 | C:0.56-0.64 | C:0.52-0.60 | C:0.35-0.42 |
| Mn:0.60-0.90 | Mn:0.40-0.70 | Mn:0.60-0.90 | Mn:0.50-0.80 | |
| Si:1.60-2.00 | Si:1.40-1.80 | Si:1.50-2.00 | Si:1.50-1.80 | |
| Cr:≤0.35 | Cr:0.70-1.00 | Cr:≤0.35 | P:≤0.03 | |
| P:≤0.03 | P:≤0.03 | P:≤0.03 | S:≤0.03 | |
| S:≤0.03 | S:≤0.03 | S:≤0.03 |
We are qualified supplier for Germany Railways, US Railways, Kazakhstan Railways, Zambia Railways, Thailand Railways, Indonesia Railways, Etc.
