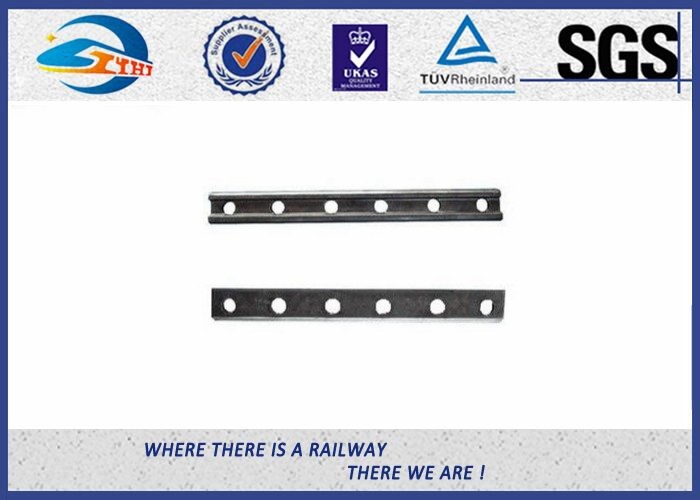

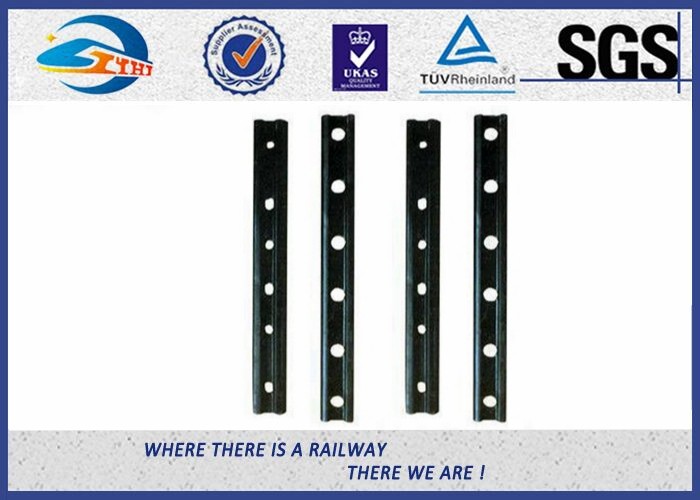

Oxide Black 132RE 6 holes Railway Fishplate 45# Steel / Railroad Fish Plate

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: 132RE
Minimum Order Quantity: 1000pcs
Price: Negociable
Packaging Details: 25kg/woven bag, 36bags/pallet, 24 pallent/container
Delivery Time: 25 to 40 days according your order quantity
Payment Terms: T/T, 30% in advance
Supply Ability: 10,000pcs per week
Material: 50# Application: Rail Joints
Surface: Plain, Oiled, Oxide Black, Color Painting Sample: Available
Customization: Acceptable Types: 4 Holes, 6 Holes
Technology: Forging
High Light:

rail joint bar

,

steel fish plates

Oxide Black 132RE 6 holes Railway Fishplate 45# Steel / Railroad Fish Plate​

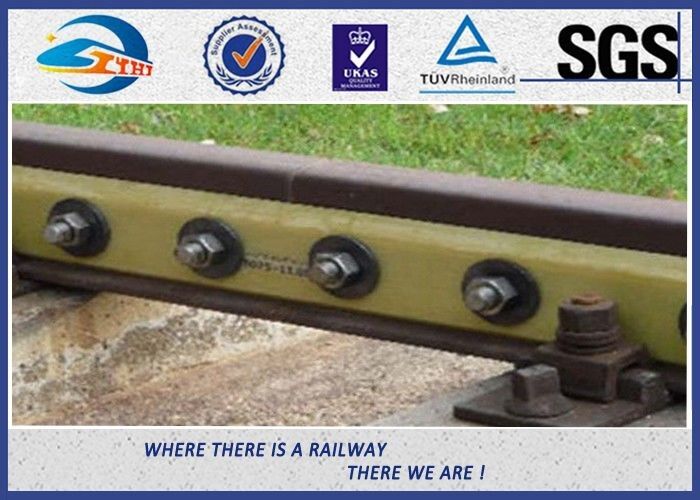

In rail terminology, a fishplate, splice bar or joint bar is a metal bar that is bolted to the ends of two rails to join them together in a track. The name is derived from fish, a wooden bar with a curved profile used to strengthen a ship's mast.[1] The top and bottom edges are tapered inwards so the device wedges itself between the top and bottom of the rail when it is bolted into place.[2] In rail transport modelling, a fishplate is often a small copper or nickel silver plate that slips onto both rails to provide the functions of maintaining alignment and electrical continuity.

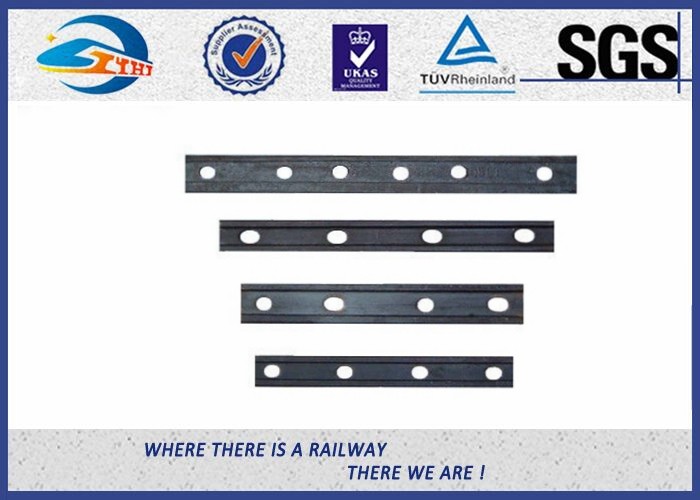

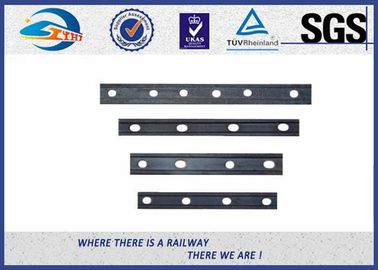

We offer 4 holed or 6 holed fish plate to suit 60 kg, UIC, 54 kg UIC, 52 kg UIC, 52 kg, 90A, 90R, 80A, 80'O', 88'O', 75R, 60R, 115 RE, 132 RE, 50R rails, etc.



Combination/Compromise Fish Plates


We produce specially designed fish plates to join two different rail sections of rail tracks for various customers when they require them.



Type

Length /Diameter

Weight(Kg)

Material

115RE

4 hole- 24″

17.04

45#



Chemical 'composition(%):

 C:0.42-0.50,

Mn:0.50-0.80,

Si:0.17-0.37,

Cr:≤0.25,

P:≤0.035,

S:≤0.035







50#



Chemical

composition(%):

C:0.62-0.70,

Mn:0.50-0.80,

Si:0.17-0.37,

Cr:≤0.25,

P:≤0.035,

S:≤0.035

115RE

6 hole -36″

25.56

132-136RE

4hole-24″

17.75

132-136RE

6hole-36″

26.63

UIC60

4 hole - 630/Ø26

18.07

UIC60

4 hole-600/ Ø 28

17.47

UIC60

4 hole  - 630/ Ø 25

18.1

UIC54

4hole

14.34

UIC54

6hole- 800

19.94

BS80A

4hole

6.5

BS90A

685.8 / Ø 26

13.23

BS90A

792.9/ Ø 26 .2

15.34

90/91LB

4 hole

18.08

90/91LB

6hole

19.9

50Kg

4hole

14.3

50Kg

6hole

19.5

BS75R

4hole

6.56

BS60A

4hole

5.61

S49

4 hole

9.71



Oxide Black 132RE 6 holes Railway Fishplate 45# Steel / Railroad Fish Plate 0Oxide Black 132RE 6 holes Railway Fishplate 45# Steel / Railroad Fish Plate 1Oxide Black 132RE 6 holes Railway Fishplate 45# Steel / Railroad Fish Plate 2
